Panduit DNFR18205FIB-KD. Connector contacts plating: Tin, Connector gender: Female, Product colour: Red. Height: 14.5 mm. Quantity per pack: 1500 pc(s)

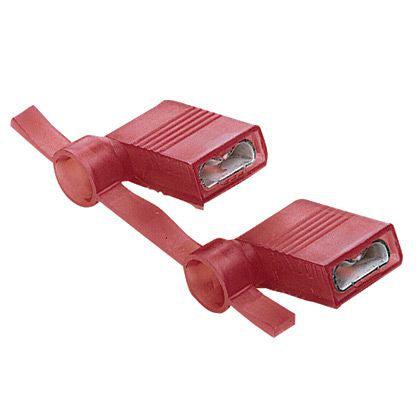

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.187/0.205 x 0.032 (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.57" (14.5 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in reels of 1500 pieces.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNFR18205FIB-KD
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983789573
Product Color
Red
Width
0.4"
Weight (Approximate)
15.20 lb
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
