Panduit DNFR14-250B-M. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 19.8 mm. Quantity per pack: 1000 pc(s)

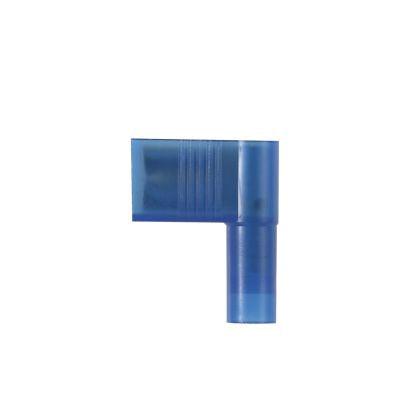

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long, 0.36" (9.1 mm) wide, and has a depth of 0.63" (16.0 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in boxes of 1000.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNFR14-250B-M
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983826629
Product Color
Blue
Width
0.4"
Weight (Approximate)
10.08 oz
Features
Right-angled Connector
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
