Panduit DNFR14-205FIB-L. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 14.7 mm. Quantity per pack: 50 pc(s)

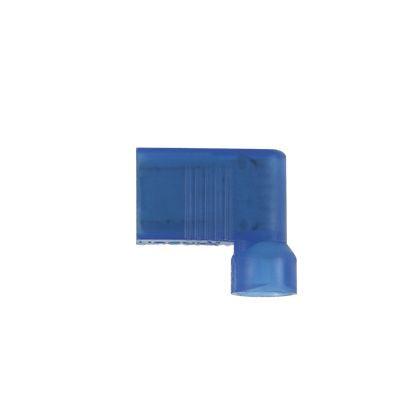

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon and has a funnel entry with insulation support. It has a tab size of 0.205/0.187 x 0.032" (5.2/4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNFR14-205FIB-L
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983120260
Product Color
Blue
Width
0.4"
Weight (Approximate)
15.20 lb
Features
Right-angled Connector
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
