Panduit DNF18206FIBX-2K. Connector contacts plating: Tin, Connector gender: Female, Product colour: Red. Height: 22.1 mm. Quantity per pack: 2000 pc(s)

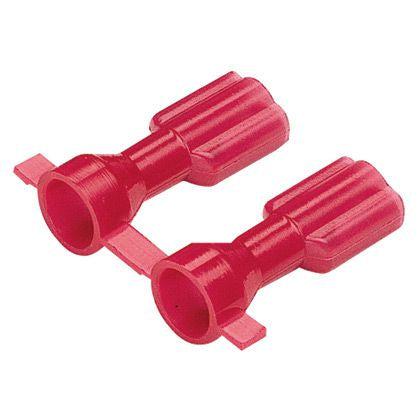

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing with an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded configuration and a butted seam barrel. It comes in reels of 2000 pieces.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF18206FIBX-2K
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983827763
Product Color
Red
Width
0.3"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
