Panduit DNF18-250FIB-3K. Connector contacts plating: Tin, Connector gender: Female, Product colour: Red. Height: 21.3 mm. Quantity per pack: 3000 pc(s)

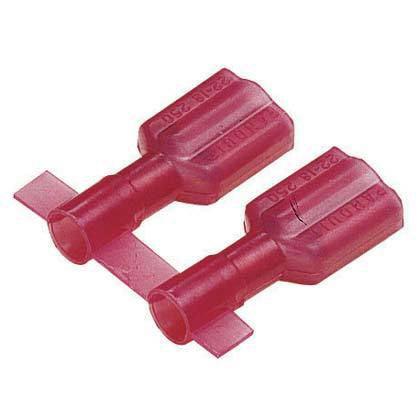

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF18-250FIB-3K
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983826902
Product Color
Red
Width
0.4"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
