Description

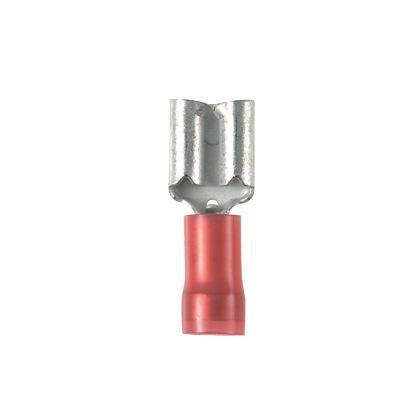

DNF18-206-M Loose Piece Disconnect
Panduit DNF18-206-M. Connector contacts plating: Tin, Connector gender: Female, Product colour: Red. Height: 19.3 mm. Quantity per pack: 1000 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF18-206-M
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983826438
Product Color
Red
Width
0.3"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
