Panduit Dnf14250Fibx-L Electrical Terminals

DNF14250FIBX-L Loose Piece Disconnect

Panduit DNF14250FIBX-L. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 23.6 mm. Quantity per pack: 50 pc(s)

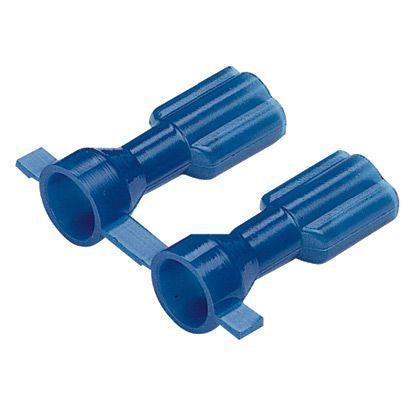

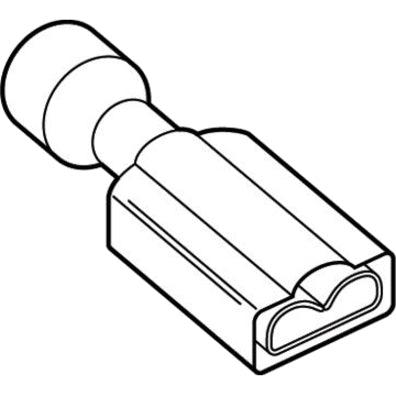

The vibration resistant female tab disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon standard receptacle housing and has an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.93" (23.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has an expanded barrel configuration and a butted seam barrel. It comes in bottles of 50.
