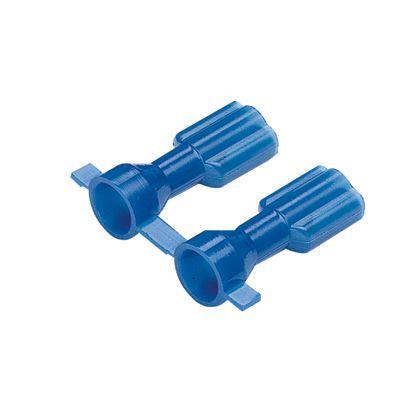

Panduit DNF14205FIBX-2K. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 22.1 mm. Quantity per pack: 2000 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, standard receptacle housing and has an expanded wire entry area for wires with large outside diameters. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.87" (22.1 mm) long and 0.31" (7.9 mm) wide. The disconnect has an expanded barrel configuration and butted seam barrel. It comes in reels of 2000 pieces.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF14205FIBX-2K
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983827800
Product Color
Blue
Width
0.3"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
Roll over image to zoom inClick on image to zoom
/
