Panduit DNF14-250FIB-E. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 21.3 mm. Quantity per pack: 20 pc(s)

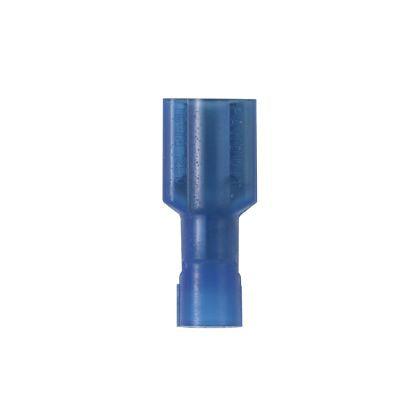

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF14-250FIB-E
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983341924
Product Color
Blue
Width
0.4"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
