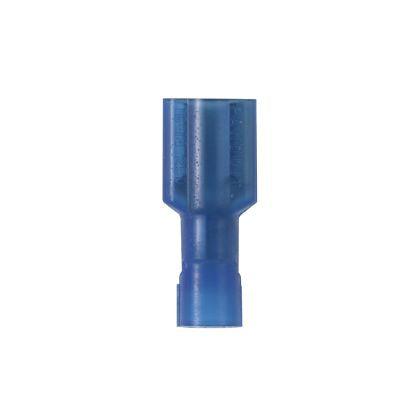

Panduit DNF14-187FIB-M. Connector contacts plating: Tin, Connector gender: Female, Product colour: Blue. Height: 19.8 mm. Quantity per pack: 1000 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF14-187FIB-M
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983759842
Product Color
Blue
Width
0.3"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
