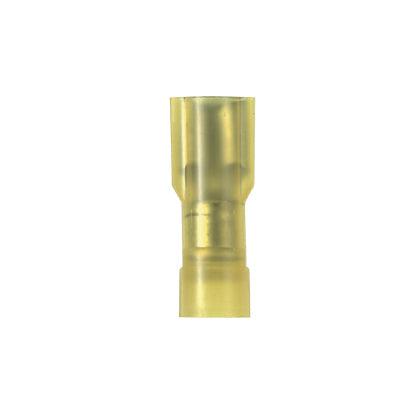

Panduit DNF10-250FIB-D. Connector contacts plating: Tin, Connector gender: Female, Product colour: Yellow. Diameter: 8.9 mm, Height: 24.4 mm. Quantity per pack: 500 pc(s)
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a yellow, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 500.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
DNF10-250FIB-D
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Name
Terminal Connector
Product Type
Terminal Connector
UPC
0074983740536
Product Color
Yellow
Width
0.4"
Features
Flame Retardant
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
