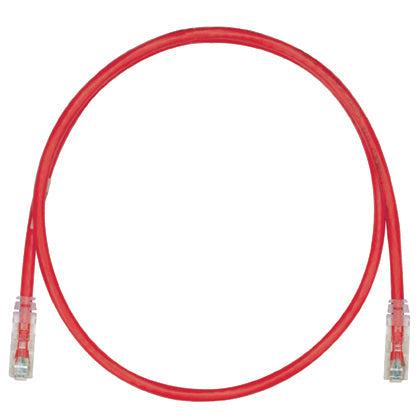

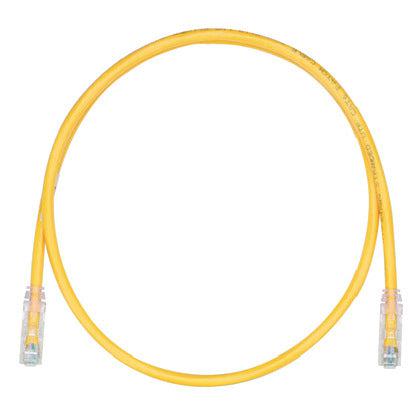

- TX6™ PLUS Patch Cords are available in standard, keyed and bulkhead versions for unshielded installations and various flammability ratings (CM, LSZH, Dual Rated (CM/LSZH) - All TX6™ PLUS Patch Cords exceed requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E channel standards and ANSI/TIA-568-C.2 Category 6 and IEC 61156-5 Category 6 component standards; IEEE 802.3af and IEEE 802.3at for PoE applications; modular plugs meet all applicable ANSI/TIA/EIA-1096-A requirements and exceeds IEC 60603-7 specifications - Category 6 performance 28 AWG UTP Patch Cords feature 0.150” (3.8mm) nominal cable O.D. patch cable which is ideal for use in high density installations and - Labels on patch cords provide identification of performance level, length, and quality control number - Patented tangle-free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes - Optional accessories such as patch cord color bands snap on and off individual patch cables offering endless color-coding options; optional RJ45 plug lock-in device blocks unauthorized removal of cable, IP phone, other networking equipment, or critical connection - Keystone compatible patch cords are available for unshielded installations and meet industry standards - All patch cords are offered in a variety of standard colors and lengths for design flexibility
Length Availability: Foot length Patch Cords available in the Americas. Meter length patch cords available in Europe, Middle East, Africa and Asia Pacific.
Flammability Rating Availability: LSZH flame rating available in Europe, Middle East, Africa and Asia Pacific. CM and Dual rated (CM/LSZH) flame ratings available globally.
