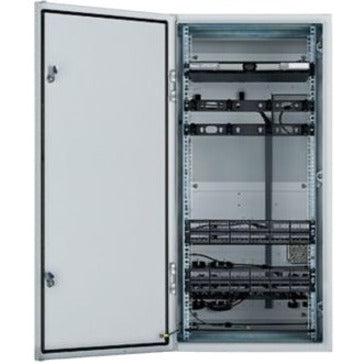

Panduit 316 Stainless Steel Enclosure - For LAN Switch, Patch Panel - 26U Rack Height x 19" Rack Width - Wall Mountable - Light Gray - Stainless Steel - 350.09 lb Maximum Weight Capacity
Rack mount Ethernet switches shall be deployed and protected with an industrial distribution frame (IDF) enclosure which meets UL 508A, UL Type 4/12 or 4/4X/12 and IP66. The IDF shall be thermally and spatially validated for use in environments up to 50°C. There shall be a wall mount option with secure front and rear switch access. The IDF shall accommodate two distribution layer switches and up to three access layer switches with UPS for commonly used copper and fiber based deployments. Optimized power cables, receptacles and grounding shall be pre-installed in the enclosure. A standardized, pre-configured equipment and accessory layout shall be included.
General Information
Manufacturer
PANDUIT CORP
Manufacturer Part Number
ZDF48-6RA
Manufacturer Website Address
http://www.panduit.com
Brand Name
Panduit
Product Series
IDF
Product Name
316 Stainless Steel Enclosure
Product Type
Rack Cabinet
Product Color
Light Gray
Height
48.5"
Width
23.6"
Depth
31"
Miscellaneous
Package Contents
1 x Square Hole Front and Rear Rack Angles
1 x FRME1U Fiber Enclosure
2 x CPPL48WBLY 48-port Patch Panel
2 x CMPHF1 Cable Management
1 x RGRB19CN Grounding Bar
3 x Equipment Ground Whips
1 x 10" DIN Rail
2 x Fiber Spools
2 x Back Panels
2 x ESD Ports, 30" Length of Duct
2 x Duplex, Power Receptacles
Cage Nuts
Labeling for Cable Routing
Strain Relief Bars
4 x Power Cables
1 x ESD Wrist Strap
1 x HLS-15R0 Hook and Loop
1 x RGCBNJ660P22 #6 AWG Grounding Cable
Mounting Hardware
Conduit Schedule and Ingress Template
Installation Guide
Environmentally Friendly
Yes
Warranty
Limited Warranty
1 Year
