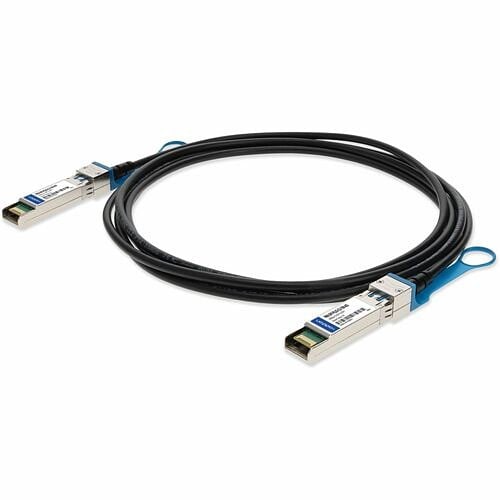

Palo Alto Networks PAN-SFP-PLUS-CU-7M-AO SFP+ Direct Attach Cable
The Palo Alto Networks PAN-SFP-PLUS-CU-7M-AO is a high-performance 10GBase-CU SFP+ direct attach cable engineered for enterprise data center and network infrastructure deployments. This 7-meter passive copper DAC delivers reliable 10 Gigabit connectivity between Palo Alto Networks security appliances, switches, and compatible network equipment. Built for organizations requiring cost-effective, low-latency SFP+ interconnectivity without the complexity of active components, this cable is ideal for short-to-medium distance connections in high-density networking environments.
Key Features
- 10GBase-CU passive copper technology for reliable short-reach connectivity
- 7-meter cable length optimized for data center rack-to-rack deployments
- SFP+ to SFP+ connector configuration for seamless Palo Alto Networks integration
- Direct attach cable design eliminates need for separate transceivers
- Low power consumption with passive copper construction
- Backward compatible with standard SFP+ ports and interfaces
- Durable construction rated for enterprise-grade network environments
Technical Specifications
| Specification |
Details |
| Manufacturer |
ADD-ON |
| Part Number |
PAN-SFP-PLUS-CU-7M-AO |
| Cable Type |
10GBase-CU Passive Copper DAC |
| Connector Type |
SFP+ to SFP+ |
| Cable Length |
7 meters |
| Data Rate |
10 Gigabit per second |
| Compatibility |
Palo Alto Networks, standard SFP+ interfaces |
| Power Requirement |
Passive (no power required) |
| Operating Temperature |
0°C to 70°C |
Frequently Asked Questions
What is a direct attach cable and how does it differ from active optical cables?
A direct attach cable (DAC) uses passive copper conductors to transmit data over short distances, eliminating the need for active electronics or separate transceivers. Unlike active optical cables (AOCs), passive DACs consume no power, generate minimal heat, and offer lower latency—making them ideal for cost-sensitive, high-density data center environments where distances don't exceed 10 meters.
Is the PAN-SFP-PLUS-CU-7M-AO compatible with my Palo Alto Networks firewall?
Yes, this SFP+ direct attach cable is specifically designed for Palo Alto Networks compatibility. It works with any Palo Alto Networks security appliance or network device featuring standard SFP+ ports. Verify your device supports 10GBase-CU connectivity before deployment.
What is the maximum recommended distance for this 10GBase-CU cable?
The 7-meter length is optimized for short-reach data center connections, typically between adjacent racks or within the same row. 10GBase-CU passive copper cables are rated for distances up to 10 meters; beyond this, signal degradation may occur. For longer distances, consider active optical cables (AOCs) instead.
Does this cable require any special drivers or configuration?
No, the PAN-SFP-PLUS-CU-7M-AO is a passive cable requiring no drivers, firmware, or configuration. Simply insert both SFP+ connectors into compatible ports and the connection will be recognized automatically by your Palo Alto Networks device.
