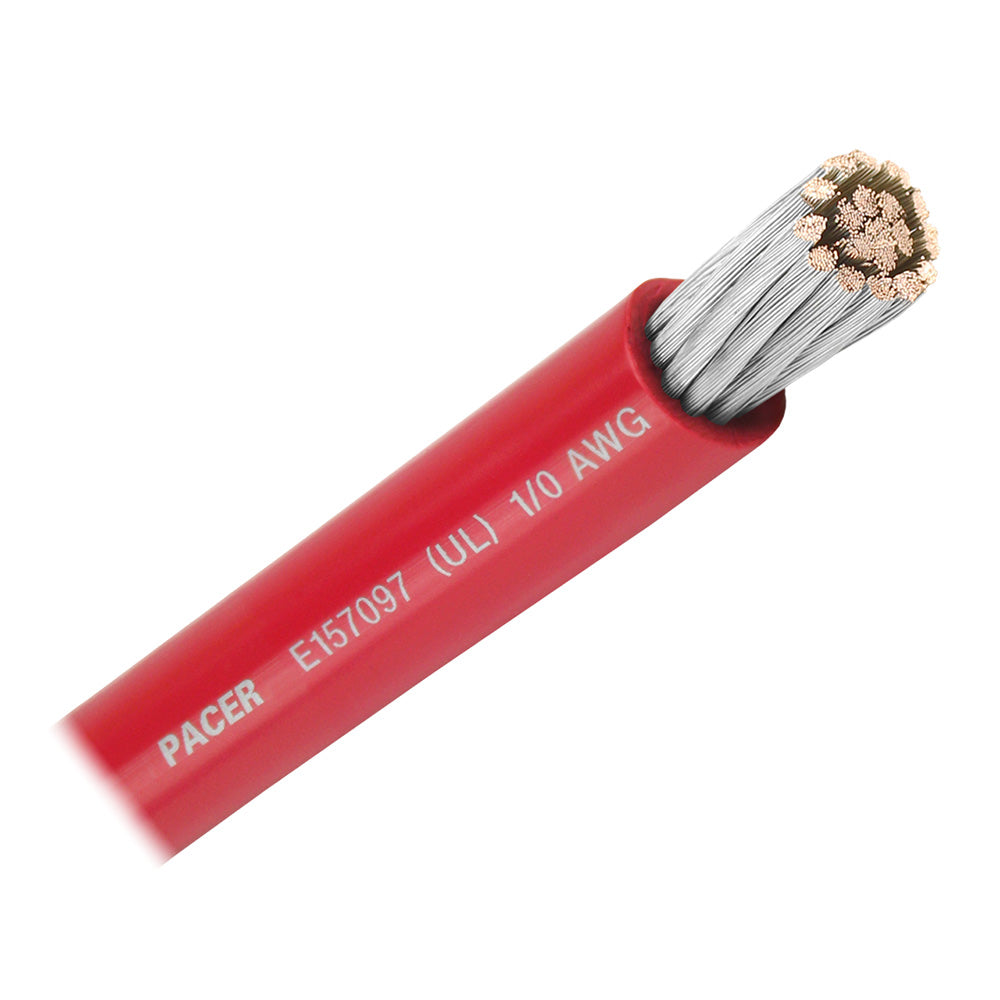

Red 1/0 AWG Battery Cable - 50'
Pacer's 1/0 AWG Marine Battery Cable is designed to exceed stringent specifications. This UL-approved cable is manufactured in-house in Sarasota, FL, USA, which ensures high quality. Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier. This is achieved by creating a flexible yet tough marine cable.
This 1/0 AWG marine battery cable can handle the toughest environments. This marine battery cable is made from Type III Class K tinned copper. The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible proprietary PVC jacket. These things all come together to make the highest quality marine cable available.
Features:
- Easy to strip, bend, and route
- Excellent flexibility with the durable properties of PVC
Applications:
- Connecting battery or generator to a starter, ground, switch, windlass, inverter, or other high-amperage equipment
Characteristics:
- Conductor: Annealed stranded tinned copper ASTM B172 Class K
- Insulation: -20 °C to 105 °C Flexible, Color-Coded PVC
- Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
- Voltage Rating: 600-V
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture
Specifications:
- AWG: 1/0
- Color: Red
- Length: 50 ft.
- Conductor Stranding: 19x 56/0.0100
- Nom. Ins. Thickness: 0.080
- Nom. O.D.: 0.600
- Nom. Circular Mils: 106400
- Nom. MM2: 53.9
- Approximate Weight: 450 lb/m
Compliances:
- UL Standard 1426 BC-5W2
- AWM 1232/1284
- MTW
- CSA: TEW
- ABYC: E-11.15
- Coast Guard: 33 CFR part 183 Subpart 1
Manufacturer Part Number: WUL1/0RD-50
