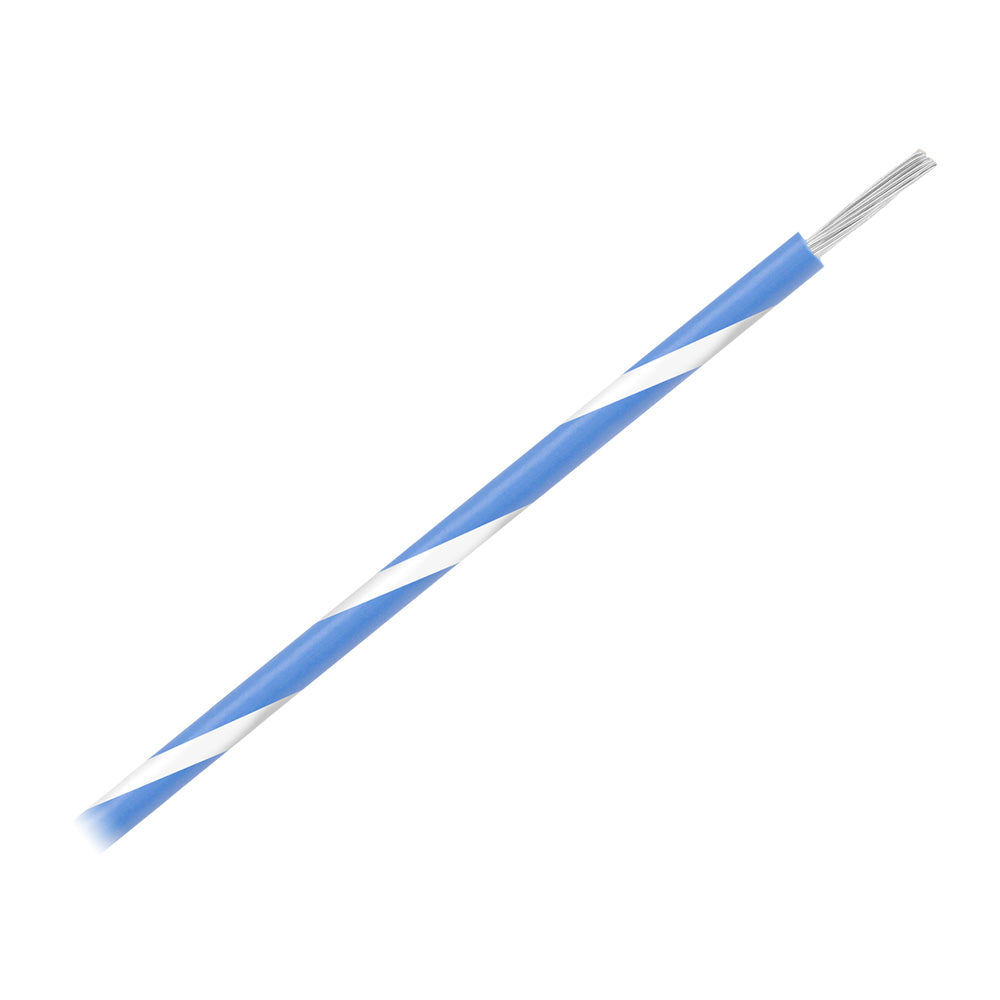

16 AWG Gauge Striped Marine Wire 500' Spool - Blue with White Stripe
Striped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.
How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, users are guaranteed to find the perfect choice. Currently, there are over 100 possible combinations of 16 AWG striped marine wires. Have a question about striped marine wire? Contact a Pacer expert today. This particular blue marine wire has a white stripe and comes in a 500 ft. spool.
Features:
- Stranded, tinned copper conductors
- Highly flexible color-coded insulation
- Annealed Finely Stranded Tinned Copper ASTM b172 Class K
- Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture
Specifications:
- Spool Length: 500 ft.
- Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC
- Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil
- Voltage Rating: 600-V
Applications:
- Point-to-point wiring
- Internal wiring of panels and motors
Compliances:
- UL Standard 1426 (BC-5W2)
- AWM 1015/1230
- AWM 1028/1231
- MTW, CSA: TEW
- ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183
Manufacturer Part Number: WUL16BL-9-500
