Name: Ovpoe4G- 4+1 Port Poe Switch 10/100/1000 Ovpoe4G
Brand: ArmorLogix
SKU: OVPOE4G
Price: 0.01 USD
Availability: InStock

Ovpoe4G- 4+1 Port Poe Switch 10/100/1000 Ovpoe4G

Roll over image to zoom in Click on image to zoom

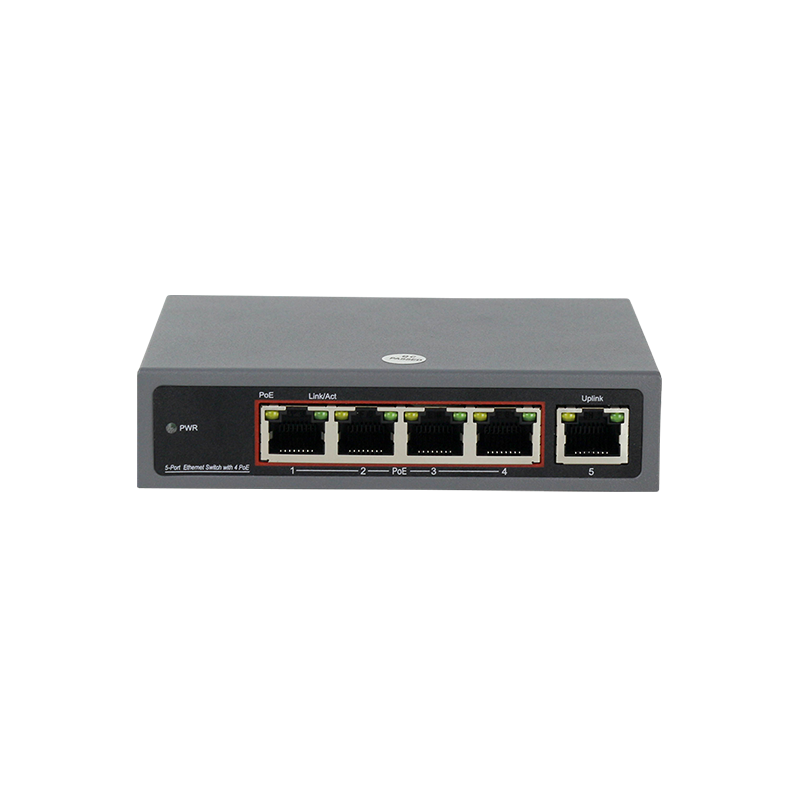

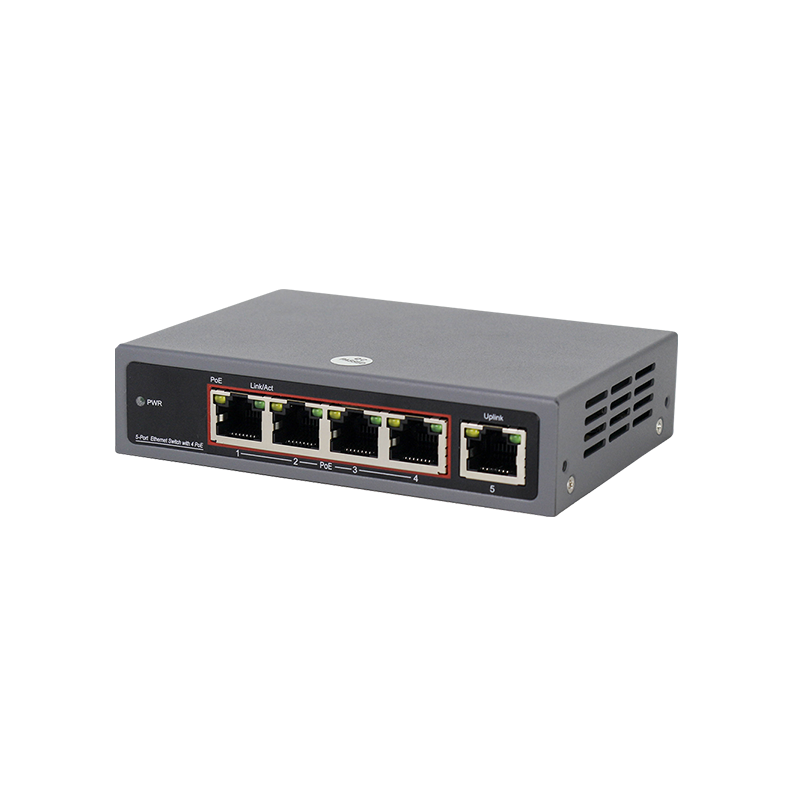

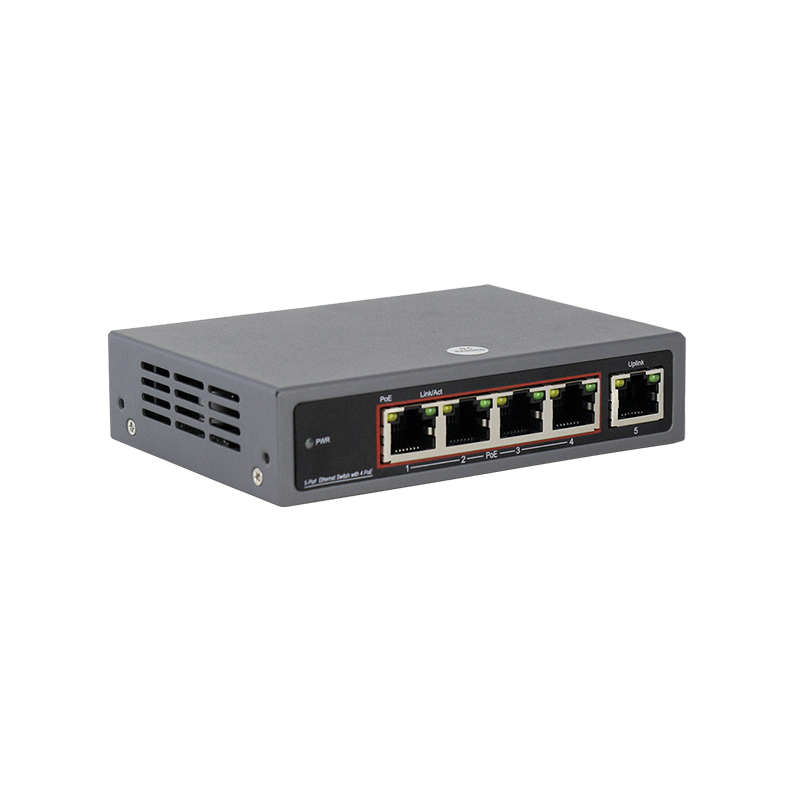

OVPOE4G – 4+1 PORT POE SWITCH 10/100/1000 OVPOE4G

4 x 10/100/1000Base-TX
1 x GB Uplink
60W Power over Ethernet

OVERVIEW

The OVPOE4G PoE switch provides power for regular IP cameras, and IP PTZ cameras, as well as other data and infrastructure. 10/100/1000Gbps speeds ensure high definition video quality.

FEATURES:

Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
5 x 10/100/1000Base-TX ports
Provides 4 x PoE Injector and 65W power adapter
Total output capacity of 60W and 30W per port
High back-plane bandwidth 10Gbps
IEEE802.3x Flow control
EMI standards complies with FCC, CE class B

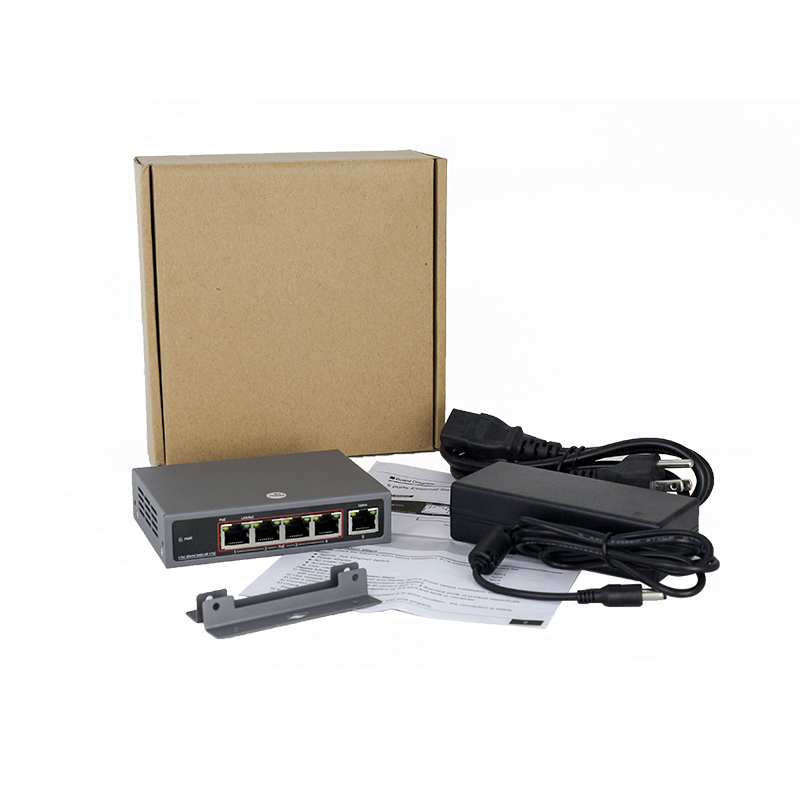

INCLUDES:

4-port multi-functional intelligent network line-powered switch
Power cord

SPECIFICATIONS

Power Supply		External Power Adaptor
Voltage Range		DC48~57V
Switch Consumption		<5W
Speed		1~5 Port : 10/100/1000Mbps
Speed		Uplink: 10/100/1000Mbps
Transmission Distance		328ft for RJ-45
Ethernet Standard		IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching Capacity		10G
Transfer Rate		14,880pps for 10Mbps
Transfer Rate		148,800pps for 100Mbps
Transfer Rate		1,488,000pps for 1000Mbps
MAC Address		2K MAC address table
On / Green		The port is connecting
Blinks		The port is receiving or transmitting data
Off		The port is not linked successfully with the device
On / Orange		PD is connected
Off		No PD is connected or power forwarding fails
Total Output Capacity		60W
Output Capacity per Port		Up to 30W per port
PoE Pin Assignment		V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
Working Temperature		0~40℃
Storage Temperature		-40~70℃
Humidity (Non-Condensing)		0~90%
Dimension		4.7″ x 3.3″ x 1.1″
Color		Gray

RESOURCES

Product Spec Sheet – Download
