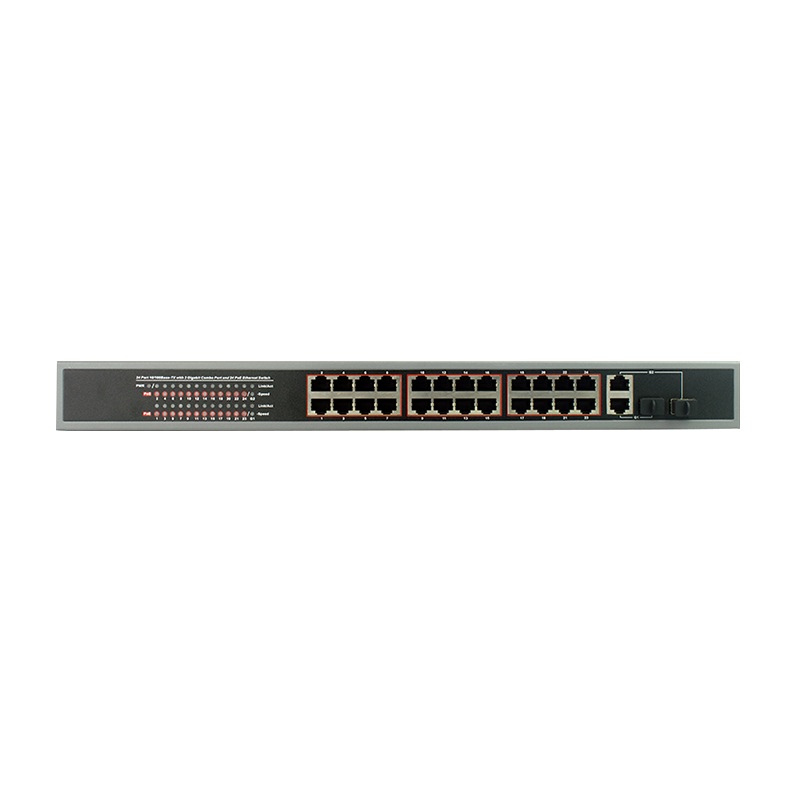

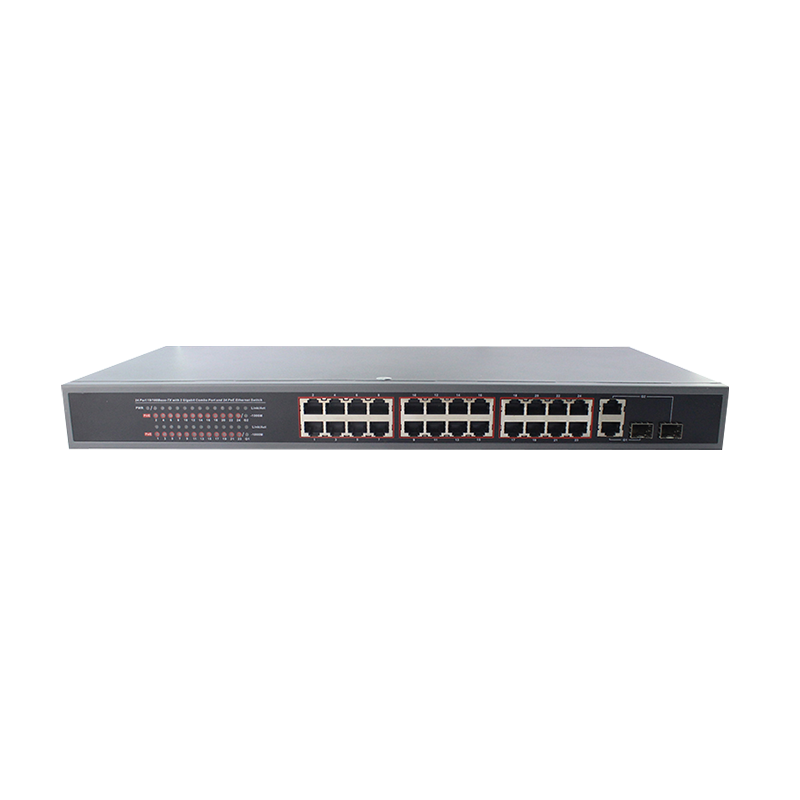

The OVPOE24-370-2GC PoE switch provides power for regular IP cameras, and IP PTZ cameras, as well as other data and infrastructure. 10/100Gbps speeds ensure high definition video quality.
FEATURES:
Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
24 x 10/100Base-TX ports + 2 Gigabit Combo
Provides 24 x PoE Injector and 370W built-in power supply with 30W per Port
High back-plane bandwidth 8.8G for 24+2G
IEEE802.3x Flow control
EMI standards complies with FCC, CE class B, UL
SPECIFICATIONS
Power Supply
Built-in Power Supply
Voltage Range
AC115~230V
Switch Consumption
<15W
Speed
1~24 Port: 10/100Mbps
Speed
G1~G2: Gigabit Combo
Transmission Distance
328ft for RJ-45
Transmission Distance
2Km 20Km for SFP Port The Optical module is optional
Ethernet Standard
IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching Capacity
8.8G
Transfer Rate
14,880pps for 10Mbps
Transfer Rate
148,800pps for 100Mbps
Transfer Rate
1,488,000pps for 1000Mbps
MAC Address
4K MAC address table
On / Green
The port is connecting
Blinks
The port is receiving or transmitting data
Off
The port is not linked successfully with the device
