Name: Ovpoe16-250- 16 Port Poe + 2 Gigabit Switch 10/100/1000 Base-Tx Ovpoe16-250
Brand: ArmorLogix
SKU: OVPOE16-250
Price: 0.01 USD
Availability: InStock

Ovpoe16-250- 16 Port Poe + 2 Gigabit Switch 10/100/1000 Base-Tx Ovpoe16-250

Roll over image to zoom in Click on image to zoom

OVPOE16-250 – 16 PORT POE + 2 GIGABIT SWITCH 10/100/1000 BASE-TX OVPOE16-250

16 x 10/100Base-TX
2 x GB Uplink + 2 x GB SFP
250W Power over Ethernet

OVERVIEW

FEATURES:

16 PoE ports, 10/100 Mbps each port
2 x Gigabit Uplink ports for high speed connection
2 x Gigabit fiber optic ports for high speed connection
Base on web management, easy and convenient
250W Maximum output power and 30W per port
High back-plane bandwidth 7.2Gbps for 16+2G
Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
IEEE802.3x Flow Control

INCLUDES:

16+2 Combo gigabit ports PoE Ethernet switch
AC Power Cable
Accessories
User Manual

SPECIFICATIONS

Power Supply		Built-In Power Supply
Voltage Range		AC100~240V
Switch Consumption		<15W
Speed		1~16 Port : 10/100/1000Mbps
Speed		G1~G2: Gigabit Combo
Transmission Distance		328ft for RJ-45
Ethernet Standard		IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching Capacity		7.2G
Transfer Rate		14,880pps for 10Mbps
Transfer Rate		148,800pps for 100Mbps
Transfer Rate		1,488,000pps for 100Mbps
MAC Address		4K MAC address table

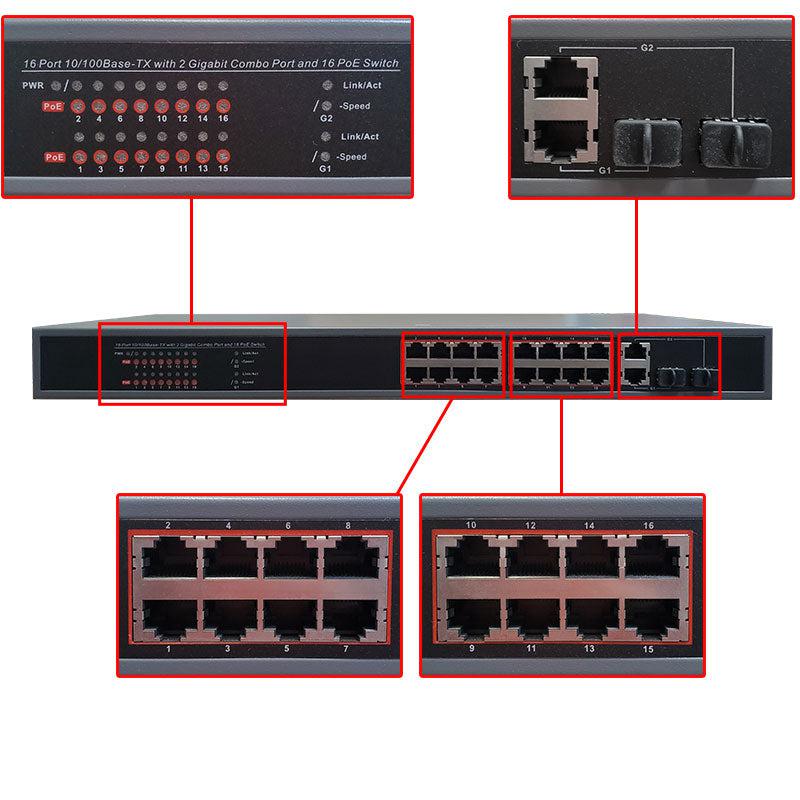

On / Green		The port is connecting
Blinks		The port is receiving or transmitting data
Off		The port is not linked successfully with the device
On / Orange		PD is connected
Off		No PD is connected or power forwarding fails
Total Output Capacity		250W
Output Capacity per Port		Up to 30W per port
PoE Pin Assignment		V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
Working Temperature		0~40℃
Storage Temperature		-40~70℃
Humidity (Non-Condensing)		0~85%
Dimension		17.3″ x 7.9″ x 1.7″
Color		Black

RESOURCES

Product Spec Sheet – Download
