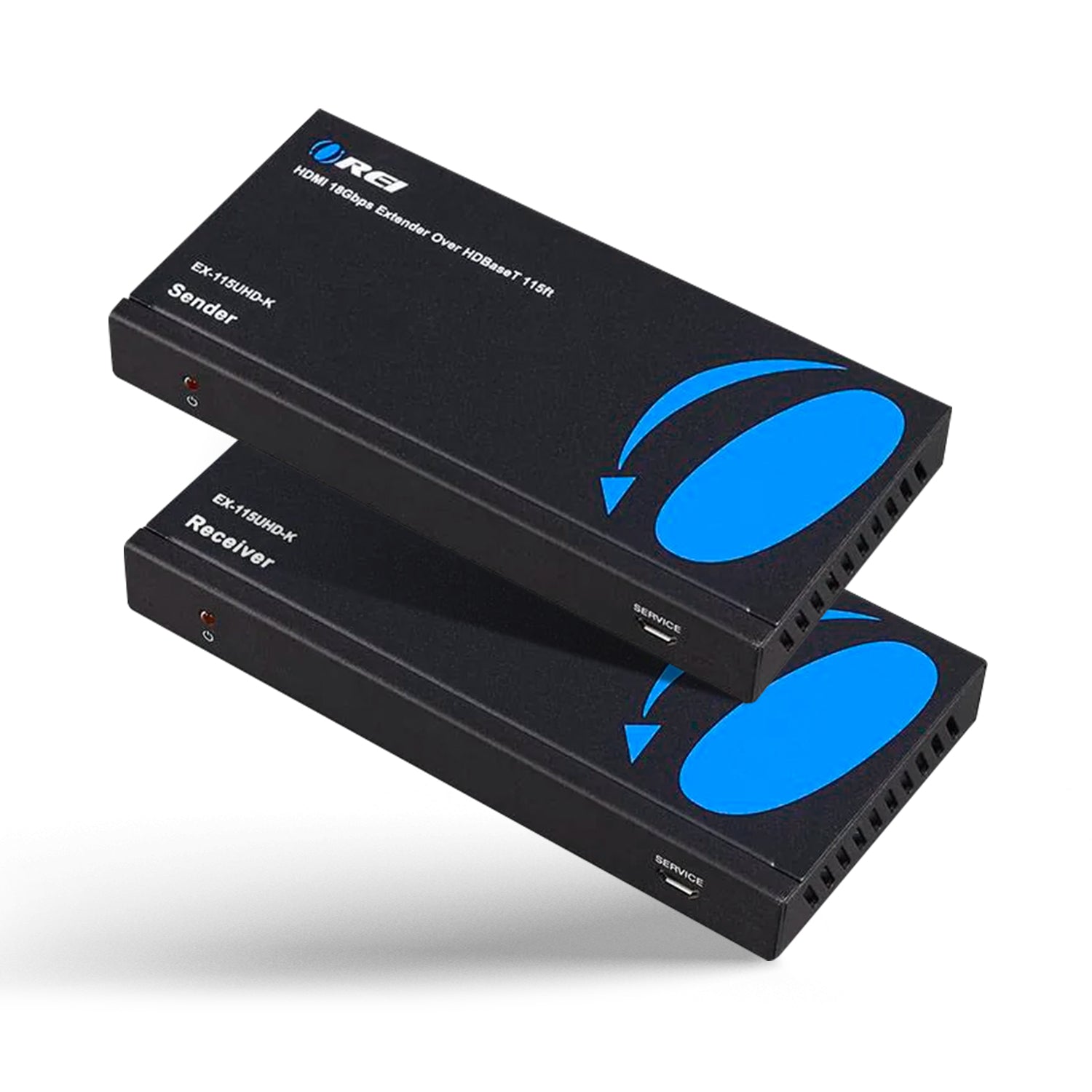

OREI 4K Extender over Ethernet up to 115 feet - With Audio Extraction, Power over Cable, IR Functionality, RS-232 & CEC Pass-through (EX-115UHD-K)
Key Features:
HDMI 2.0b & HDCP 2.2 compliant
18Gbps video bandwidth
HDMI extension up to 115ft / 40 meters at 4K@60Hz; 230ft / 70 meters at 1080P@60Hz over a CAT 6 cable
HDMI loop output port on the transmitter to connect a display at source
HDR, HDR10+, Dolby Vision and HLG function supported
Audio extraction through the L/R port on the receiver
With bi-directional IR, RS-232 and CEC pass-through
Bi-directional Power over Cable functionality
Compact design for easy and flexible installation
Perfect for personal and commercial setups
The UHD-EX115-K is an HDMI extender that transmits HDMI signals up to 115 feet / 40 meters at 4K@60Hz and 230 feet / 70 meters at 1080P@60Hz. It is HDMI 2.0b and HDCP 2.2 compliant, with an 18 Gbps video bandwidth and support for resolutions up to 4K@60Hz 4:4:4. The transmitter unit features an HDMI loop output port for a source display, and the receiver unit offers audio extraction via the L/R port. It supports HDR, HDR10+, Dolby Vision, and HLG passthrough. The device includes bi-directional IR functionality for controlling the source from the receiver’s location and vice versa. It also supports RS-232 and CEC passthrough for enhanced control. With bi-directional power over cable, only one power adapter is required, connected to either of the units. Compact design and easy plug-and-play installation. Perfect for both commercial and personal setups.
[tab]

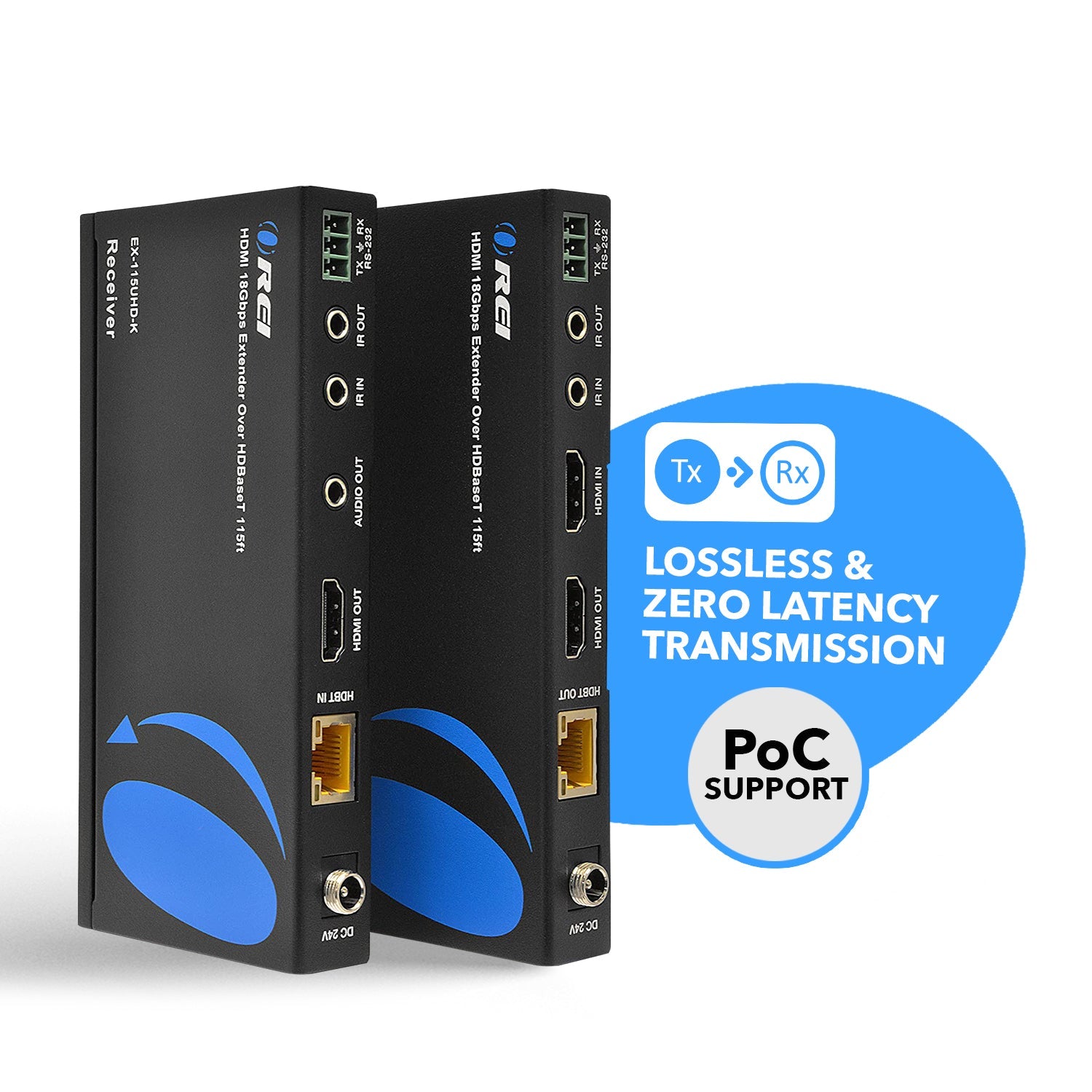

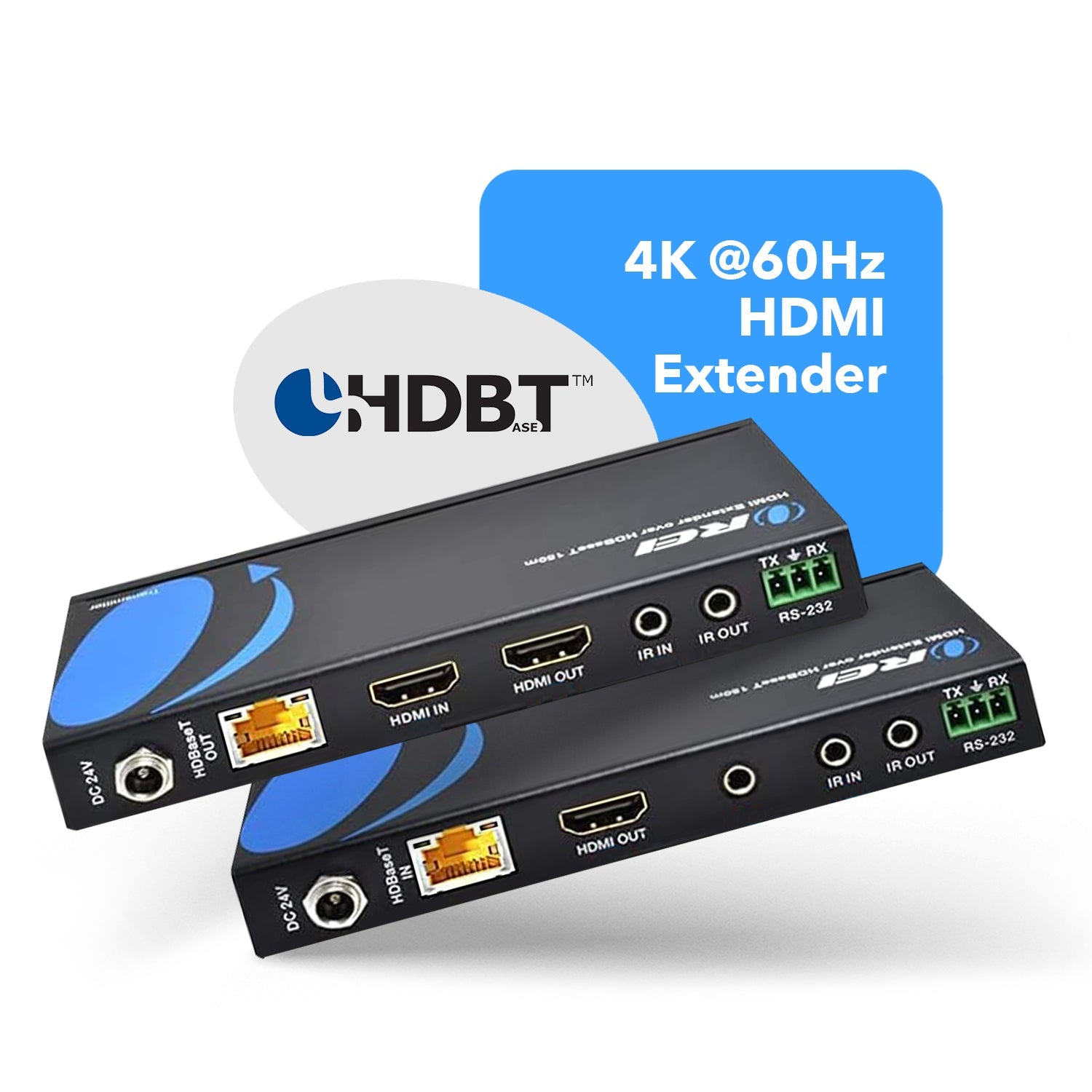

CONNECTIVITY
Transmitter:
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × HDBaseT [RJ45, 8-pin female]
CONTROL:
1 × I/R IN [3.5mm Stereo Mini-jack]
1 × I/R OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin Phoenix connector]
1 × SERVICE [Micro USB, Update port]
Receiver:
INPUT:
1 × HDBaseT [RJ45, 8-pin female]
OUTPUT:
1 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
CONTROL:
1 × I/R IN [3.5mm Stereo Mini-jack]
1 × I/R OUT [3.5mm Stereo Mini-jack]
1 × RS-232 [3-pin Phoenix connector]
1 × SERVICE [Micro USB, Update port]
PACKAGE CONTENTS
1x Transmitter
1x Receiver
1x IR Blaster cable
1x IR Receiver cable
4x Mounting ears
2x 3-pin phoenix connector
1x Power Adapter
User Manual
SUPPORTED CAT CABLES
CAT5e, CAT6, CAT7:
We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
EXTENDING DISTANCE
4K@60Hz:
115 Feet
1080P@60Hz:
230 Feet
VIDEO OUTPUT
Video Bandwidth:
18Gbps
Video Resolutions:
Up to 4K@60Hz 4:4:4
ADDITIONAL FEATURES
CEC:
Yes
ARC:
No
USB KVM:
No
PoC/PoE:
Yes
IR Control:
Yes
Downmix:
No
Downscale:
Yes
Over IP:
No
HDBaseT:
Yes
RS-232:
Yes
LOOP-OUT/LOCAL PORT
Has loop out port:
Yes
Number of Loop out ports:
1
AUDIO SUPPORT
HDMI Audio Formats:
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
COMPLIANCES
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
POWER
Power Consumption:
9.36W (Max)
Power Supply:
Input: AC 100-240V 50/60Hz
Output: DC 24V/1A

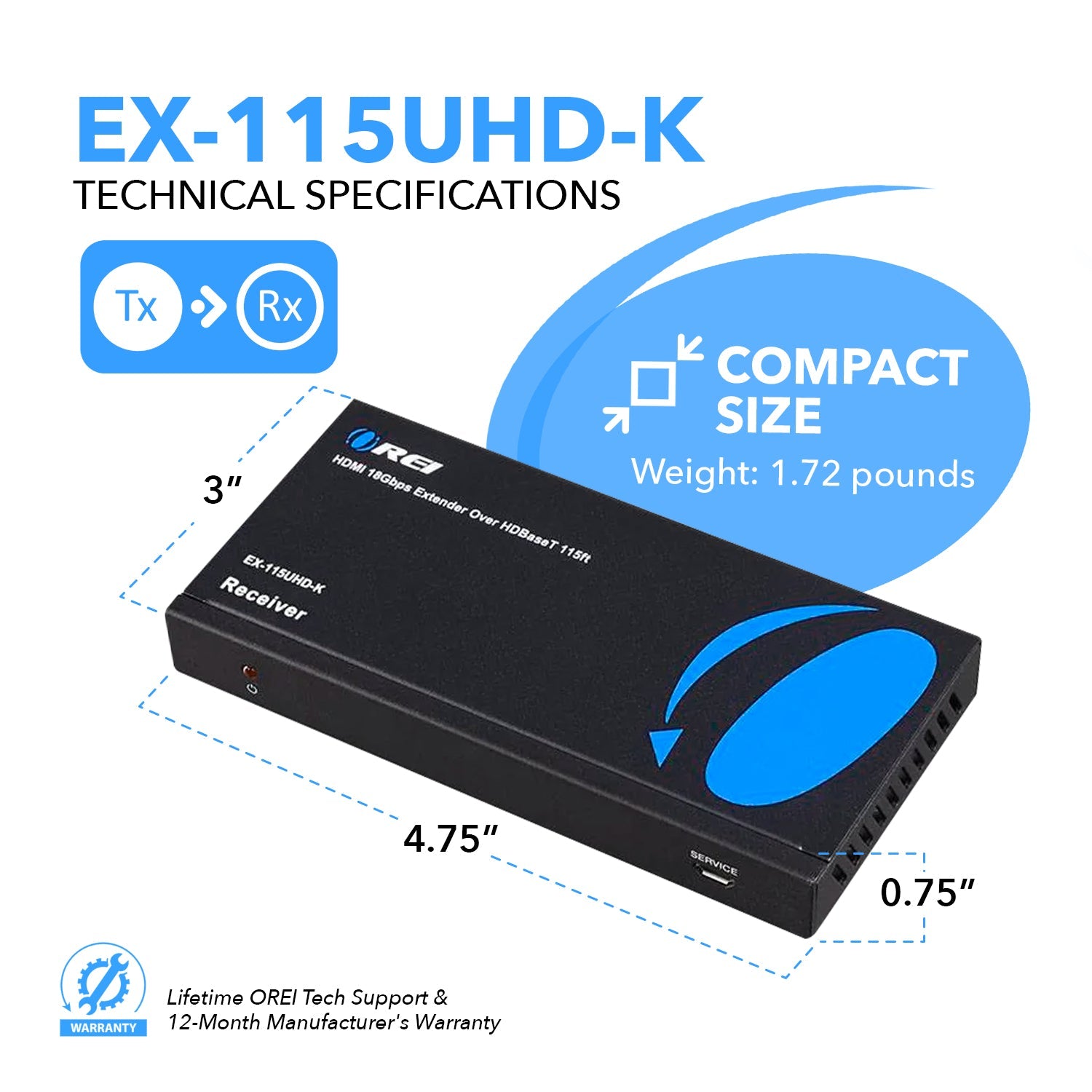

DIMENSIONS & WEIGHT
Transmitter:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
160g / 5.64oz
Receiver:
Length:
140mm / 5.51in
Width:
65mm / 2.56in
Height:
18mm / 0.71in
Weight:
155g / 5.47oz
PROPERTIES
Color:
Black
Housing:
Metal Enclosure
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Yes, you can implement the daisy chain method.
Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
No, this product doesn't upscale/downscale the video resolutions.
You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable.
The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
You can upgrade the firmware by connecting the PC & this device via RS-232 cable.
Please note that this product only supports the CEC function between HDMI input & HDMI output 1.
No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices.
HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality.
In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency.
We recommend you using a shielded CAT6 cables for optimum performance.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.

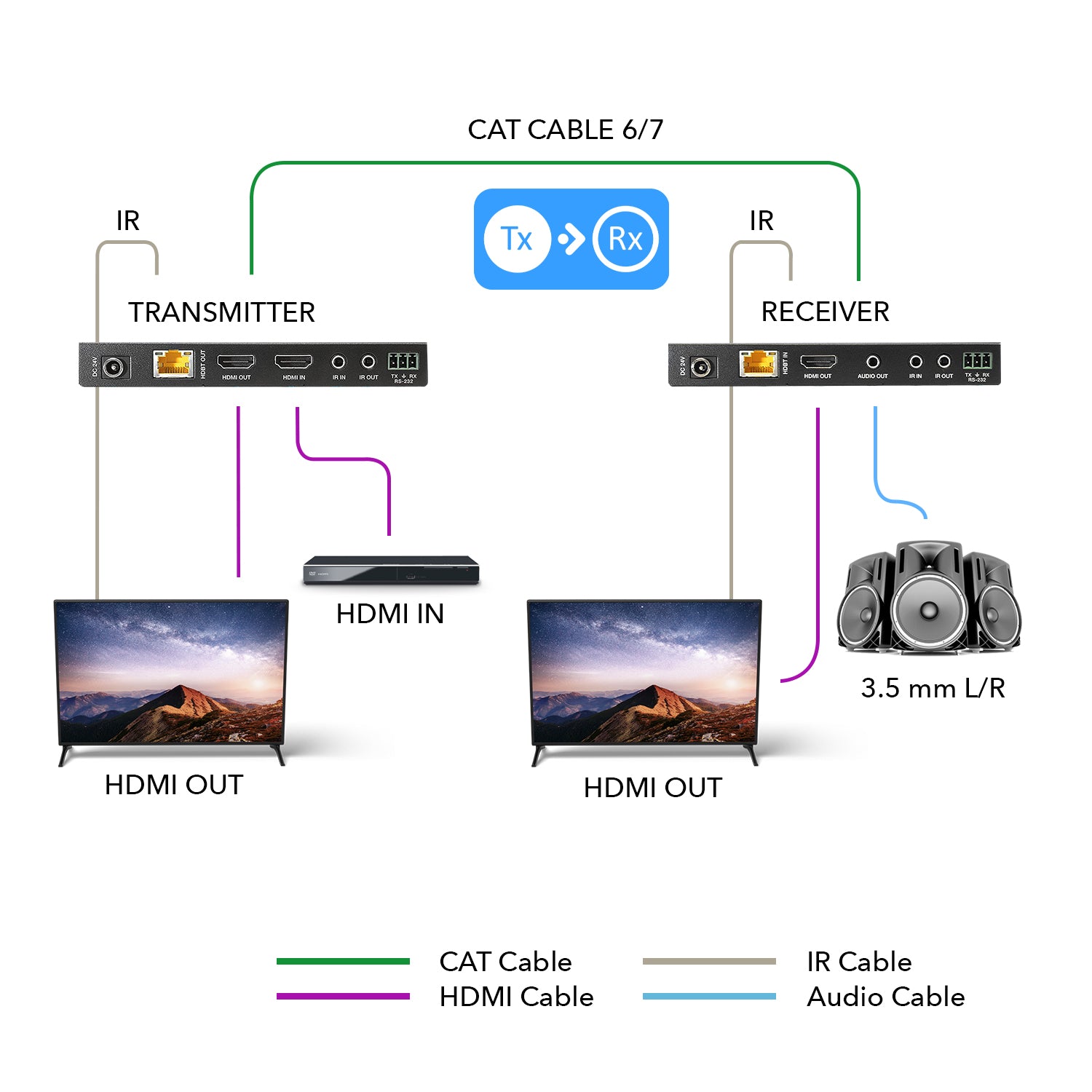

The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
