Supports HDMI audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD.

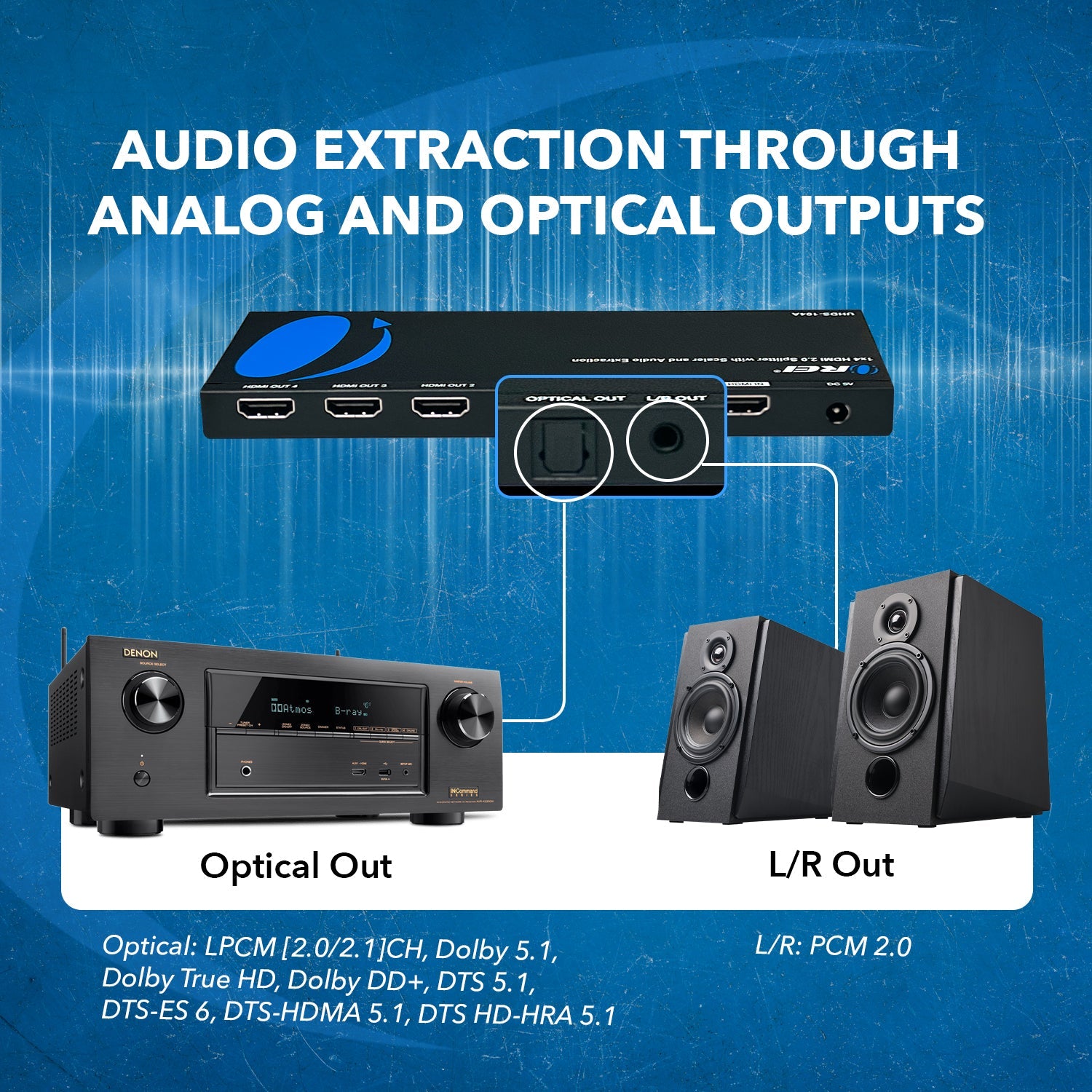

Audio extraction through Optical and Analog outputs
EDID management
Compact design with easy plug-and-play installation.

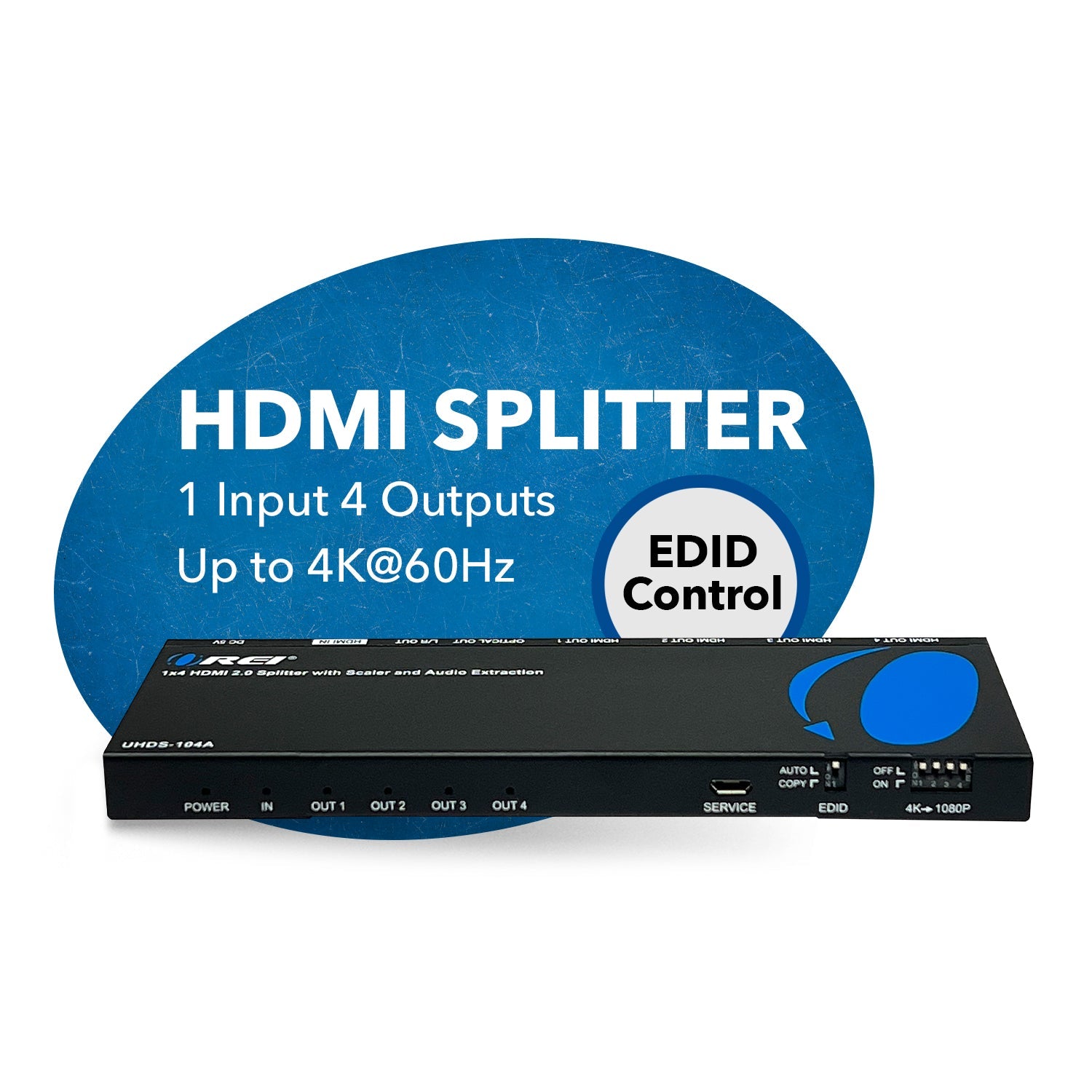

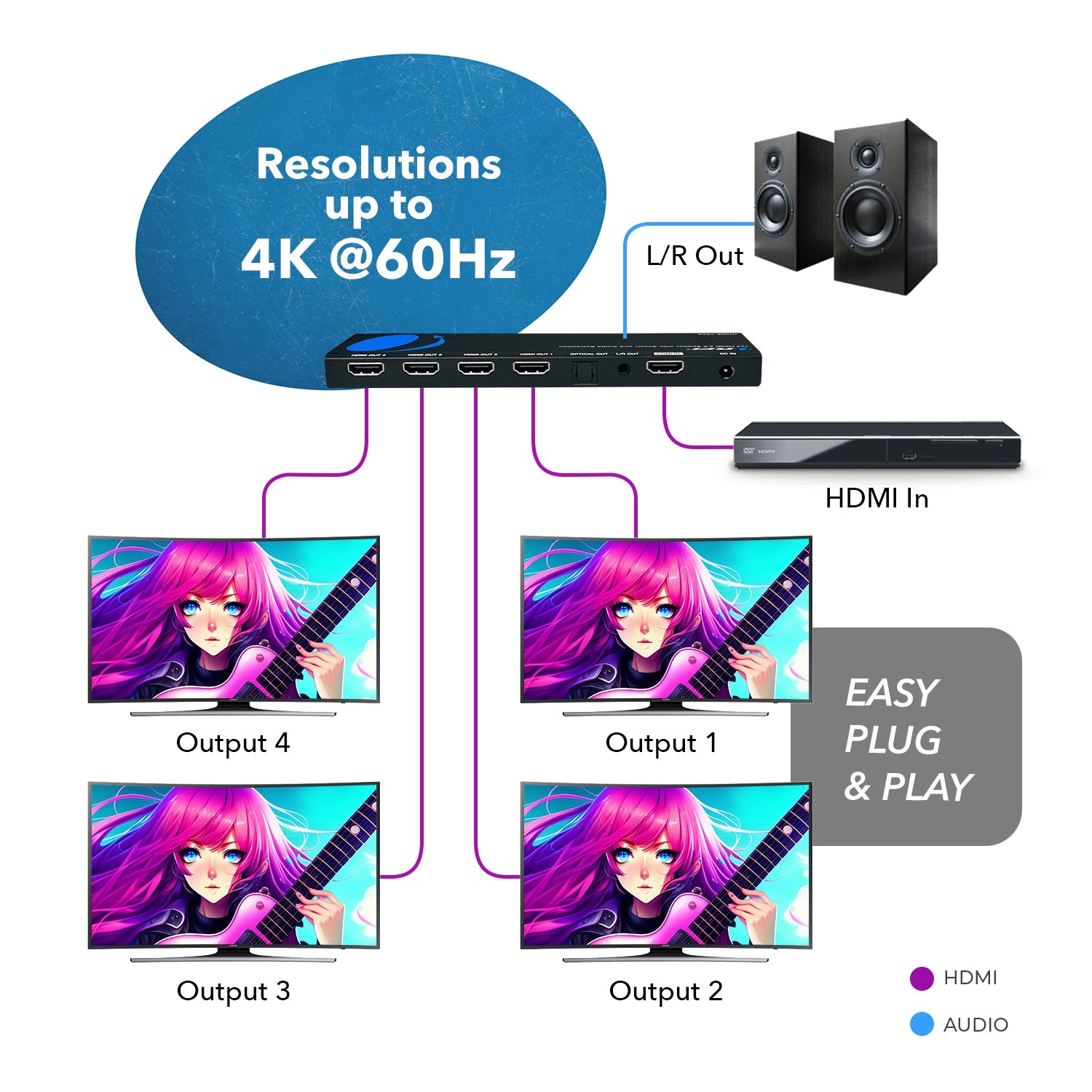

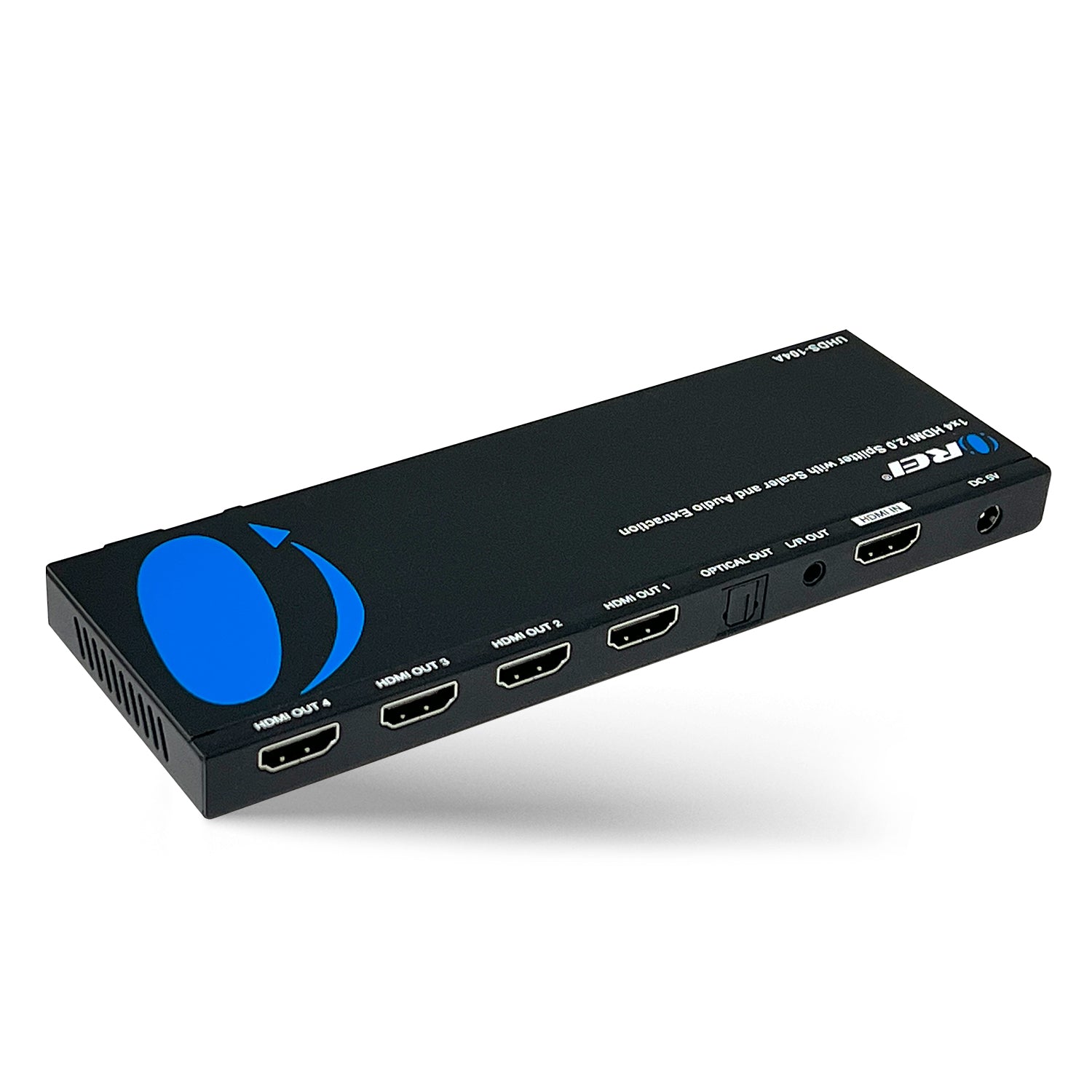

The UHDS-104A HDMI splitter displays media content across 4 displays simultaneously. This splitter can also extract audio through L/R and Optical ports. The device is compliant with HDMI 2.0b and HDCP 2.2, offering a video bandwidth of 18Gbps. It supports resolutions up to 4K@60Hz YCbCr 4:4:4. Additionally, it features downscale functionality for displays without 4K support, available on all output ports. HDMI audio formats such as LPCM, Dolby Digital/Plus, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD are supported. It features a toggle switch for EDID management. This HDMI Splitter makes it easy to mirror audio/video content from any media source to 4 displays simultaneously, making it the best choice for any commercial or residential setup.
[shortdes]
1 in 4 out HDMI splitter With Audio Extraction
Resolutions up to 4K@60Hz
4K to 1080p downscale function
[/shortdes]
[tab]
CONNECTIVITY
INPUT:
1 × HDMI [Type A, 19-pin female]
OUTPUT:
4 × HDMI [Type A, 19-pin female]
1 × L/R [3.5mm Stereo Mini-jack]
1 × Optical [S/PDIF]
CONTROL:
1× SERVICE [Micro USB, Update port]

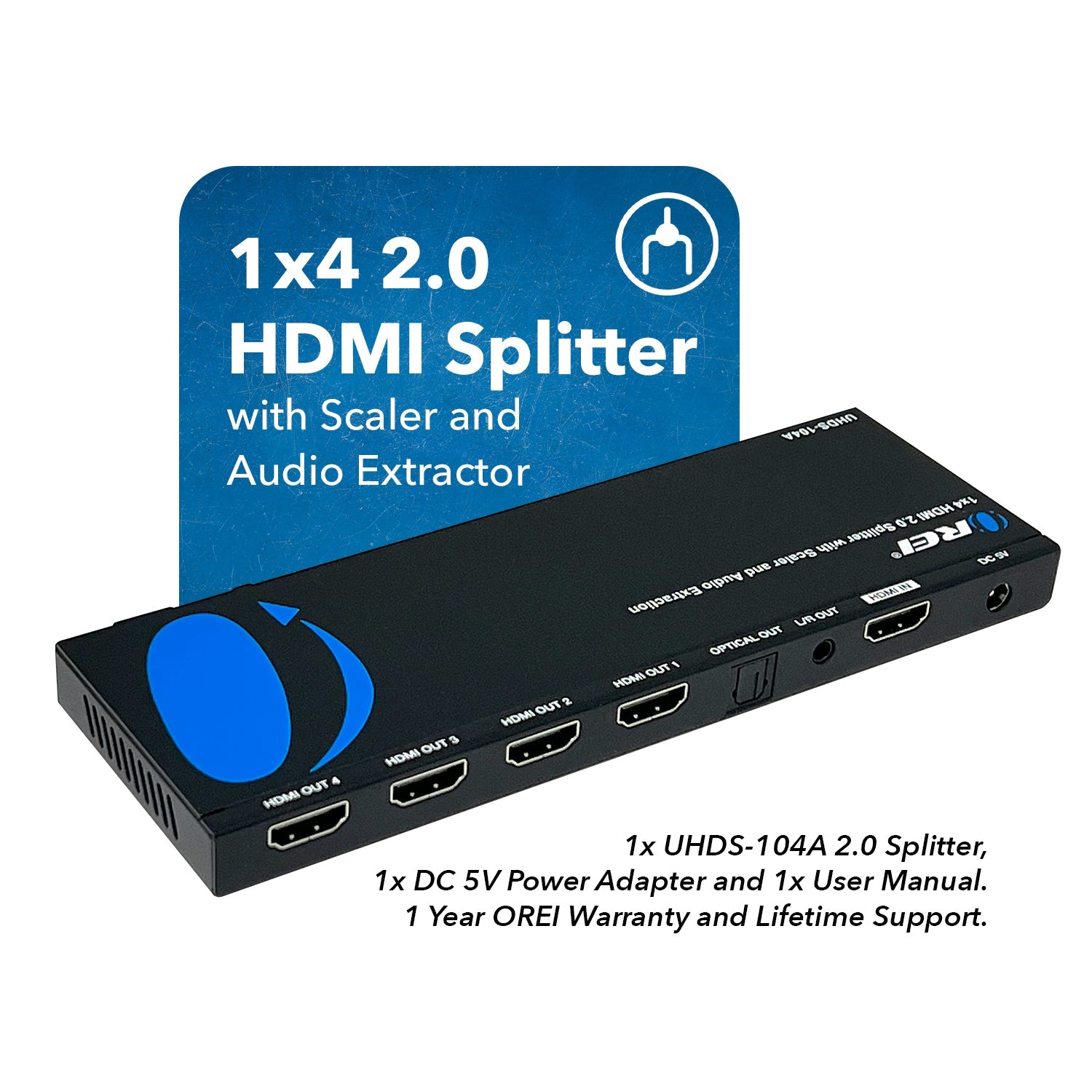

PACKAGE CONTENTS
1x UHDS-104A HDMI Splitter
1x Power Adapter
User Manual
SUPPORTED HDMI CABLES
HDMI 2.0/2.1
We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
Our splitters will not work with capture cards due to the HDCP encryption on the output
Our HDMI splitter will duplicate or "mirror" a single HDMI source on two HDMI displays. Both displays will show the same video and audio simultaneously
Our splitter does not support extend mode. It only supports mirror/duplicate screen function, each screen will show the same picture
Yes, the power adapter does support 220V
You can use standard HDMI cables up to 15 feet and high quality cables up to 30 feet.
However, you can use fiber optic active HDMI cables up to 200 feet. If its not a high quality cable then you may lose the signal in some instances.
No, the HDMI splitters do not support CEC because most customers do not want all the TV's to turn ON as soon as the source is turned ON.
[/tab1]
General Information
UPC
850031132559
