Vaddio Conferencing Equipment Kit
Brings your traditional videoconferencing equipment - or just your Cisco camera - into a USB cloud conferencing environment for the best of both worlds. Extends power, video and control to your camera over a single category cable.
Packaged for Cisco SX20, SX80 or C-Series codecs; compatible with most Cisco Precision series cameras.
Key Features:
- Simple, clutter-free camera extension with HDBaseT technology
- Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
- Bridges audio and video for easy soft-client conferencing
- Configurable audio matrix with AEC
- Simultaneous HDMI, USB 3.0, and HD-SDI outputs
- Up to 1080p/60 resolution available over uncompressed USB
Product Type: Conferencing Equipment Kit
Brand Name: Vaddio
Compatibility:
- Cisco SX20, SX80 C-Series codecs
- Cisco Precision series cameras
Manufacturer: Legrand Group
Product Name: Conferencing Equipment Kit
Manufacturer Part Number: 999-9660-000
Manufacturer Website Address: http://www.legrand.us
Package Contents:

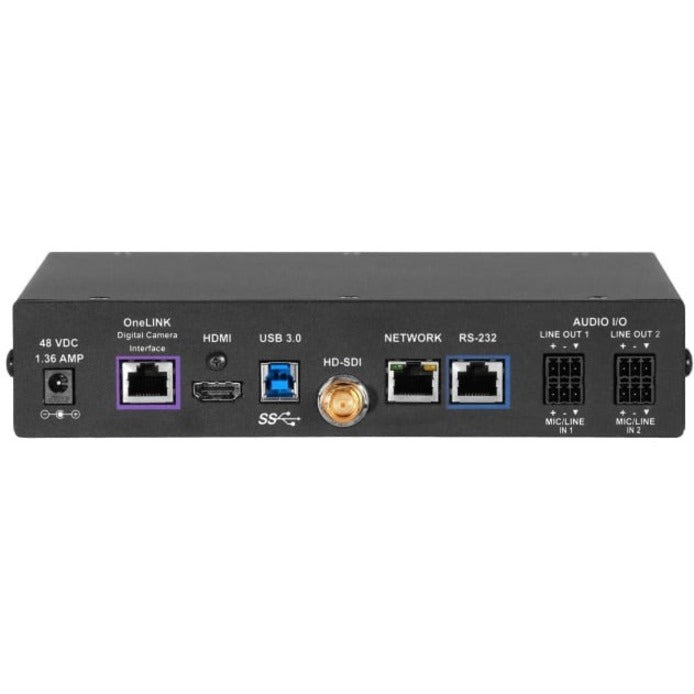

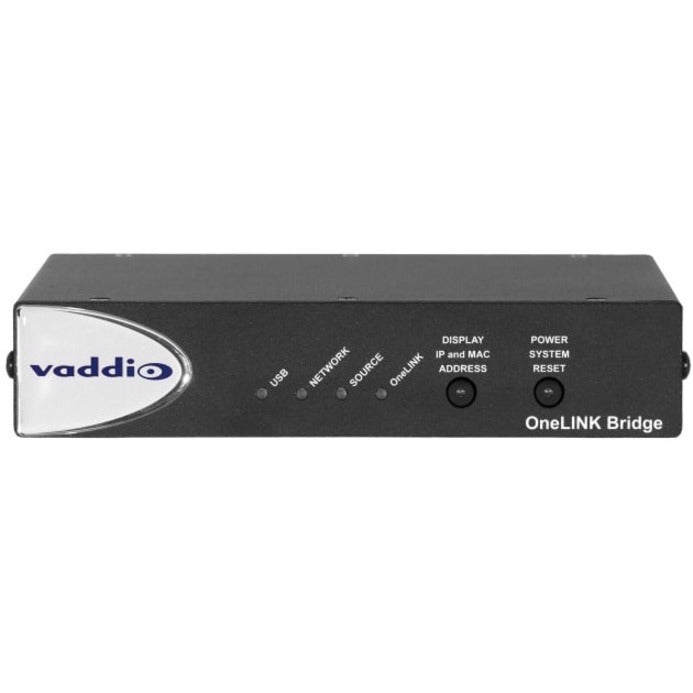

- OneLINK Bridge Interface

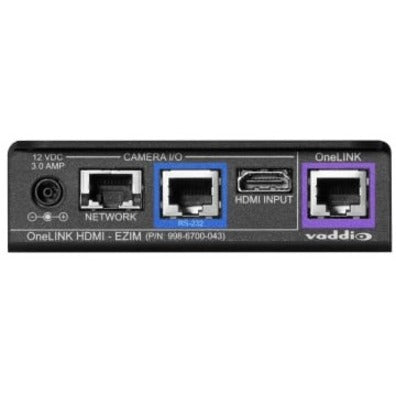

- OneLINK HDMI EZIM with mounting screws
- Thin Profile Wall Mount (black) with mounting hardware
- Quick-Start Guide
- 48V power supply with AC cord set(s)
- 4 qty 3-position phoenix-style connectors
- 1' (0.3m) cat-5 cable, black
- 3' (0.9m) cat-5 cable, black
- 1' (0.3m) directional cat-5 cable for Cisco PrecisionHD
- 3' (0.3m) directional cat-5 cable for Cisco SX20
- 1' (0.3m) HDMI cable
- 3' (0.9m) HDMI cable
- 1' (0.3m) EIAJ-04 to 5.5x2.1 power cable for camera
- 6' (1.8m) USB 3.0 cable, type A to B
- EZCamera RS-232 Control Adapter
- EZCamera RS-232 Control Adapter 998-1002-232 for Cisco codec serial 9-pin ports
