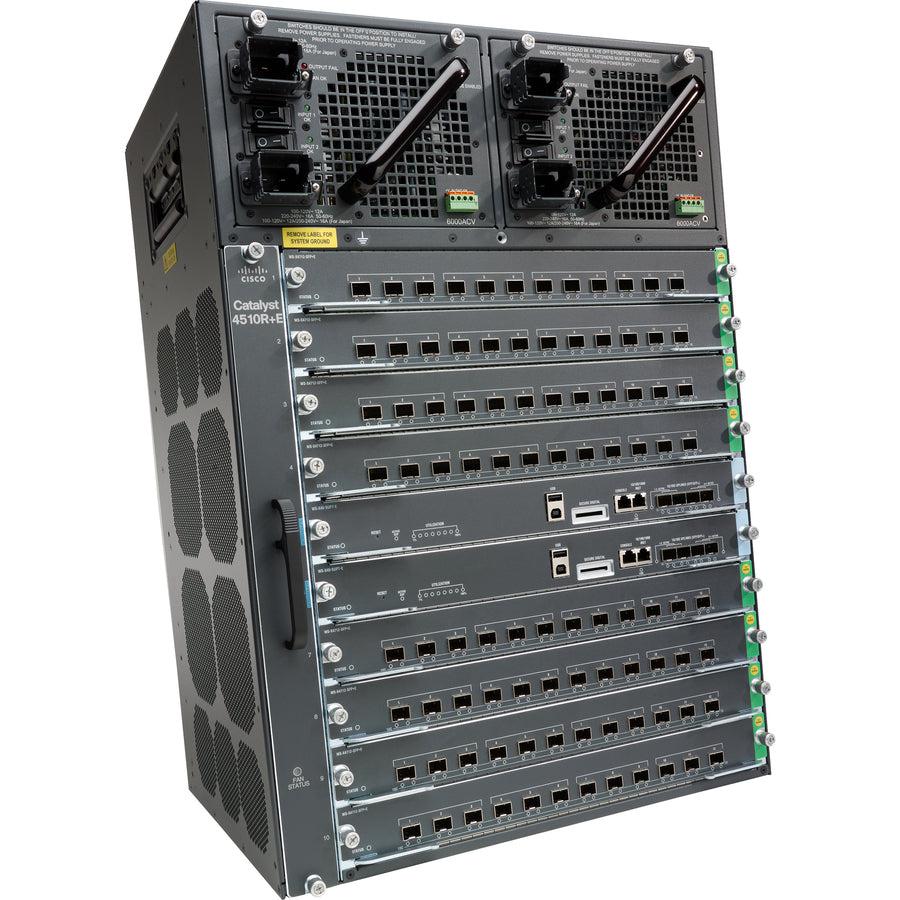

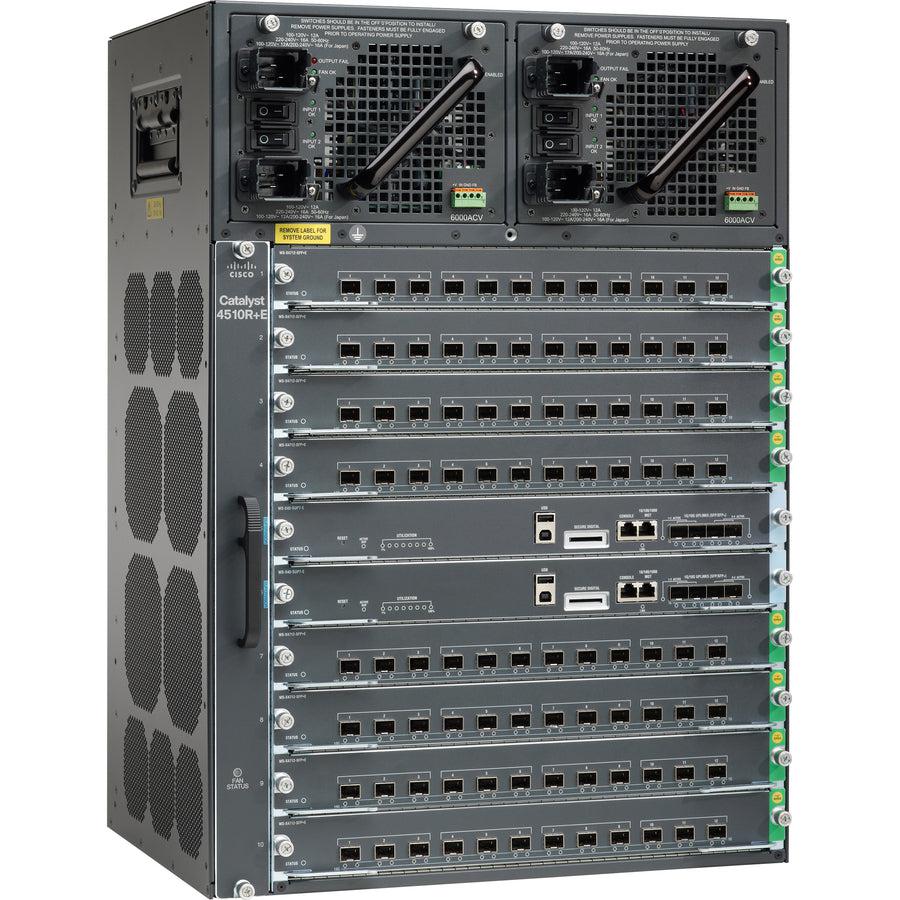

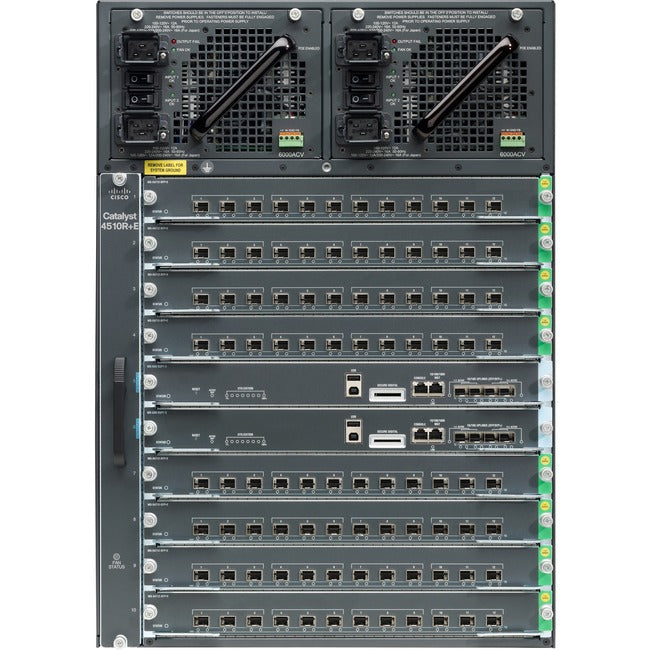

This Cisco Catalyst C4510R+E switch chassis is perfect for large enterprises and campus networks who need 10-slot modular switch flexibility with maximum scalability. Our Cisco Catalyst 4500 Series delivers:
-
10-slot modular chassis that supports up to 480 Gigabit Ethernet ports
-
Redundant supervisor support providing high availability and seamless failover
-
Modular switch architecture ensuring investment protection and future expansion
-
Enterprise-grade performance for mission-critical campus and data center deployments
Key Features
-
10-slot modular chassis design for maximum flexibility
-
Dual supervisor engine capability with 1+1 redundancy
- Optimized for campus network aggregation and distribution layers
- Consistent forwarding performance up to 136 Mpps
-
Hot-swappable components including supervisors, line cards, and power supplies
-
Advanced Quality of Service with hardware-based classification
-
Enhanced security features with DHCP snooping and port security
-
Investment protection with backward compatibility and future linecard support
Technical Specifications
| Manufacturer |
Cisco Systems |
| Model Number |
C1-C4510R+E |
| Type |
10-Slot Modular Switch Chassis |
| Slot Configuration |
10 x linecard slots, 2 x supervisor slots |
| Maximum Port Density |
480 x 10/100/1000 Ethernet ports |
| Forwarding Performance |
136 Mpps wire-speed switching |
| Switching Capacity |
928 Gbps full-duplex capacity |
| Power Supplies |
Redundant AC/DC PSUs with 1+1 backup |
| Cooling System |
Variable speed fans, front-to-back airflow |
| Rack Units |
14RU chassis height |
| Operating System |
Cisco IOS Software with advanced enterprise features |
| Compatible Systems |
Campus distribution, data center aggregation, WAN edge |
Chassis Components
-
WS-C4510R+E chassis with 10 linecard slots
-
Redundant supervisor engines for high availability
-
Modular power supplies with hot-swap capability
-
Variable speed cooling fans for optimal airflow
-
Cable management system for organized deployment
-
Grounding kit and rack mounting hardware
Campus Network Applications
-
Distribution layer switching in large campus networks
-
Data center aggregation for server connectivity
-
WAN edge deployment with high port density requirements
-
Branch office consolidation supporting multiple VLANs
-
Service provider access networks requiring QoS
-
Enterprise backbone with redundancy requirements
Advanced Capabilities
-
Virtual Switching System (VSS) for chassis virtualization
-
Enhanced Power over Ethernet supporting high-power devices
-
Network-Based Application Recognition for traffic classification
-
Cisco TrustSec for role-based access control
-
Energy Efficient Ethernet reducing power consumption
-
NetFlow support for network monitoring and analysis
Frequently Asked Questions
Q: What linecard options are compatible with the Catalyst 4510R+E chassis?
A: The Cisco Catalyst C4510R+E switch chassis supports various linecard types including 48-port Gigabit Ethernet, 10 Gigabit Ethernet uplinks, and Power over Ethernet modules — providing flexibility for campus network deployments with diverse connectivity requirements.
Q: How does the redundant supervisor architecture ensure network availability?
A: Yes, the dual supervisor capability provides stateful switchover with sub-second failover times. Configuration synchronization between active and standby supervisors ensures zero configuration loss during supervisor failures.
Q: Can this chassis support both campus and data center applications?
A: Absolutely. The 10-slot modular chassis design with 928 Gbps switching capacity makes it ideal for both campus distribution layers and data center aggregation — perfect for enterprise network environments requiring high performance and reliability.
Q: What power and cooling options are available for the chassis?
A: Redundant power supply options include 6000W AC and DC variants with N+1 configuration. Variable speed fans automatically adjust based on temperature and load conditions for optimal energy efficiency.
Q: Does the chassis support advanced enterprise features?
A: Yes. Cisco IOS Software includes advanced features like VSS virtualization, TrustSec security, NetFlow monitoring, and comprehensive QoS — providing enterprise-grade capabilities for complex network deployments.
Cisco Catalyst C4510R+E 10-slot modular switch chassis with redundant supervisor support. Enterprise-grade campus and data center switching platform.
