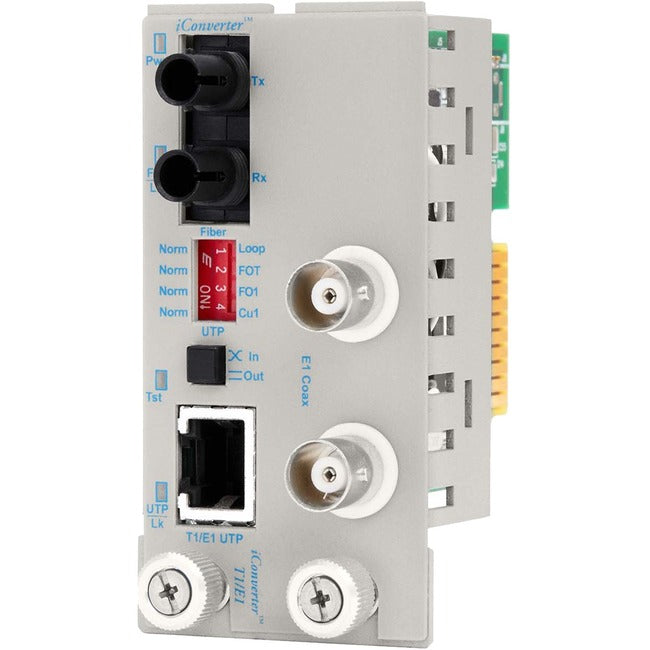

Omnitron Systems iConverter T1/E1 Manageable Media Converter
iConverter T1/E1 Manageable Media Converter is member of the modular iConverter product family. It provides T1/ E1 Copper to Fiber conversion. The RJ45/RJ48 port supports T1 and E1, and a DCE/DTE switch eliminates the need for a crossover cable and facilitates connectivity to devices such as PBXs and CSUs. The iConverter T1/E1 module is hot-swappable. It conforms to ANSI, AT&T, ETSI and ITU specifications and provides LED displays for immediate visual status of each port.
Management is accomplished by using a Network Management Module (NMM) that can be accessed via Telnet using the serial port through Omnitron's NetOutlook SNMP-based management software or any other SNMP software. The management provides real-time port and module information, remote parameter configuration and trap notification. The user can override the T1/E1 module's physical switch settings by using SNMP or Telnet to remotely configure switch-selectable parameters such as Link Propagate, Link Segment, Remote Fault Detection or connection type and distance.
In addition to all standard iConverter SNMP traps such as module insertion and removal, the T1/E1 modules can generate traps on port state changes including link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network administrator.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 4 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
- Takes minimal energy and effort to get installed internally
Product Type: Transceiver/Media Converter
Country Of Origin: United States
Brand Name: Omnitron Systems
Form Factor: Internal
Manufacturer: Omnitron Systems
Product Name: iConverter T1/E1 Manageable Media Converter
Product Line: iConverter
Manufacturer Part Number: 8720-0
Manufacturer Website Address: http://www.omnitron-systems.com
Limited Warranty: Lifetime
