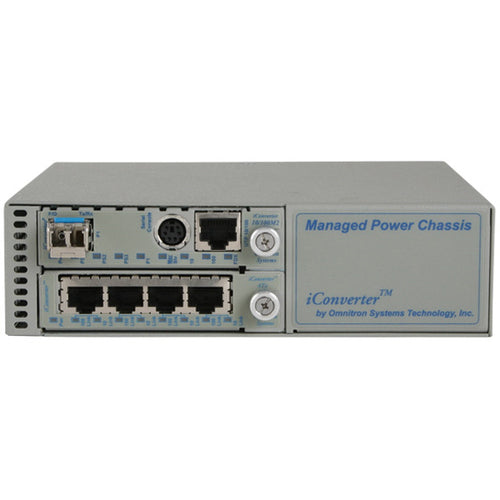

Omnitron Systems iConverte 8231-1 Module Power Chassis
The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter multi-service platform modules.
The 2-Module Chassis features a backplane that enables sharing of Ethernet data between two installed iConverter modules that are equipped with Ethernet backplane ports. This enables the chassis to support a variety of networking configurations. Installing an iConverter copper-to-fiber module and a four-port switch module provides a fiber uplink and five 10/100 user ports. A fiber-to-fiber module can be used to provide an access point in a fiber ring, supporting four 10/100 user ports.
In Enterprise networks, the 2-Module Chassis can be used to extend a fiber network connection across a campus or to add a node to an existing fiber ring. The 2-Module Chassis provides a carrier-grade solution; combining media conversion with a managed, compact edge switch.
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
Product Type: Switch Chassis
Additional Warranty Information:
Free 24/7 Technical Support
Country Of Origin: United States
Brand Name: Omnitron Systems
Form Factor: Rack-mountable
Manufacturer: Omnitron Systems
Product Model: 8231-1
Product Name: iConverte 8231-1 Module Power Chassis
Product Line: iConverter
Manufacturer Part Number: 8231-1
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- iConverte 8231-1 Switch Chassis
- User Manual
- 2 x AC Power Cord (16.5 watts)
Limited Warranty: Lifetime
Weight (Approximate): 2.50 lb
