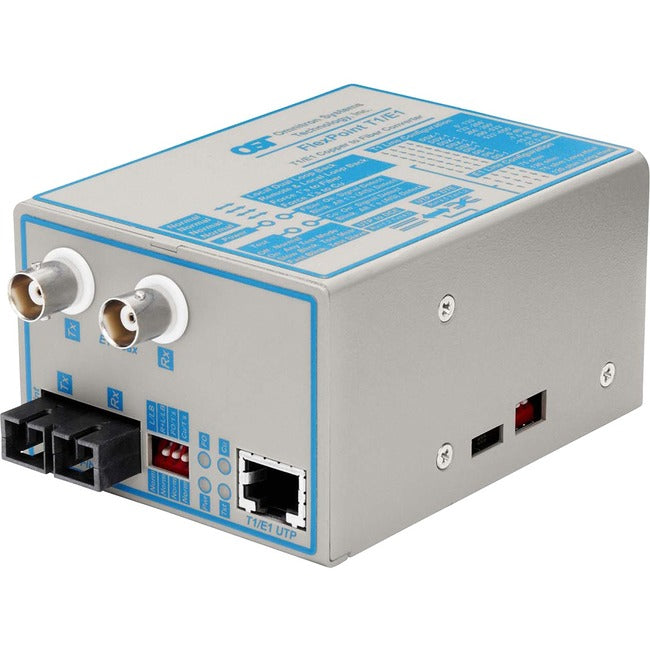

Omnitron Systems FlexPoint T1/E1 Copper to Fiber Media Converter
The FlexPoint T1/E1 is a twisted pair to fiber media converter and T1/E1 distance extender. It supports ANSI, AT&T, ITU and ETSI standards. The converter provides support for line codes such as AMI, B8ZS and HDB3. The T1/E1 line codes and line lengths are configured using easy to arrange dip switches located on the FlexPoint T1/E1 media converter.
The FlexPoint offers several mounting options. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in the 14-unit FlexPoint Powered Chassis which is available with redundant 110/220V AC or 48V DC power supplies.
- Expand your network capabilities with this 2 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With T1/E1 technology get up to 2.048Mbps (E-carrier) or 1.544Mbps (T-carrier) data transfer rate over service provider link
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
Product Type: Transceiver/Media Converter
Country Of Origin: United States
Brand Name: Omnitron Systems
Form Factor: Rack-mountable
Manufacturer: Omnitron Systems
Product Name: FlexPoint T1/E1 Copper to Fiber Media Converter
Product Line: FlexPoint
Manufacturer Part Number: 4490-1
Manufacturer Website Address: http://www.omnitron-systems.com
Limited Warranty: Lifetime
Weight (Approximate): 8 oz
