Omnitron Systems 100Base-Tx to 100Base-Fx Managed Ethernet Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - SimplexSC Port - Single-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 24.85 Mile - Rack-mountable

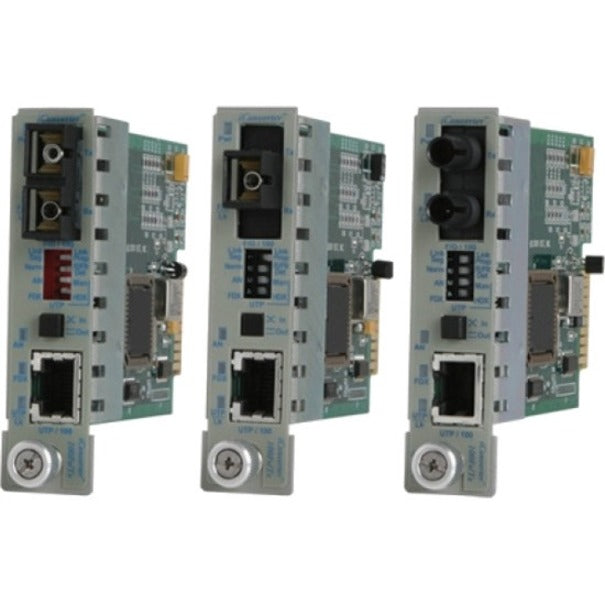

The iConverter 100Fx/Tx managed media converters are members of the modular iConverter product family, and provide 100BASE-TX UTP to 100BASE-FX fiber conversion.
The iConverter 100Fx/Tx models are available with multimode, single-mode and single-fiber options. They support ST, SC and LC connectors. The UTP port supports 100BASE-TX in either Full or Half-Duplex mode. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.
The 100Fx/Tx features user-selectable Link Propagate, Link Segment, Remote Fault Detection and Symmetrical Fault Detection modes to facilitate quick fault detection, isolation and reporting.
iConverter 100Fx/Tx modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC po
