Omnitron Systems 10/100Base-TX to 100Base-X Ethernet Media Converters with PoE Powering

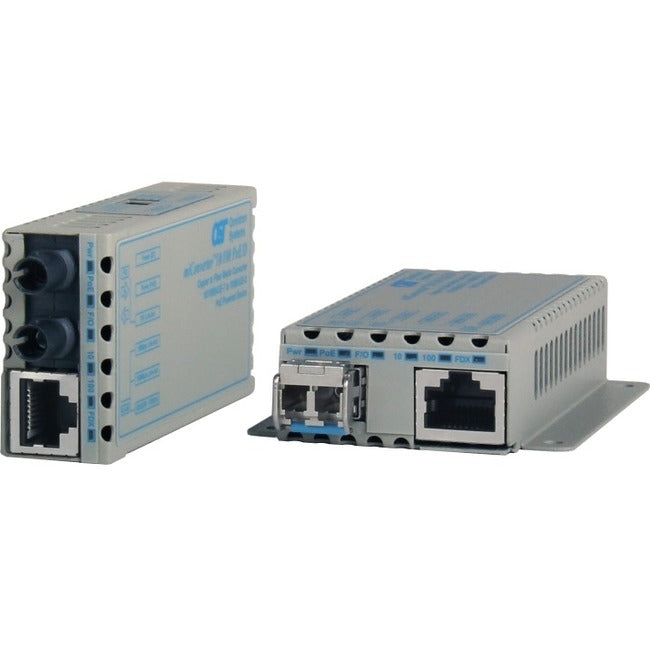

The miniature miConverter™ 10/100 PoE/D is a rate-switching 10/100 RJ-45 copper to 100BASE-X fiber media converter that can be powered with Power over Ethernet (PoE) when connected to PoE switches and midspans. It can also be powered with DC power or AC power with an external power adapter. The miConverter 10/100 PoE/D provides reliable and cost-effective fiber extension in a variety of FTTx applications, including fiber to the desktop and Fiber to the Premises.
The miConverter 10/100 PoE/D features fixed fiber connectors and Small Form Pluggable (SFP) transceivers. ST, SC and LC fixed fiber connectors support multimode, single-mode, and single-mode single-fiber. 100BASE-X SFP transceivers enable adaptability to different fiber types and wavelengths, including Coarse Wave Division Multiplexing (CWDM) wavelengths to increase the bandwidth capacity of fiber infrastructure.
The RJ-45 port can auto-negotiate by detecting the speed and duplex-mode of the connected device. Upon connection to the UTP device, the RJ-45 port speed adjusts to either 10Mbps or 100Mbps, and the duplex-mode adjusts to either Full-Duplex or Half-Duplex. Auto-crossover enables the connection to workstations (MDI port) or hub/switches (MDI-X port) without requiring a crossover cable.
DIP-switches enable manual configuration of the RJ-45 port speed and duplex modes, and configuration of Link Modes (fault-detection capabilities) that enable in the identification and isolation of link failures.
Diagnostic data is provided through front-panel LED indicators that assist in network installation and maintenance. The LEDs display the availability of power, port activity, link status, and the speed and duplex modes of the RJ-45 port.
The miConverter 10/100 PoE/D features power redundancy with AC or DC external power options when used with PoE powering. AC power adapter is available in US, Universal and Country/Region specific models. Country/Region specific models feature optional interchangeable connectors, allowing for compatibility with electrical outlet types found around the world. DC power up to 60VDC is available with a terminal connector option.
The miConverter 10/100 PoE/D is available with or without integrated mounting brackets. miConverter 10/100 PoE/D models without integrated mounting brackets can be installed in the miConverter 18-Module Powered Chassis.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Country Of Origin: United States
Product Series: 10/100 PoE/D
Brand Name: Omnitron Systems
Form Factor: Internal
Manufacturer: Omnitron Systems
Product Model: 1102D-0-x
Product Name: 10/100Base-TX to 100Base-X Ethernet Media Converters with PoE Powering
Product Line: miConverter
Manufacturer Part Number: 1102D-0-11
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- 10/100Base-TX to 100Base-X Ethernet Media Converters with PoE Powering
- US Power Adapter
Limited Warranty: Lifetime
Weight (Approximate): 4 oz
