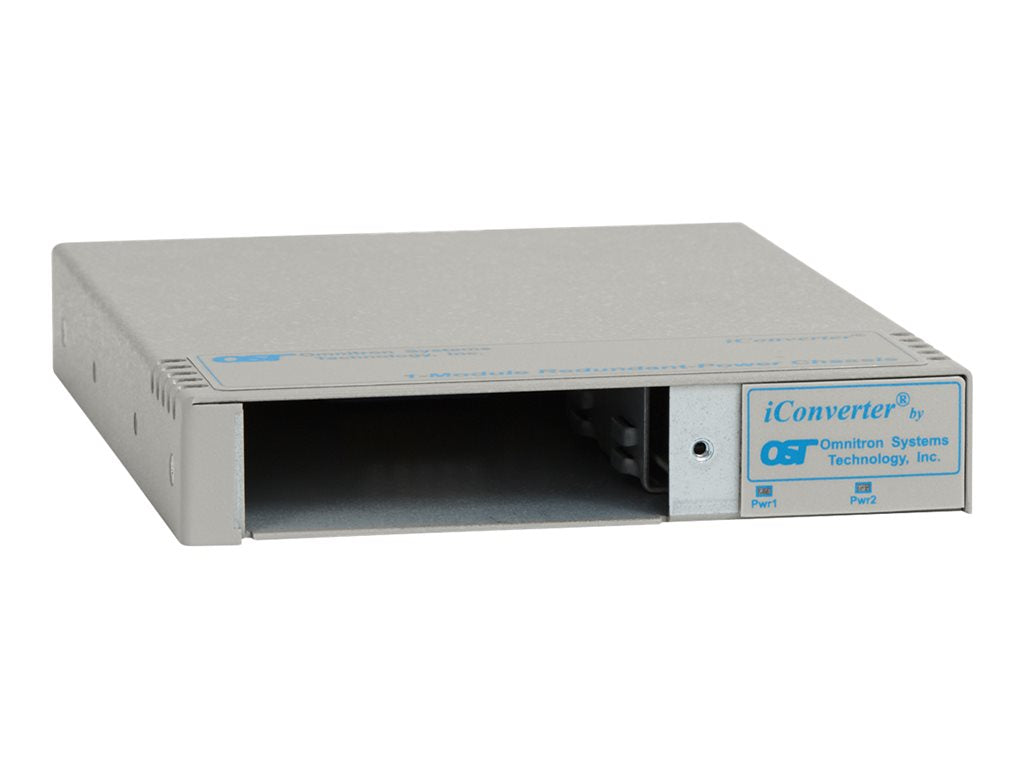

Omnitron iConverter 1-Module Redundant Power Chassis - Power enclosure - 9 - 24 V - Ethernet 10/100
- Supports the following Power Options: Power-over-Ethernet (IEEE 802.3af PoE/PD), Low Voltage DC Power 9-24VDC (terminal or universal AC/DC adapter available), High Voltage DC Power 24-60VDC
- Two (2) optional 10/100 configurable Ethernet ports
- Four (4) optional contact closure alarm sensors
- Managed via an installed iConverter Media Converter with Integrated Management (such as a 10/100M2)
- Management supports Monitoring, Remote Configuration and Trap Notification
- Features Dying Gasp Trap support
The iConverter 1-Module Redundant Power Chassis is ideal for mission-critical Customer Premises (CP) Ethernet services, and in applications where the monitoring of external events is required.
The chassis supports multiple power sources, configurable 10/100 Ethernet ports and a wide variety of alarm options.
Power source options feature load-sharing combinations of Power-over-Ethernet (PoE), 9-24VDC and 24-60VDC. The PoE option is designed for applications where the converter chassis must be physically located where power is unavailable or is costly to install. Power is provided to one of the chassis' optional 10/100 network ports from a Power Source Equipment (PoE/PSE) such as a switch or a Mid-Span power injecting device.
The 9-24VDC power sources can be connected via barrel-style or terminal connectors. The barrel-style connector versions are shipped with US or universal AC/DC power adapters.
The two optional 10/100 RJ-45 network ports are available with PoE optional on one of the ports. Auto-negotiation, 10/100 and Half/Full-Duplex modes can be configured for each port.
Four optional contact-closure alarm sensors are available for monitoring external events. These sensors can be used to monitor a backup battery, the state of an enclosure's door or other environmental device states. An SNMP trap can be selectively generated upon the occurrence of any of these monitored events.
The chassis can be remotely managed when an iConverter module with integrated management (such as the 10/100M2) is installed in the chassis. The management module provides monitoring, remote configuration and trap notification.
The monitoring of external events, redundant power, PoE and 10/100 network ports make the iConverter 1-Module Redundant Power Chassis ideal for mission-critical Service Provider and Enterprise network applications.
