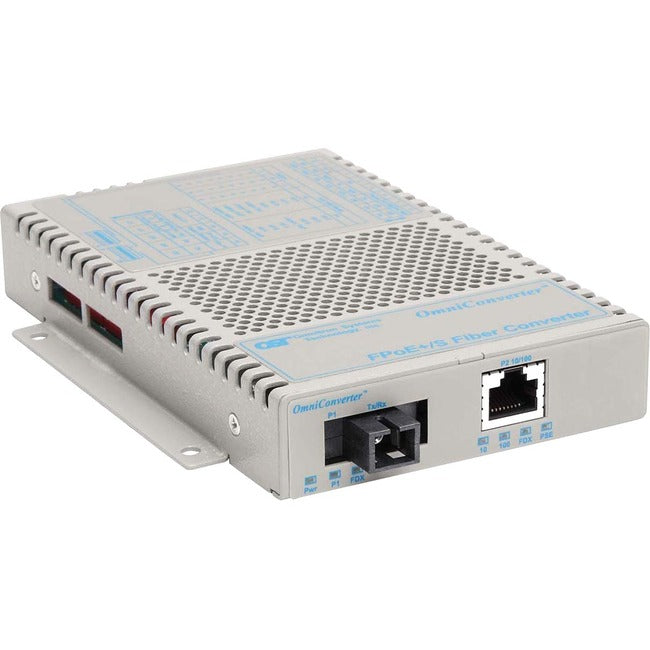

OmniConverter 10/100 PoE+ Ethernet Single-Fiber Media Converter Switch RJ45 SC Single-Mode BiDi 20km
The OmniConverter FPoE+/S models are multi-port media converters that convert 10/100BASE-T UTP to 100BASE-FX fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports a variety of port configurations, including single or dual UTP and SFP ports.
The OmniConverter media converters can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. They are especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Can be placed on Desktop surface for standalone installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FPoE+/S
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 9330-1-x
Product Name: OmniConverter FPoE+/S PoE+ SC Single-Mode Single-Fiber 13/15 20km US AC Powered
Package Type: Retail
Product Line: OmniConverter
Manufacturer Part Number: 9330-1-11
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- OmniConverter FPoE+/S PoE+ SC Single-Mode Single-Fiber 13/15 20km US AC Powered
- US Power Supply - 100-240Volt / 50-60Hz
- US AC Power Cord
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
