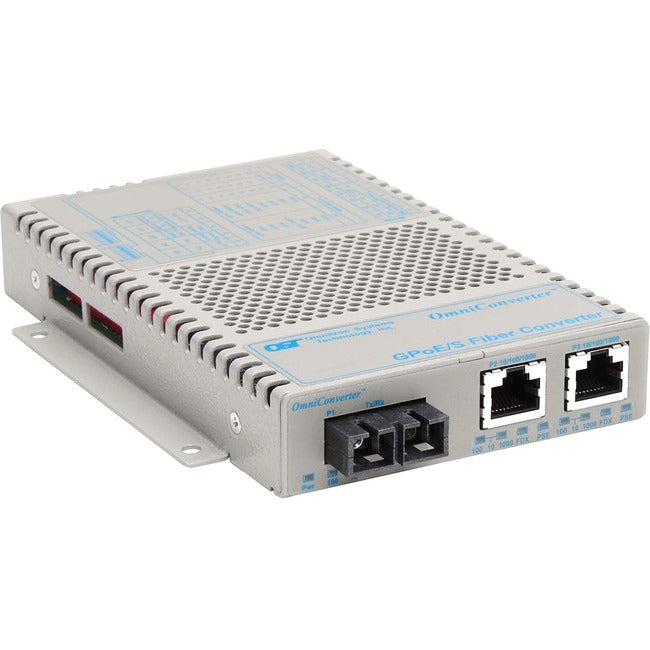

OmniConverter 10/100/1000 PoE Gigabit Ethernet Fiber Media Converter Switch RJ45 SC Multimode 550m
The OmniConverter GPoE/S are multi-port media converters that convert 10/100/1000BASE-T UTP to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (802.3af PoE). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.
The OmniConverter functions as a PoE mini-switch and supports a variety of port configurations, including single or dual RJ-45 and SFP ports.
The RJ-45 ports can power PDs such as VoIP phones, wireless access points, network cameras, building access and automation equipment. The Omniconverter is especially useful at powering PDs in hard-to-reach locations with limited access to AC power outlets (ceilings, closets, etc.). The cost of bringing electrical power to each device is eliminated by powering the equipment through the UTP cable.
- Supports IEEE 802.3af PoE standards on one or two RJ-45 copper ports
- Supports 1000BASE-X fixed-fiber and 1000BASE-X or 100BASE-FX SFP transceivers
- Redundant protected fiber link option (using dual SFP ports models)
- Compatible with legacy pre-IEEE standard powered devices
- Configurable PoE power reset
- Available in AC and DC models
- Integrated wall mount brackets
- Commercial (0" to 50"C), wide (-40" to 60"C) and extended (-40" to 75"C) operating temperature ranges
- Lifetime Warranty and free 24/7 Technical Support
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Rackmountable feature for convenient and safe installation of device
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: GPoE/S
Brand Name: Omnitron Systems
Form Factor: Wall Mountable
Manufacturer: Omnitron Systems
Product Model: 9402-0-x
Product Name: OmniConverter GPoE/S 2x PoE SC Multimode 550m DC Powered
Package Type: Retail
Product Line: OmniConverter
Manufacturer Part Number: 9402-0-29
Manufacturer Website Address: http://www.omnitron-systems.com
Package Contents:
- OmniConverter GPoE/S 2x PoE SC Multimode 550m DC Powered
- User Manual
Limited Warranty: Lifetime
Weight (Approximate): 1 lb
