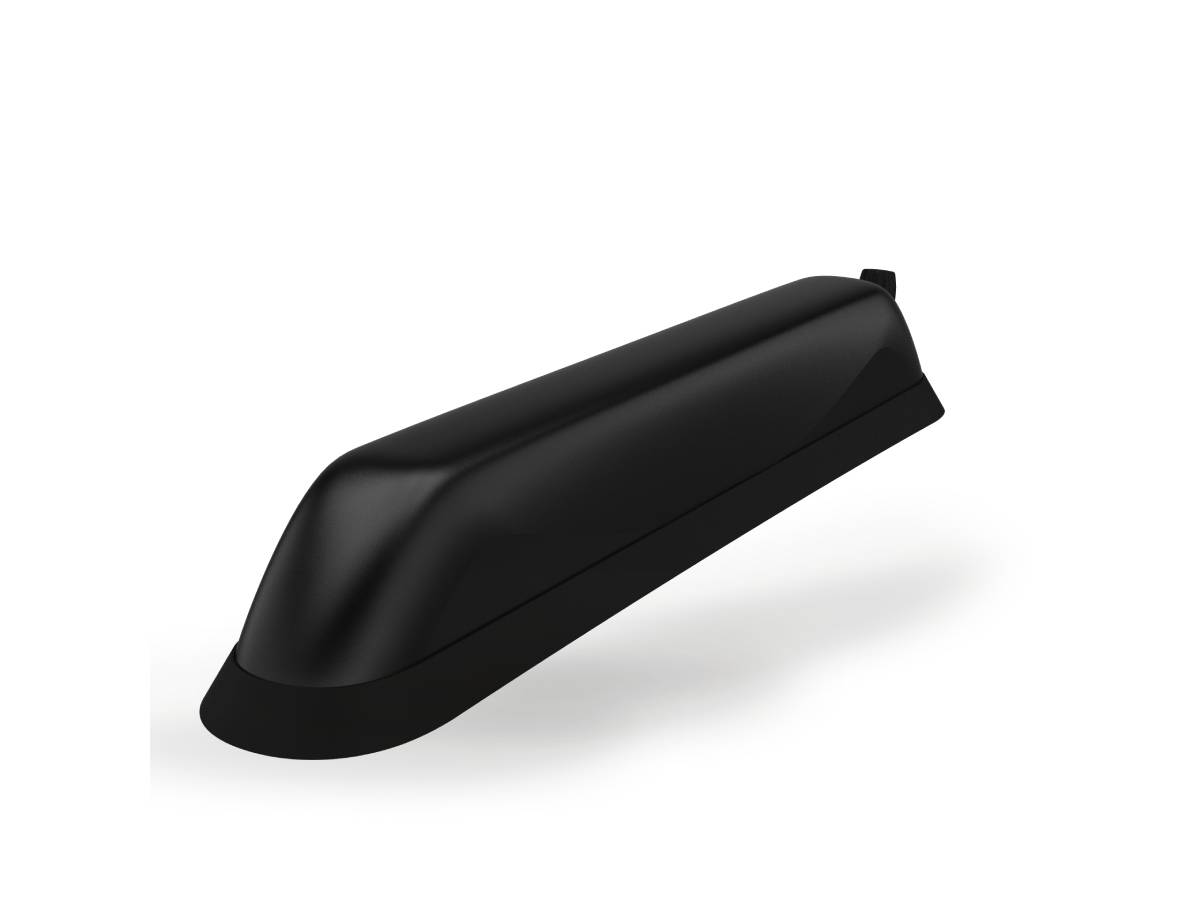

The REEF SHARKEE GPSD4-7-49-D from PANORAMA ANTENNAS, INC. is a high-performance omni-directional antenna engineered for professional and industrial connectivity. Its compact, low-profile sharkfin design delivers robust multi-band coverage and optional GPS positioning for demanding deployments.
-
Length: 14.4 inches
-
Diameter: 2.05 inches
-
Frequency Coverage: 698-960 MHz and 1427-4900 MHz (4G LTE / 5G NR)
-
Multi-band Architecture: 4x primary LTE/NR elements with up to 4x optional WiFi 6e elements (2.4/5.150-7.125 GHz)
-
GPS/GNSS Options: Optional L1-only or L1/L5 module for precise positioning
-
Housing: Robust black sharkfin enclosure for durability and easy integration
Designed to enhance network reliability across multiple bands, this antenna is ideal for fleets, industrial sites, and mobile equipment that rely on stable 4G/5G connectivity. The omni-directional pattern reduces dead zones, while the optional WiFi 6e and GPS/GNSS capabilities expand use cases to high-speed local networks and accurate positioning in challenging environments. The discreet 14.4-inch length and 2.05-inch diameter make installation straightforward without compromising aesthetics or airflow.
Specs
-
Length: 14.4 inches
-
Diameter: 2.05 inches
-
Frequency Coverage: 698-960 MHz; 1427-4900 MHz
-
WiFi Support: Optional WiFi 6e elements (2.4/5.150-7.125 GHz)
-
GPS/GNSS: Optional L1 or L1/L5 module
-
Color: Black
-
Brand: PANORAMA ANTENNAS, INC.
Frequently Asked Questions
-
What frequency bands does this antenna support? It covers 698-960 MHz and 1427-4900 MHz for 4G LTE and 5G NR.
-
Does it support WiFi connectivity? Yes, there are optional WiFi 6e elements operating in 2.4/5.150-7.125 GHz.
-
Is GPS functionality included? GPS/GNSS modules are optional, available in L1-only or L1/L5 configurations.
-
What are the physical dimensions? The antenna measures 14.4 inches in length and 2.05 inches in diameter, with a black sharkfin housing.
-
What environments is this antenna suitable for? It is designed for professional, industrial, and mobile deployments needing reliable multi-band connectivity and a robust build.
