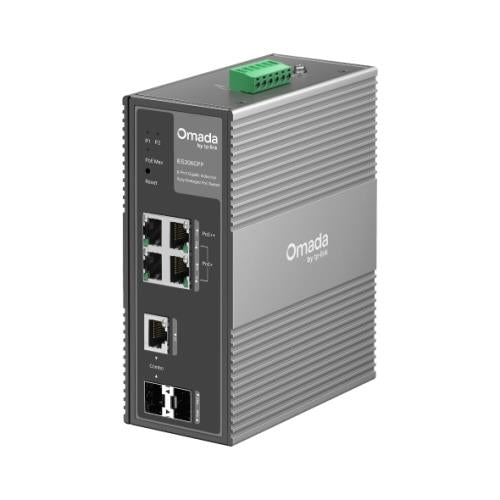

The Omada 6-Port Gigabit Industrial Easy Managed Switch from TP-LINK USA CORPORATION delivers rugged, centralized PoE networking designed for harsh industrial environments. It combines high-power PoE, flexible port options, and cloud-friendly management for reliable, scalable connectivity.
-
Industrial-grade enclosure: Fanless aluminum housing rated to operate from -40°C to 75°C for demanding environments.
-
Versatile port configuration: 1 PoE++ Gigabit port, 3 PoE+ Gigabit ports, 1 SFP slot, and 1 Combo Gigabit RJ45/SFP port for flexible uplinks.
-
High PoE power: Up to 120 W total PoE power, supporting 802.3af/at/bt Type 3 devices.
-
Redundant power input: Dual 12–57 V DC inputs (power adapter not included) for reliability.
-
Centralized, scalable management: Manageable via the Omada SDN Controller and Omada App for centralized control and easy rollout.
-
Advanced network features: Flow control, loopback detection, port mirroring, Link Aggregation (LAG), VLAN, IGMP snooping, QoS, and storm control to protect performance.
-
Flexible mounting options: DIN-rail and wall mounting to fit a wide range of industrial enclosures.
The switch is built to keep critical operations online—from manufacturing floors with heavy equipment to campus-style surveillance networks. The high-power PoE ports simplify device deployment by powering IP cameras, wireless access points, and other PoE devices directly from the switch, reducing cabling and power distribution challenges. A fiber-friendly uplink via SFP and the combo RJ45/SFP port provides distance flexibility, while centralized Omada management keeps firmware, configurations, and monitoring in one place, easing maintenance and scalability.
Specifications
-
Ports: 1 PoE++ Gigabit, 3 PoE+ Gigabit, 1 SFP, 1 Combo Gigabit RJ45/SFP
-
PoE Standards: 802.3af/at/bt Type 3
-
PoE Power: Up to 120 W
-
Operating Temperature: -40°C to 75°C
-
Mounting: DIN-rail and wall mounting
-
Power Input: Dual 12–57 V DC (power adapter not included)
-
Does the switch include a power adapter? No, the power adapter is not included and must be purchased separately.
-
What is the maximum PoE power output? Up to 120 W total PoE power, depending on input power configuration.
-
Can this switch be managed remotely? Yes — through the Omada SDN Controller and Omada App for centralized control and monitoring.
-
Is the switch suitable for harsh environments? Yes. It operates from -40°C to 75°C and uses a rugged aluminum enclosure with fanless cooling for reliability.
-
What mounting options are available? It supports both DIN-rail and wall mounting to fit various installation scenarios.
