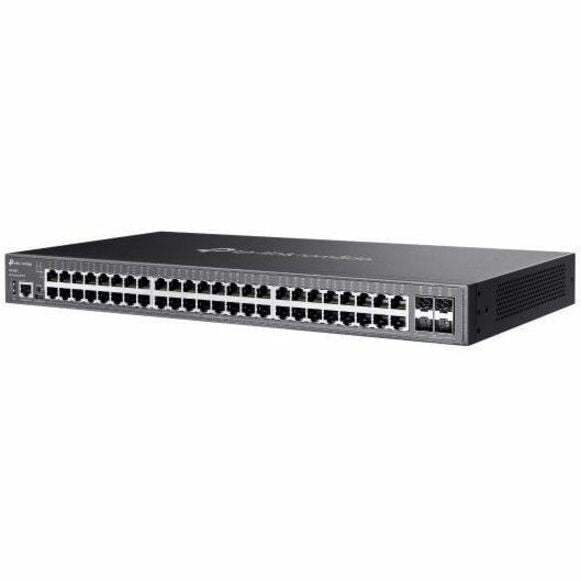

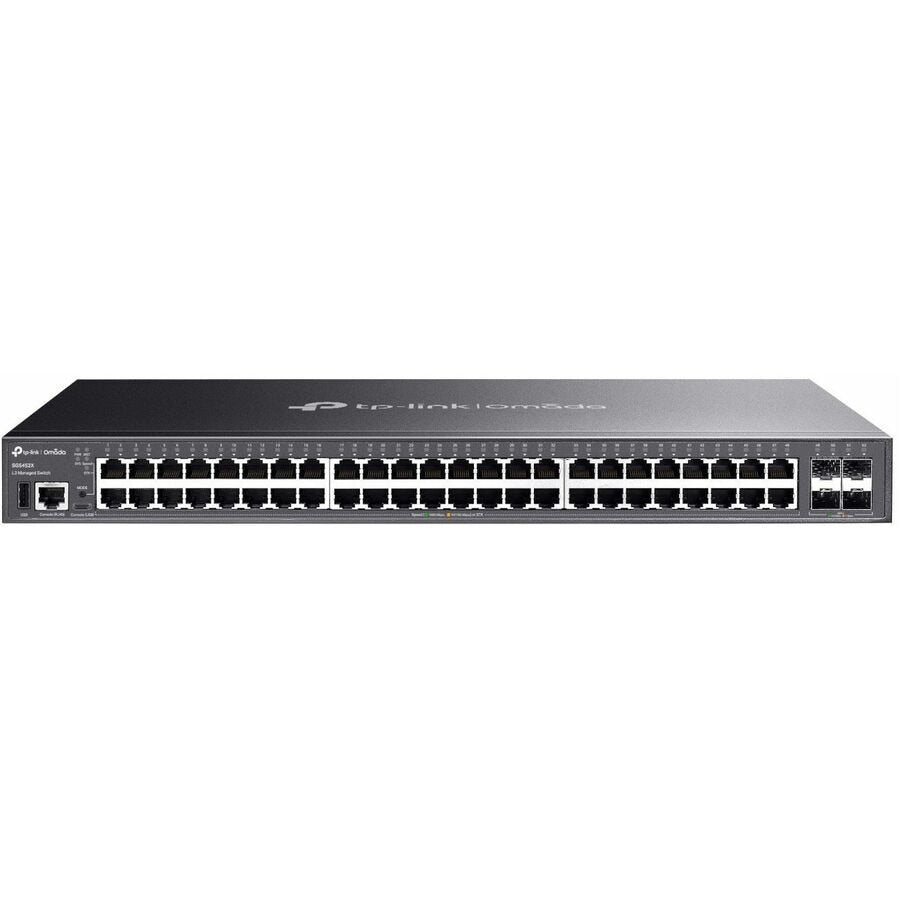

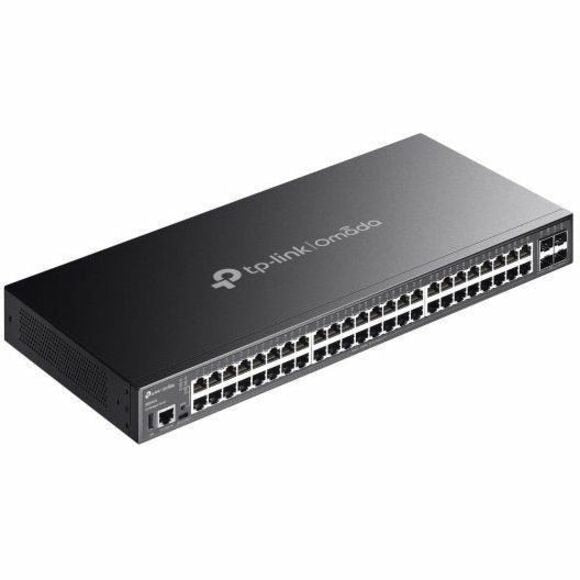

The Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch SG5452XMPP is a high-performance, scalable network core designed for mid-to-large enterprises. Built to power a secure, future-ready wired backbone, it combines robust PoE++ delivery with advanced Layer 3 routing and centralized Omada management.
-
Port Configuration: 40 Gigabit PoE+ ports + 8 Gigabit PoE++ ports, each PoE++ port delivering up to 90 W for high-demand devices.
-
High-Speed Uplinks: 4 x 10G SFP+ uplink slots for fast aggregation, optional fiber connectivity, and seamless network expansion.
-
Power Budget: Total PoE budget of 770 W to support dense deployments of cameras, wireless APs, and other PoE devices.
-
Management & Automation: Centralized control via Omada SDN Controller with stacking, RIP, OSPF, and static routing for streamlined operations.
-
Advanced Features: ERPS, OAM, DDM, sFlow, VLANs, QoS, ACLs, 802.1x security, and dual image/configuration for resilience.
-
Security & Access: 802.1x authentication with Radius/Tacacs+ support to protect network access.
-
Build & Form Factor: 1U, 19-inch rack-mountable steel chassis designed for durability and efficient space utilization.
-
Connectivity: RJ45 and USB Type-C console ports plus a USB 2.0 port for flexible management and configuration.
-
Routing & IPv6: Layer 3 capabilities with IPv6 support, enabling modern, scalable network design.
This switch delivers reliable PoE power to a growing fleet of IP cameras, VoIP phones, and wireless access points while enabling centralized, scalable network administration. Its stacking capability and robust routing features make it a solid choice for secure, high-capacity networks that require ease of management and future-proof expansion.
Specs
-
Ports: 40 x Gigabit PoE+ + 8 x Gigabit PoE++
-
Uplinks: 4 x 10G SFP+ slots
-
PoE Power Budget: 770 W total
-
Management: Omada SDN Controller, CLI, SNMP
-
Routing: RIP, OSPF, Static Routing
-
Security: 802.1x, Radius/Tacacs+ Authentication
-
Form Factor: 1U, 19-inch rack-mountable steel case
-
Management Ports: RJ45 console, USB Type-C console, USB 2.0
-
Standards & Features: IPv6 support, ERPS, OAM, DDM, sFlow, VLANs, QoS, ACL
-
What is the maximum PoE power per port? Up to 90 W per Gigabit PoE++ port.
-
Can this switch be stacked with others? Yes, it supports stacking for scalable network deployment.
-
What management protocols are supported? Includes Omada SDN Controller, CLI, SNMP, and more.
-
Is the switch compatible with IPv6? Yes, it supports IPv6 networking.
-
What routing protocols does it support? RIP, OSPF, and static routing are included.
