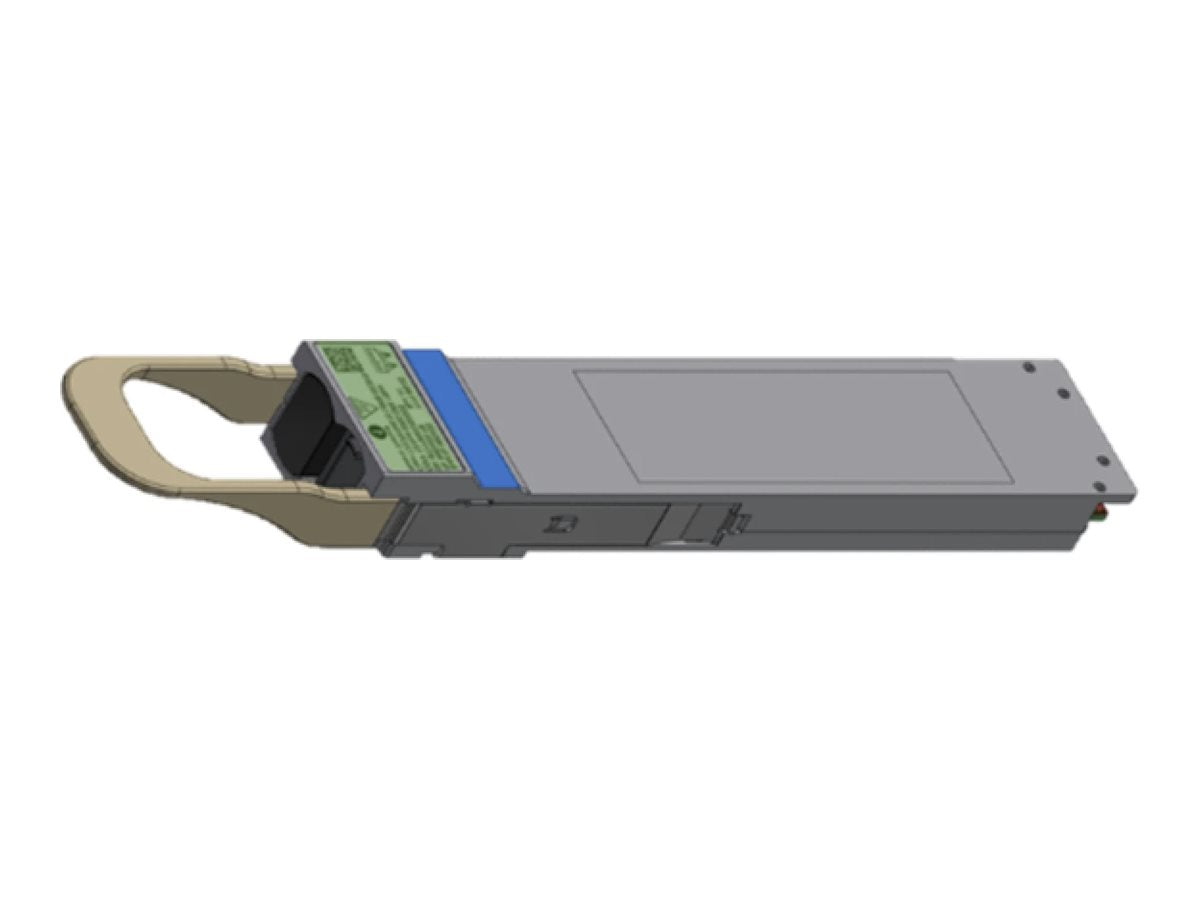

NVIDIA - OSFP transceiver module - 400GbE - Ethernet 400GBASE-SR4 - MPO-12/APC multi-mode - up to 164 ft - 850 nm
-
High-performance connectivity
The OSFP transceiver module facilitates robust wired connections, providing a data transfer rate of 400 Gbps utilizing an advanced line coding format.
-
Energy-efficient operation
With a power consumption of only 8.5 watts, this module minimizes energy usage while delivering significant networking capabilities.
-
Versatile temperature range
Designed to function effectively in diverse environments, it maintains performance across a temperature spectrum from 0°C to 70°C.
-
Easy integration
The hot-pluggable feature ensures that installation and upgrades can be executed without requiring system downtime.
-
Environmentally compliant
The module meets RoHS and CMIS 4.0 standards, promoting responsible usage of materials and compliance with environmental regulations.
The NVIDIA MMA4Z00-NS400-T OSFP transceiver module offers performance for 400 Gigabit Ethernet applications. Designed for wired connectivity, this plug-in module utilizes advanced PAM4 line coding to achieve data transfer rates of 400 Gbps. With its Vertical Cavity Surface Emitting Laser (VCSEL) technology, it ensures reliable signal transmission over distances of up to 50 m. The module is hot-pluggable, allowing for easy installation and maintenance without disrupting network operations. Operating within a temperature range of 0°C to 70°C, this transceiver module is well-suited for various environments. Its compliance with RoHS and CMIS 4.0 standards reinforces its commitment to environmental responsibility. With a power consumption of only 8.5 watts, it offers an energy-efficient solution for high-performance networking needs.
- Supports data transfer rates of 400 Gbps
- Hot-pluggable design for easy installation
- Operates within 0°C to 70°C temperature range
- Complies with RoHS and CMIS 4.0 standards
- Max transfer distance of 50 m
