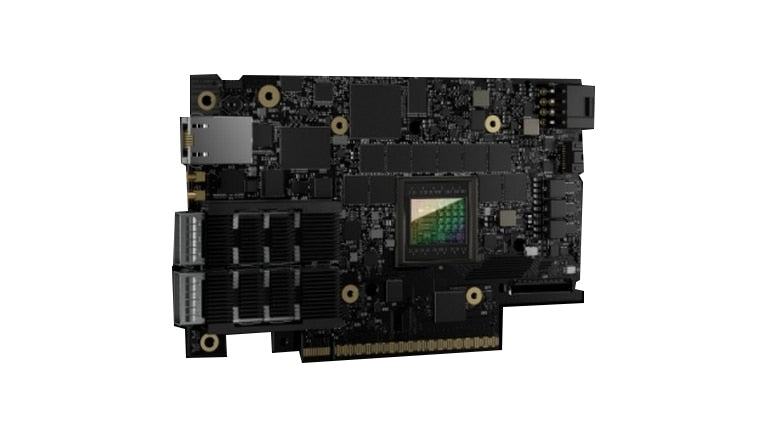

Designed for modern data centers and cloud infrastructures, the NVIDIA BlueField-3 B3210E E-Series FHHL DPU delivers high-performance data processing and network offload in a compact FHHL form factor. It’s engineered for enterprises that require reliable, scalable infrastructure with strong security and flexible deployment.
-
Network Interface: Dual-port QSFP112 supporting 100GbE and HDR100 IB
-
CPU Architecture: 16 Arm cores for efficient data handling
-
On-Board Memory: 32GB DDR for fast data access
-
PCIe Connectivity: PCIe Gen5.0 x16 with extension option for flexible deployment
-
Security: Crypto-enabled features and Integrated BMC for hardware-level protection
-
Form Factor: FHHL with Tall Bracket for versatile installation
This DPU offloads critical data-plane tasks from host CPUs, reducing latency and freeing CPU cycles for application workloads. The combination of 100GbE and HDR100 IB networking enables high-throughput, low-latency connections across data-center fabrics, while built-in security capabilities and a dedicated BMC help safeguard firmware and sensitive data. The PCIe Gen5.0 interface with extension support ensures future-proof scalability and easy integration with modern servers and storage systems.
Specs
-
Model: BlueField-3 B3210E E-Series FHHL DPU
-
Network: 100GbE, HDR100 IB
-
Ports: Dual QSFP112
-
CPU: 16 Arm cores
-
Memory: 32GB DDR
-
PCIe: Gen5.0 x16 with extension
-
Security: Crypto Enabled, Integrated BMC
-
Form Factor: FHHL, Tall Bracket
FAQ
-
What is the primary use of this DPU? It is designed for advanced data processing and networking in enterprise and cloud environments.
-
Does it support PCIe Gen5.0? Yes, it supports PCIe Gen5.0 x16 with an extension option.
-
How much memory does it have? It includes 32GB of on-board DDR memory.
-
What network speeds are supported? It supports 100GbE and HDR100 IB.
-
Is the device equipped with security features? Yes, it features integrated BMC and crypto capabilities for enhanced security.
