The NETGEAR GS348PP-100NAS 48-Port Gigabit Ethernet Unmanaged PoE+ Essentials Switch is perfect for businesses, schools, and organizations that need high-density PoE+ connectivity with massive power budget for demanding network devices. Our solution delivers:
-
48 port PoE switch that provides maximum connectivity for wireless access points and IP devices
-
Unmanaged PoE+ capabilities delivering plug-and-play simplicity with advanced power delivery
-
Gigabit ethernet performance ensuring high-speed data transmission across all ports
-
High power budget supporting power-hungry devices like Wi-Fi 6 access points and PTZ cameras
Key Features
-
48 gigabit PoE+ ports supporting IEEE 802.3at/af power standards
-
760W total power budget providing ample power for high-consumption devices
-
Unmanaged operation requiring zero configuration for immediate deployment
-
Auto-negotiation technology optimizing speed and duplex settings automatically
-
Energy-efficient design with intelligent power management features
-
Fanless operation ensuring silent performance for office environments
-
Desktop or rack mounting providing flexible installation options
-
Lifetime hardware warranty ensuring long-term reliability and support
Technical Specifications
| Manufacturer |
NETGEAR |
| Model Number |
GS348PP-100NAS |
| Type |
48-Port Gigabit Ethernet Unmanaged PoE+ Switch |
| Port Configuration |
48 x 10/100/1000BASE-T PoE+ ports |
| PoE Standard |
IEEE 802.3af/at (PoE/PoE+) |
| PoE Power Budget |
760W total power |
| PoE+ Power Per Port |
30W maximum per port |
| Switching Capacity |
96 Gbps |
| Forwarding Rate |
71.4 Mpps |
| MAC Address Table |
8,000 entries |
| Buffer Memory |
1.5 MB |
| Jumbo Frame Support |
Up to 9K bytes |
| Auto-Negotiation |
10/100/1000 Mbps auto-sensing |
| Auto-MDIX |
Automatic cable type detection |
| Flow Control |
IEEE 802.3x full-duplex flow control |
| LED Indicators |
Power, Link/Activity, PoE status per port |
| Power Consumption |
45W (without PoE), 805W (full PoE) |
| Power Supply |
External 100-240V AC adapter |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
90% non-condensing |
| Dimensions |
17.3" x 10.1" x 1.7" (440 x 257 x 43 mm) |
| Weight |
7.7 lbs (3.5 kg) |
| Mounting |
Desktop, 1U rack-mount (brackets included) |
| MTBF |
1,543,729 hours at 25°C |
| Compliance |
FCC Class B, CE, UL, Energy Star |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at |
| Warranty |
Limited lifetime hardware warranty |
| Compatible Systems |
Wireless networks, IP security systems, VoIP deployments, campus networks, business environments |
Frequently Asked Questions
Q: What makes this 48-port PoE switch ideal for high-density deployments?
A: The NETGEAR GS348PP 48 port PoE switch provides maximum port density with 760W total power budget, enabling you to power up to 48 PoE+ devices simultaneously. This makes it perfect for large wireless deployments, IP camera installations, and VoIP systems where you need to connect numerous powered devices in a single, cost-effective solution.
Q: How do the unmanaged PoE+ capabilities simplify network deployment?
A: The unmanaged PoE+ switch design provides plug-and-play operation requiring zero configuration or technical expertise. Simply connect your PoE devices, and the switch automatically detects power requirements, negotiates speeds, and begins delivering both data and power. This unmanaged operation eliminates complex setup procedures while providing enterprise-grade PoE+ functionality.
Q: What gigabit ethernet performance benefits can I expect?
A: All 48 ports deliver gigabit ethernet speeds with 96 Gbps total switching capacity and 71.4 Mpps forwarding rate. This ensures high-speed data transmission for bandwidth-intensive applications like 4K video streaming, high-resolution IP cameras, and Wi-Fi 6 access points without network bottlenecks or performance degradation.
Q: How does the high power budget support modern network devices?
A: With 760W high power budget, this switch can deliver up to 30W per port via PoE+ (IEEE 802.3at), supporting power-hungry devices like Wi-Fi 6 access points, PTZ security cameras, IP phones with color displays, and LED lighting systems. The intelligent power management ensures optimal power allocation across all connected devices.
Q: What applications benefit most from this high-port-count switch?
A: This 48-port gigabit switch excels in wireless network deployments, IP security systems, educational institutions, hotels, and large office buildings. It's particularly valuable for organizations deploying multiple access points per floor, extensive IP camera networks, or comprehensive VoIP systems requiring centralized PoE power delivery and gigabit connectivity.
Q: How energy-efficient is this switch for continuous operation?
A: The switch features Energy Star certification and intelligent power management that only supplies power when PoE devices are detected. Fanless operation at low loads reduces energy consumption, while the efficient power design minimizes heat generation. This makes it cost-effective for 24/7 operation in business environments.
Q: What installation options are available for different environments?
A: The versatile design supports both desktop placement and 1U rack mounting with included brackets. The compact form factor and fanless operation make it suitable for wiring closets, server rooms, or office environments where space and noise considerations are important factors in deployment decisions.

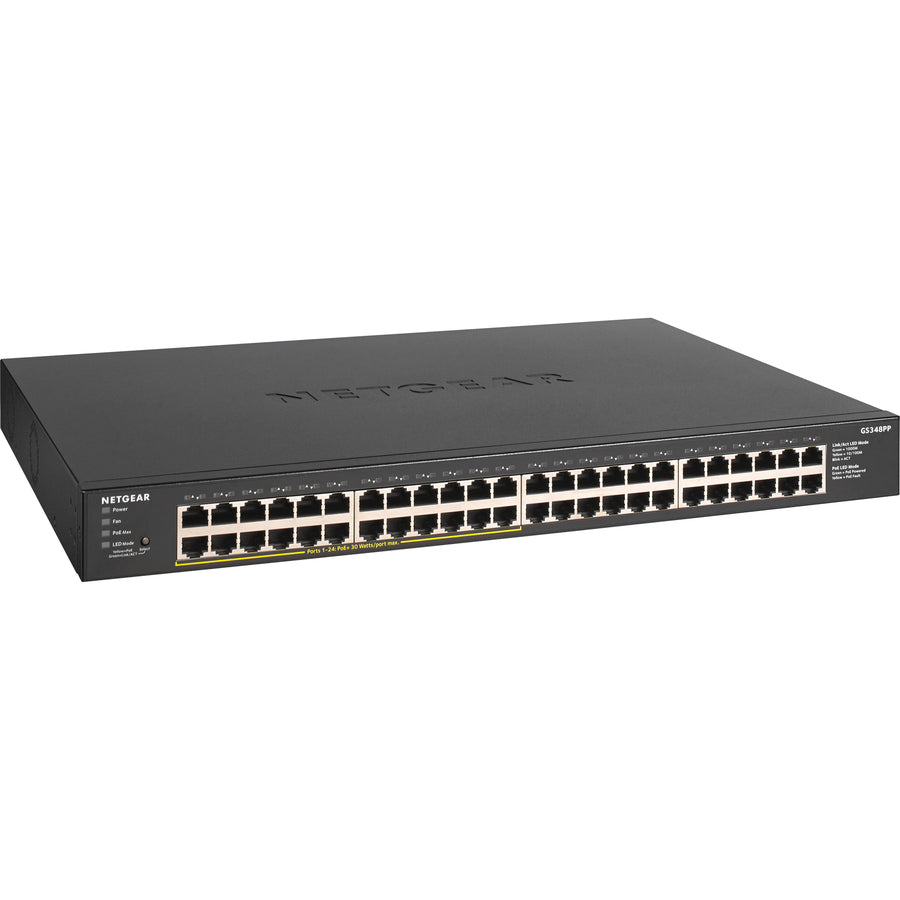

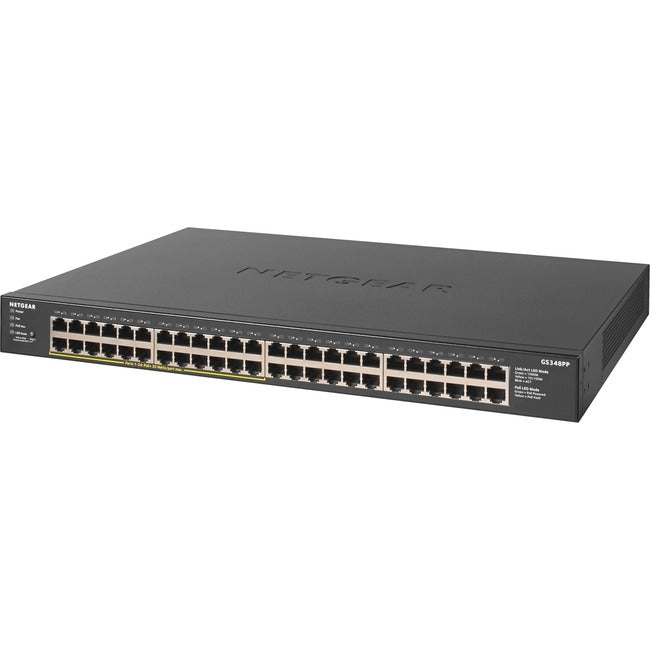

NETGEAR GS348PP-100NAS 48-Port Gigabit Ethernet Unmanaged PoE+ Switch with 760W power budget for high-density wireless and IP device deployments.
