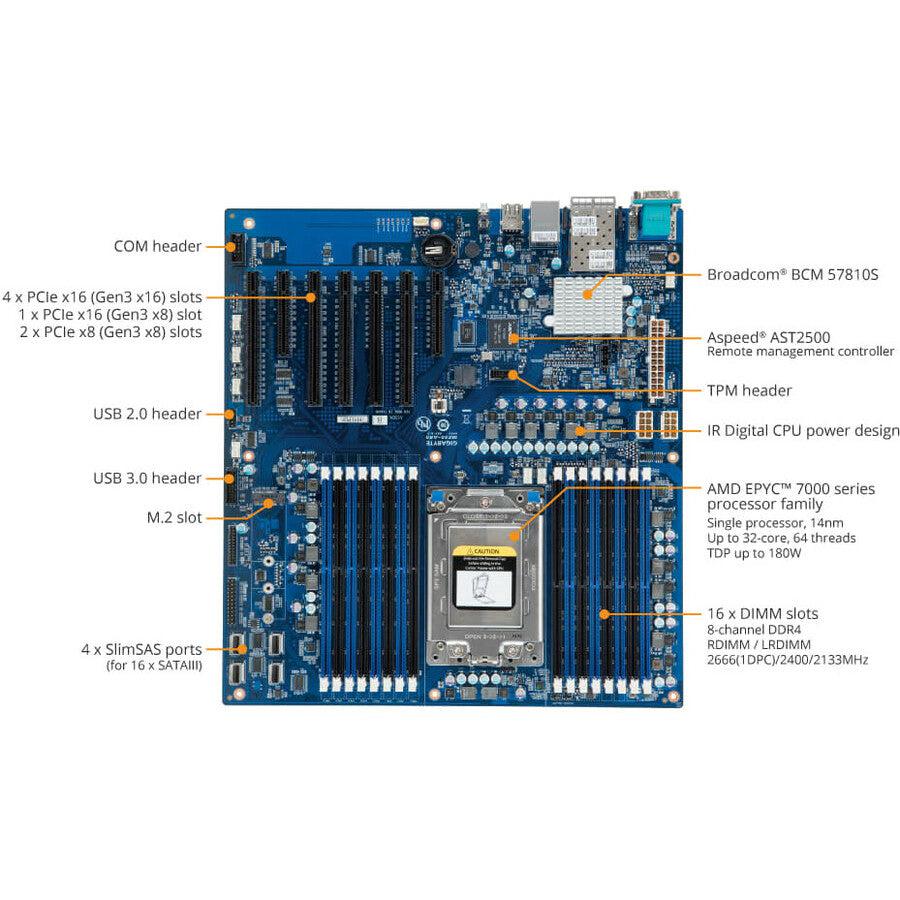

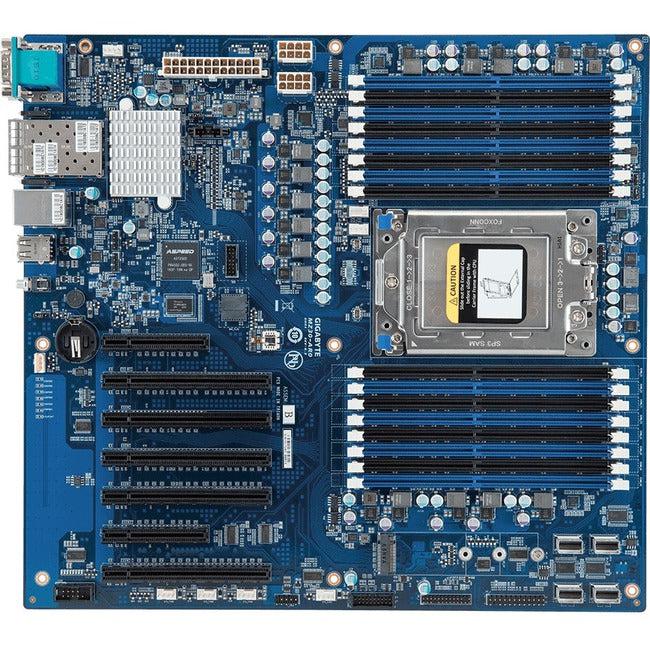

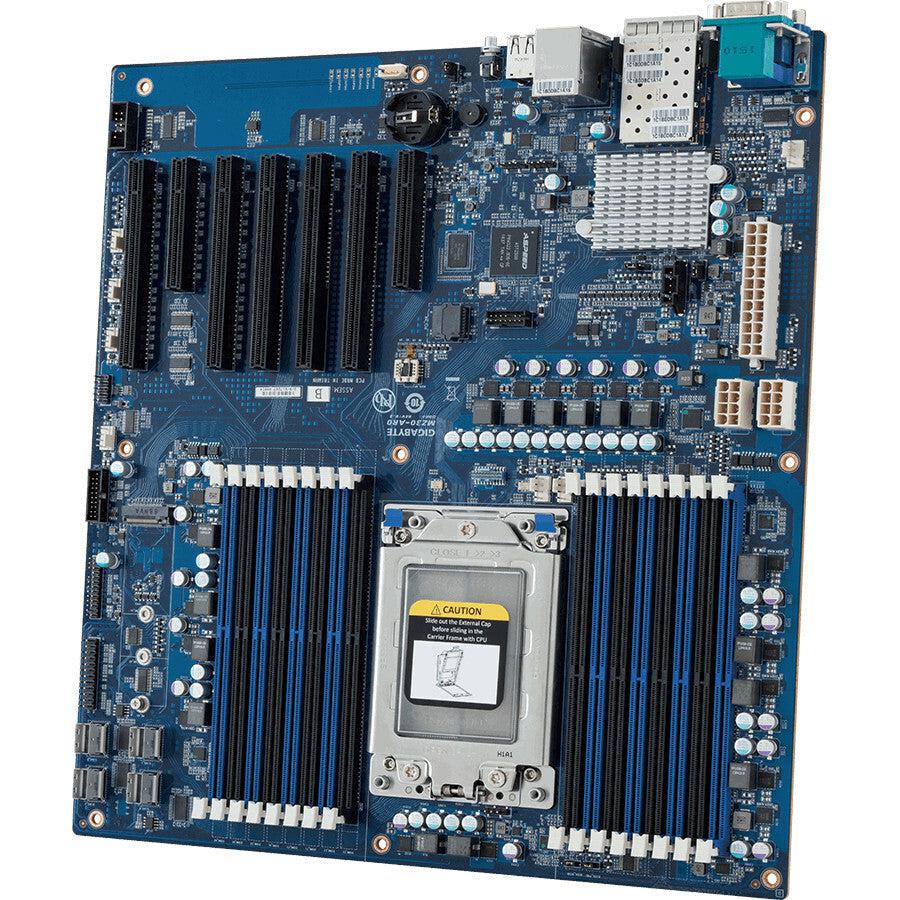

Gigabyte MZ31-AR0 Server Motherboard - AMD Chipset - Socket SP3 - Extended ATX
- AMD EPYC™ 7000 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs

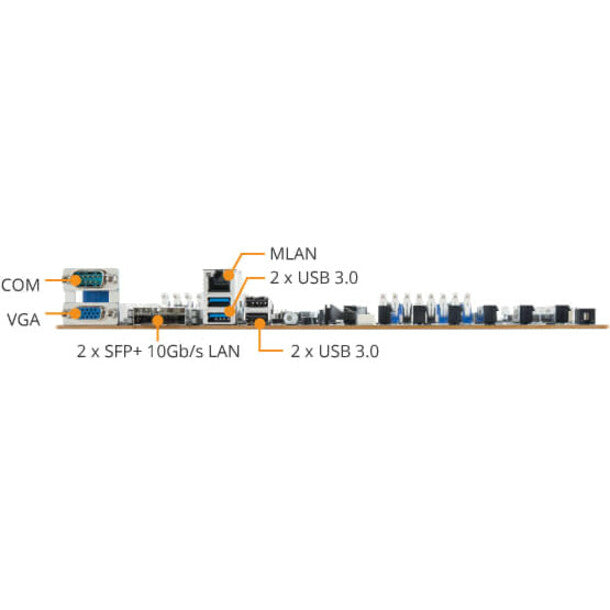

- 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
- 1 x Dedicated management port
- 4 x SlimSAS (for 16 x SATA 6Gb/s) ports
- Ultra-Fast M.2 with PCIe Gen3 x4 interface

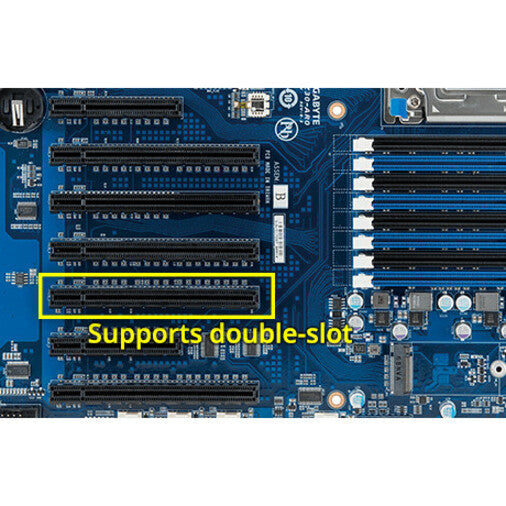

- Up to 4 x PCIe Gen3 x16 slots and 3 x PCIe Gen3 x8 slots
- Aspeed® AST2500 remote management controller
AMD EPYC™
The New x86 Option
AMD's return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE's extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
- Memory
- I/O
- Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
CPU Key Features
-
Memory Optimization
Memory speed of up to 2666MHz (at 1DPC)
Total memory capacity of 2TB supported -
PCIe Lanes
Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform -
Cores / Power
CPU power is managed at the core level, meaning that power is allocated only for specific workload needs -
Security
Proprietary AMD security on chip
Comprehensive I/O
Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor - designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.

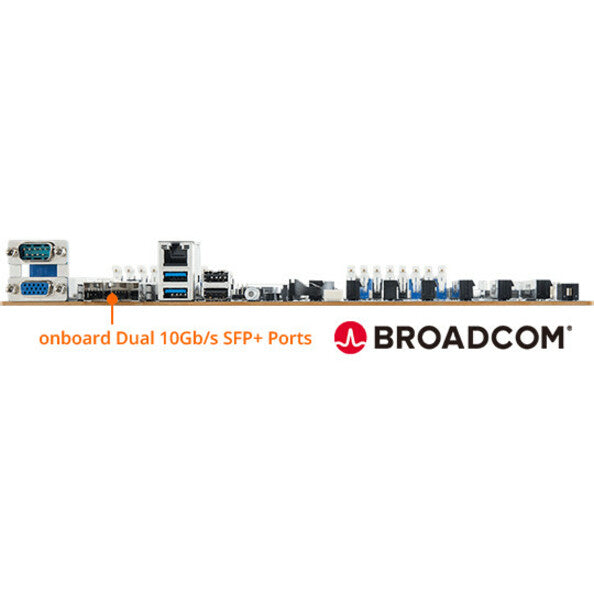

High-Speed Networking
GIGABYTE is the first vendor to offer 10Gb across dual ports on-board. This ensures that users can get the most out of their system and are well equipped for today's traffic demands. This boosts the server's network performance with full-line rate throughput and reduces CPU overhead, leaving the EPYC to focus on the real compute tasks.

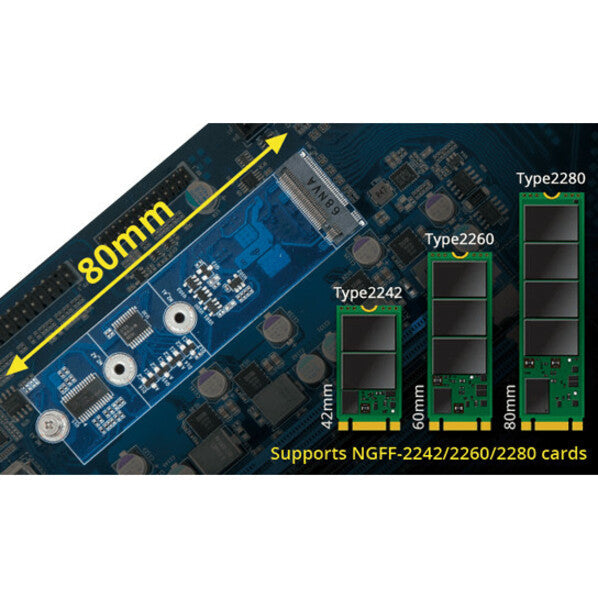

Dense, High Speed Storage SupportOnboard M.2
GIGABYTE's AMD EPYC 1S platforms are designed to support on-board 'M.2' storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.
Data Security
TPM 2.0 Module
GIGABYTE's EPYC™ platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

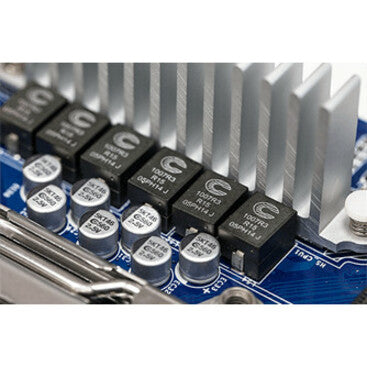

Carefully Selected Components
GIGABYTE's passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE's server motherboards are built with ultra long lasting components for the highest reliability attainable which allows us to offer some of the most durable servers in the industry.
- Compatible EPYC processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Support ASPEED AST2500 controller that assure high-level performance and interconnectivity of datacenter applications
- With 2 USB 3.0 port(s), transfer multiple or large files without any error
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX server motherboard
Product Type: Server Motherboard
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Gigabyte
Form Factor: Extended ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MZ31-AR0
Product Name: MZ31-AR0 (Rev. 1.0) Server Motherboard
Manufacturer Part Number: MZ31-AR0
Manufacturer Website Address: http://www.gigabyte.us
Limited Warranty: 3 Year
