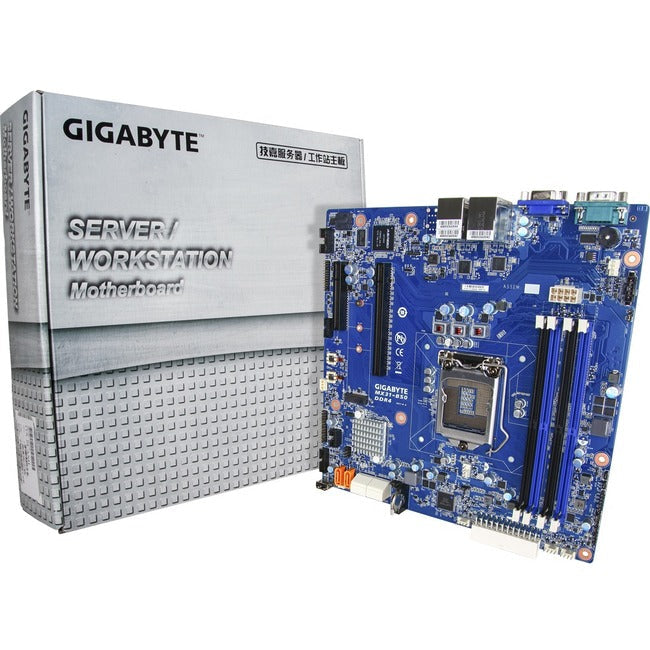

Gigabyte MX31-BS0 Server Motherboard - Intel C232 Chipset - Socket H4 LGA-1151 - Micro ATX
MX31-BS0 Server Motherboard Overview
Supports the Intel Xeon E3-1200 V5 Processors
Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.
Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.
- Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 10 RAID levels provide data reliability and fault tolerance
- Support ASPEED AST2400 controller that assure high-level performance and interconnectivity of datacenter applications
- With 2 USB 3.0 port(s), copying files quickly and establishing connections between audio and video devices is as seamless as it gets
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX server motherboard
Product Type: Server Motherboard
Environmentally Friendly: Yes
Brand Name: Gigabyte
Form Factor: Micro ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MX31-BS0
Product Name: MX31-BS0 (rev. 1.0) Server Motherboard
Manufacturer Part Number: MX31-BS0
Manufacturer Website Address: http://www.gigabyte.us
