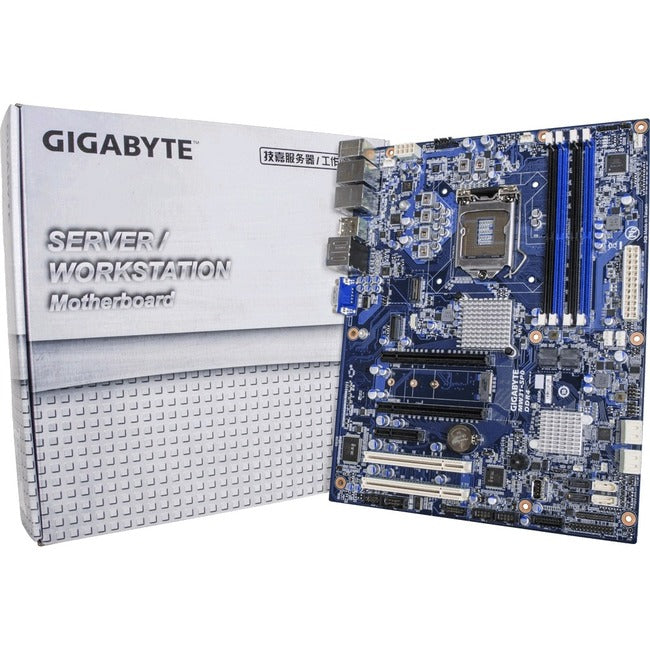

Gigabyte MW31-SP0 Server Motherboard - Intel C236 Chipset - Socket H4 LGA-1151 - ATX
MW31-SP0 Workstation Motherboard Overview
2-Way Graphics Supported
For applications requiring heavy computing acceleration, the MW31-SP0 can receive up to 2 computing cards (Intel Xeon Phi, NVIDIA Tesla, AMD FirePro) or 2 GPU cards working together via the NVIDIA SLI and AMD CrossFire technologies. The MW31-SP0 is an ideal product to build a fully optimized dual GPU professional workstation for applications such as:
- 3D modeling, rendering, animation, and other graphics heavy applications.
- Audio & video production & post-production.
- Small scale scientific analysis and simulations.
Dedicated Expansion Card Slot This motherboard uses a mezzanine card slot with 4 PCI-Express lanes with custom mounting socket to receive one of our proprietary expansion cards (see bottom of page). Positioned right between the CPU socket and its rear I/O, it can add additional ports and controllers to the board's configuration and fit into a larger range of user scenarios
Supports the Intel Xeon E3-1200 V5 Processors
Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.
Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- With 4 USB 3.0 port(s), copying files quickly and establishing connections between audio and video devices is as seamless as it gets
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Type: Server Motherboard
Brand Name: Gigabyte
Form Factor: ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MW31-SP0
Product Name: MW31-SP0 (rev. 1.0) Server Motherboard
Manufacturer Part Number: MW31-SP0
Manufacturer Website Address: http://www.gigabyte.us
