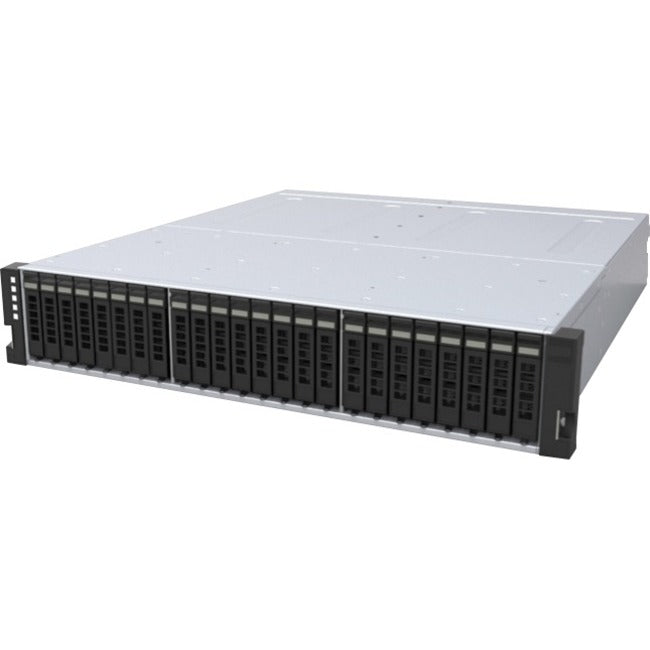

HGST 2U24-1034 Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable
The 2U24 Flash Storage Platform is a key element of next generation Software-Defined Storage (SDS) systems. It offers performance advantages as well as flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.
Flash Performance
Depending on the type of SSDs and the number of drives installed, the 2U24 Platform can be configured to deliver the performance you need.
Designed for Enterprise and the Cloud
The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and Cloud service providers. With performance of up to 4.7M IOPS, 23 GB/s and less than 1ms latency, the Platform is the ideal solution for accelerating enterprise workloads such as Database, Virtualization and Scale-Out configurations. The flash platform delivers up to 184TB storage capacity, can be connected to up to six hosts via the 12Gb/s SAS3 interface, and offers enterprise-specific features including:
- Enterprise-class High Availability: hot swappable SSDs, IO Modules, and PSUs
- Fully upgradeable: upgradeable firmware enables drive technology and capacity updates without impacting applications
- All-flash platform with up to 24 Ultrastar® 2.5" SAS SSD modules or 24 CloudSpeed™ Gen II SATA SSD modules
- Available SSD capacities: 7.68TB, 3.84TB, 1.92TB, and 960GB
- Start with as little as 12 SSDs, upgrade one additional module at a time
- Up to 4.7M IOPS, 23 GB/s; <1ms latency
- Up to six 12Gb/s SAS3 connections to host
- 2 rack units
- Easy maintenance: SSD modules are front accessible and hot swappable
- 5-year limited warranty
Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Cooling Fan: Yes
Rack Height: 2U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Model: 2U24-1034
Product Name: 2U24 Flash Storage Platform
Manufacturer Part Number: 1ES1073
Manufacturer Website Address: http://www.wdc.com
Limited Warranty: 5 Year
Weight (Approximate): 52.25 lb
