Description

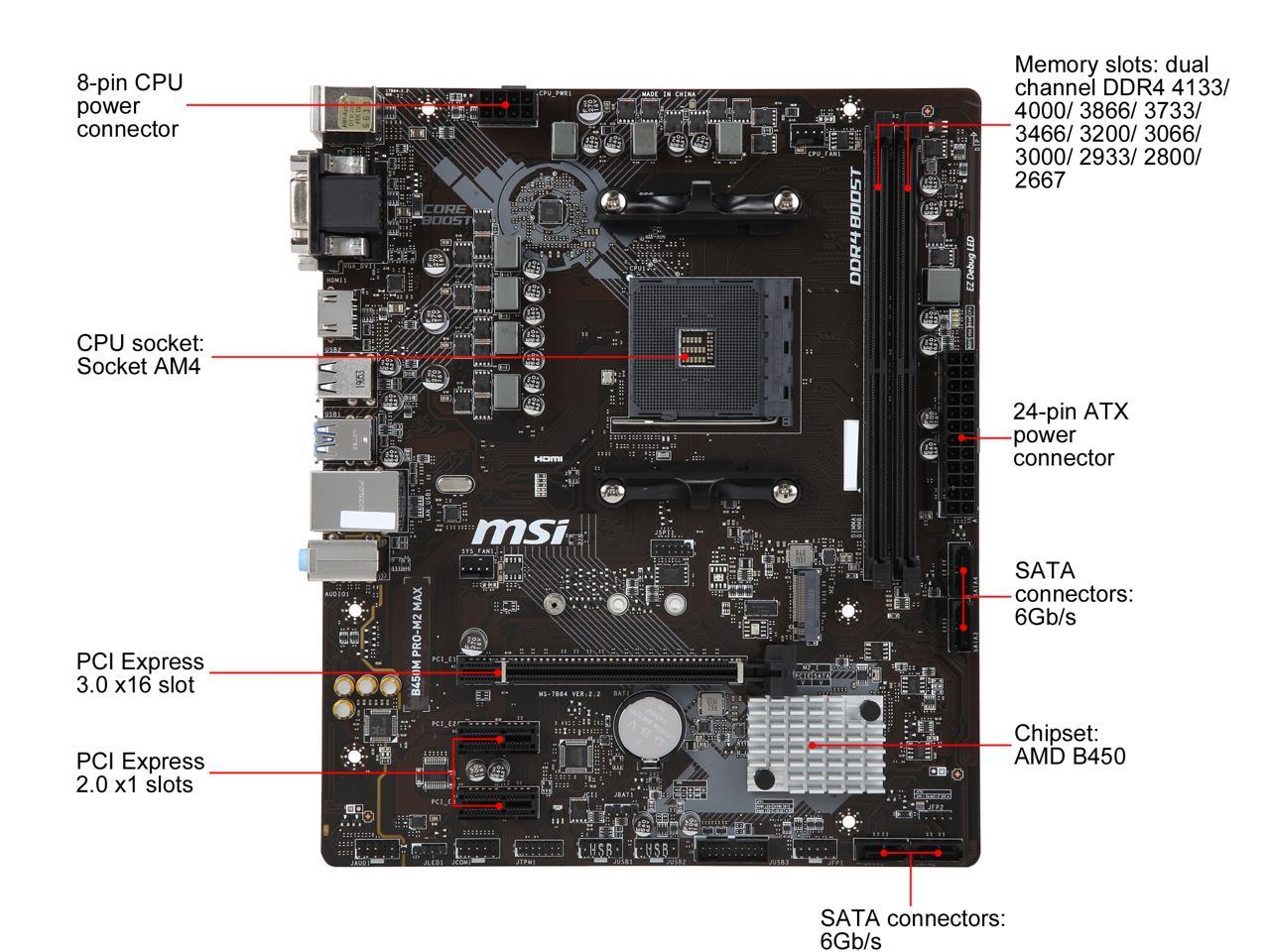

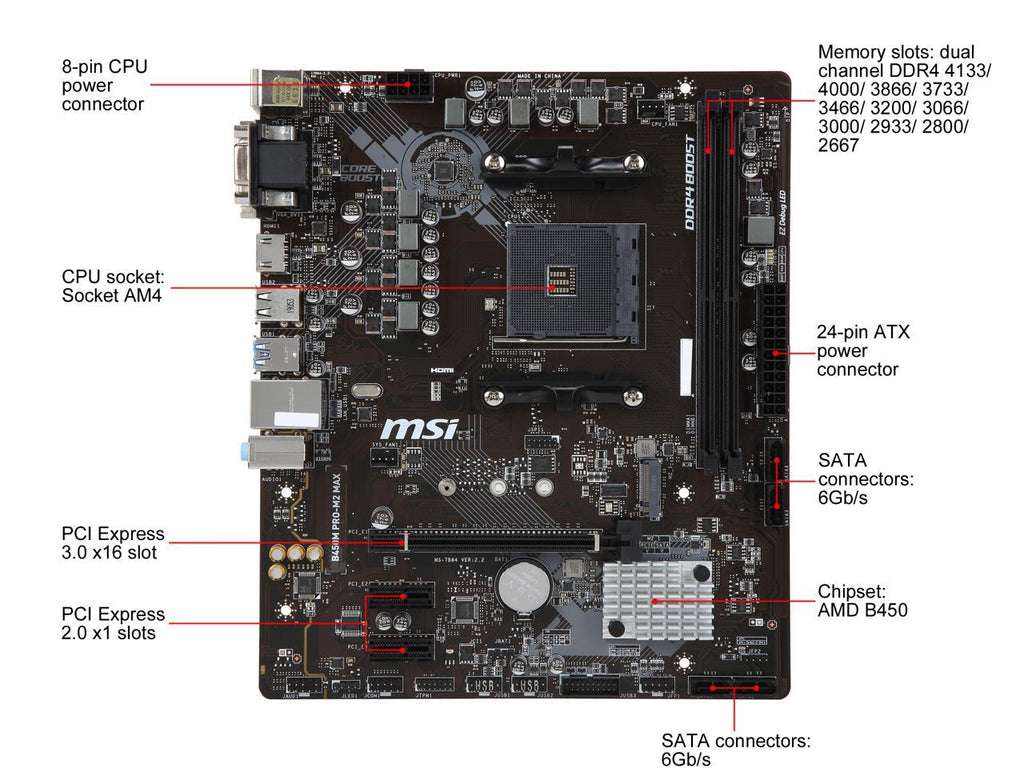

- AMD B450
- Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
- For AMD Ryzen Gen3 (R5/R7/R9)
- - Supports DDR4 4133/ 4000/ 3866/ 3733/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC mode
- For AMD Other CPU
- - Supports DDR4 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC mode
- Supports DDR4 2667/ 2400/ 2133/ 1866 MHz by JEDEC

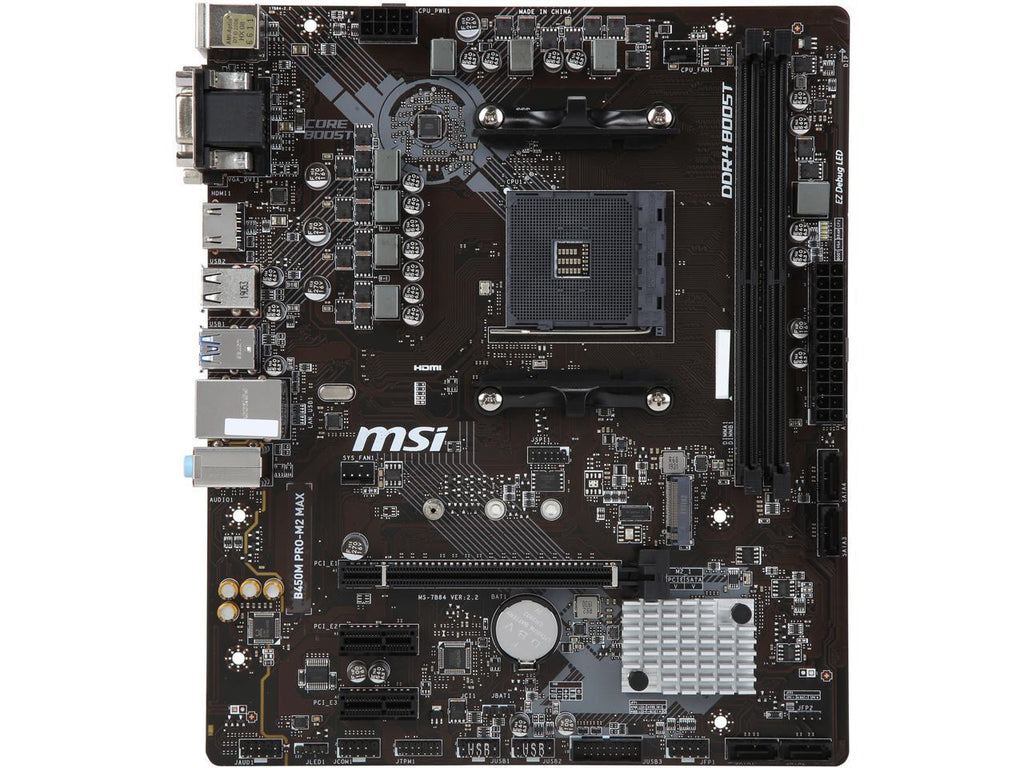

B450M PRO-M2 MAX
BUSINESS CLASS

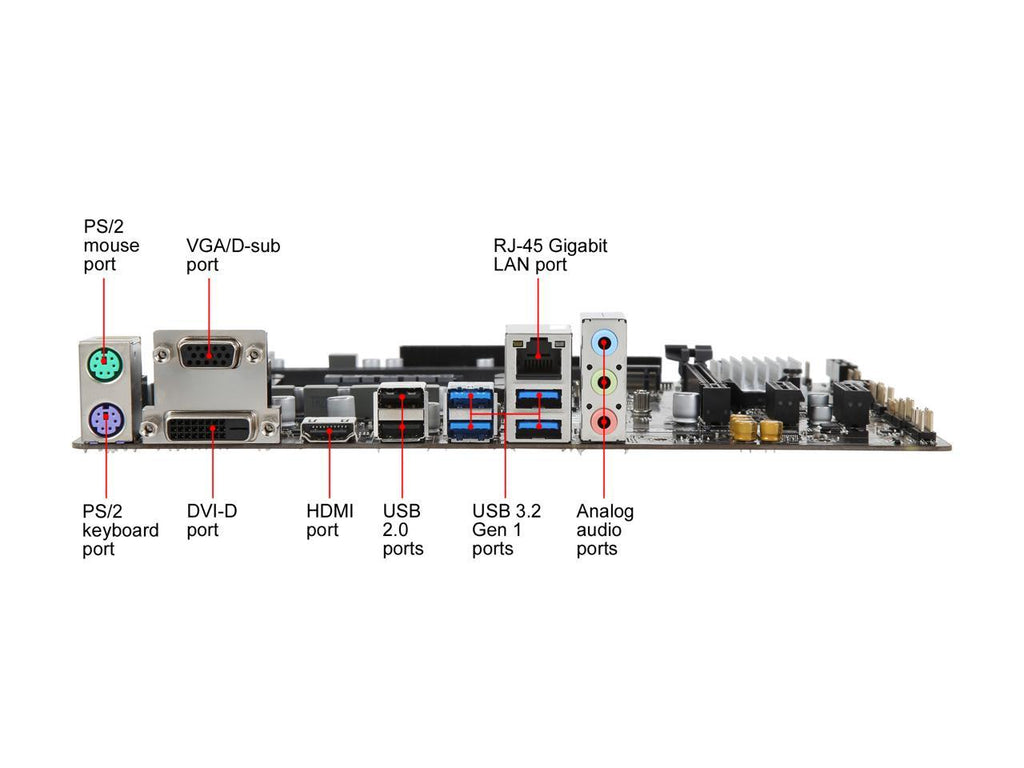

- 1 Keyboard & Mouse
- 2 DVI-D & VGA
- 3 HDMI
- 4 USB 2.0 Ports
- 5 USB 3.2 Gen1 Ports
- 6 USB 3.2 Gen1 & LAN Port
- 7 HD Audio Connectors
|
Display Interface
|
||||||
|
-
8DDR4 Boost
Optimized traces and isolated memory circuitry -
9Turbo M.2
NVMe support, delivering speeds up to 32Gb/s using PCI-Express Gen3 x4 -
10PCI-E Steel Slot
Reinforced against bending -
11Heavy-Plated Heat Sinks
Designed for maximum cooling -
12Audio Boost
Reward your ears with studio-grade sound quality
ENHANCED BIOS COMPATIBILITY & CROSS-GEN RYZEN SUPPORT
MAX motherboards have been upgraded to support multiple Ryzen processor generations including Ryzen 3000 series processors. Get more with Click BIOS 5, designed with an easy-to-use layout and advanced system-tuning capabilities.
EXTREME STORAGE PERFORMANCE: TURBO M.2
Enjoy a blazing-fast system boot up and insanely quick loading of applications and data. Delivering speeds up to 32Gb/s per device using Gen3 x4.
CORE BOOST
Core Boost is the latest advancement of MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimized circuit design results in a highly efficient power system capable of precise current output to the CPU.UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.
BEST COMPATIBILITY
Get more out of high-performance RAM with DDR4 Boost. The memory circuit design has been optimized for short and fast transmission on a reserved section of the motherboard fully isolated from any other circuit.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL SLOTS
MSI PCI Express Steel Slots are secured to the motherboard with extra solder points and reinforced to support the weight of heavy graphics cards.
AMPLIFY YOUR GAME WITH AUDIO BOOST
Like a dedicated sound card, Audio Boost offers a HD audio processor, dedicated amplifier and high-quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | B450M PRO-M2 MAX |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Series | PRO |
| Product Model | B450M PRO-M2 MAX |
| Product Name | B450M PRO-M2 MAX Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142189689 |
| Chipset Manufacturer | AMD |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |

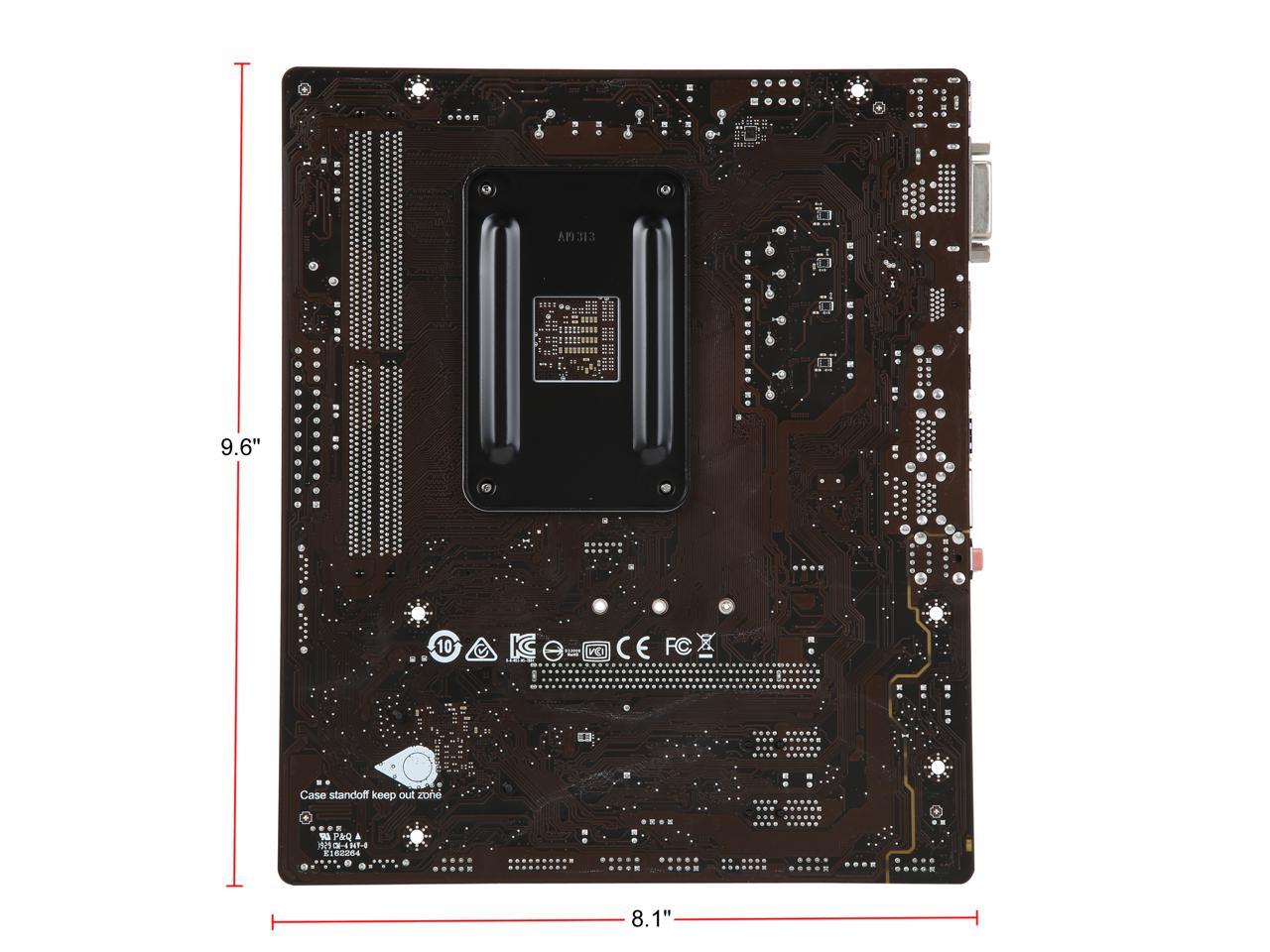

| Width | 9.6" |
|---|---|
| Depth | 8.1" |
