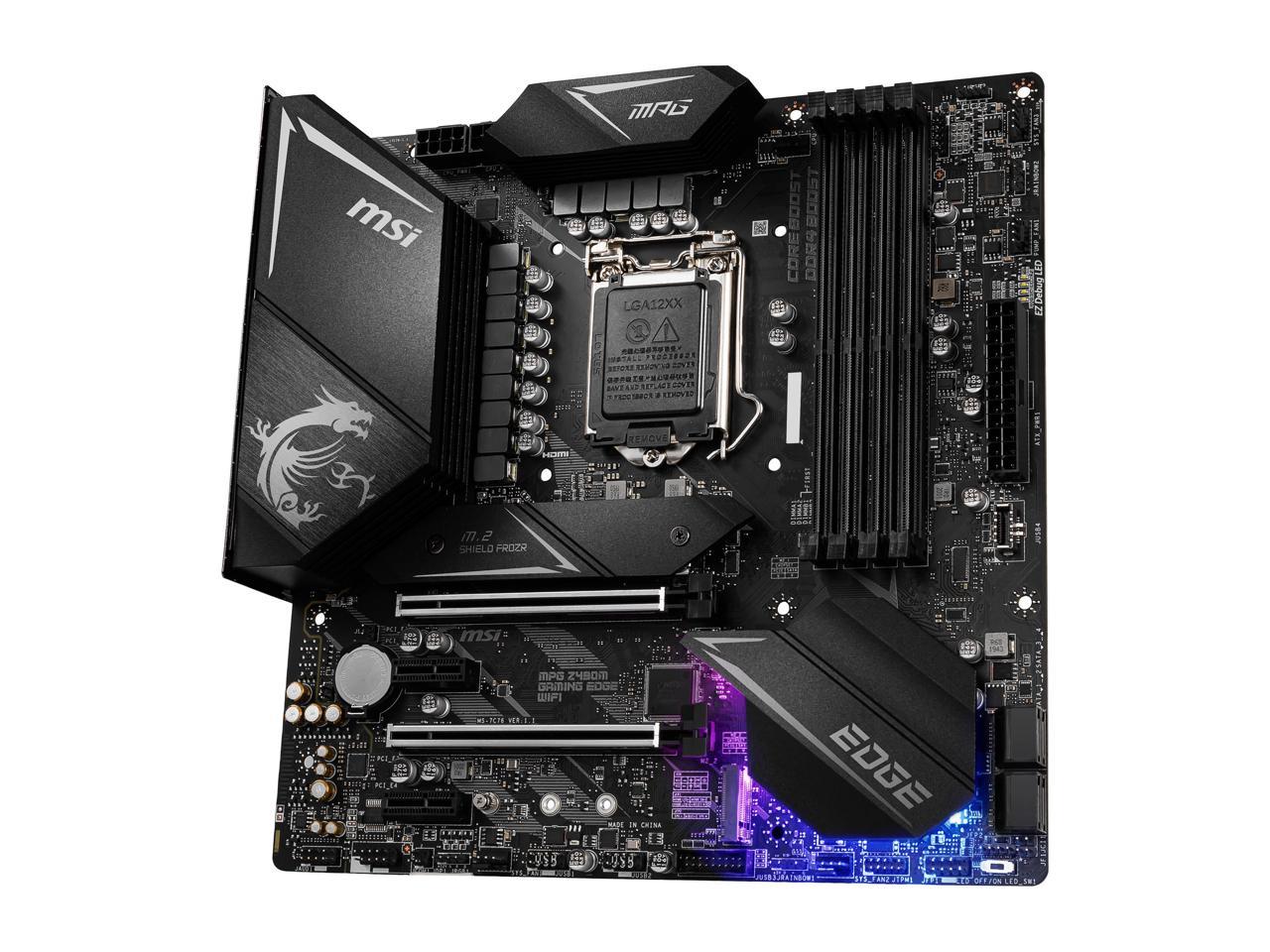

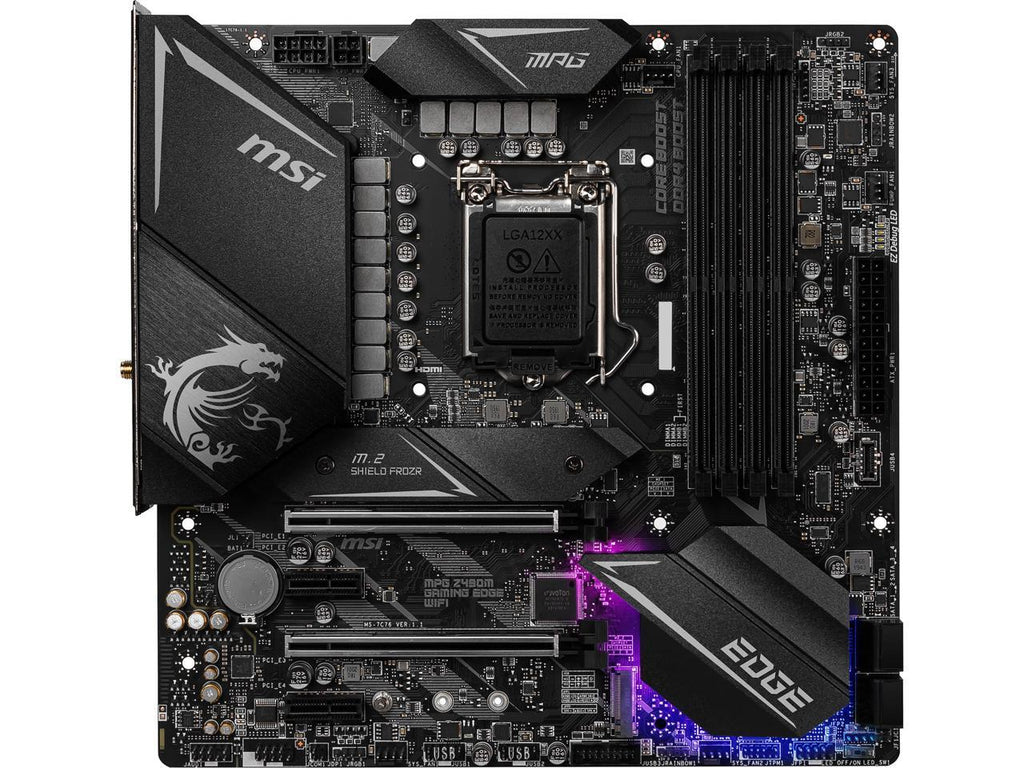

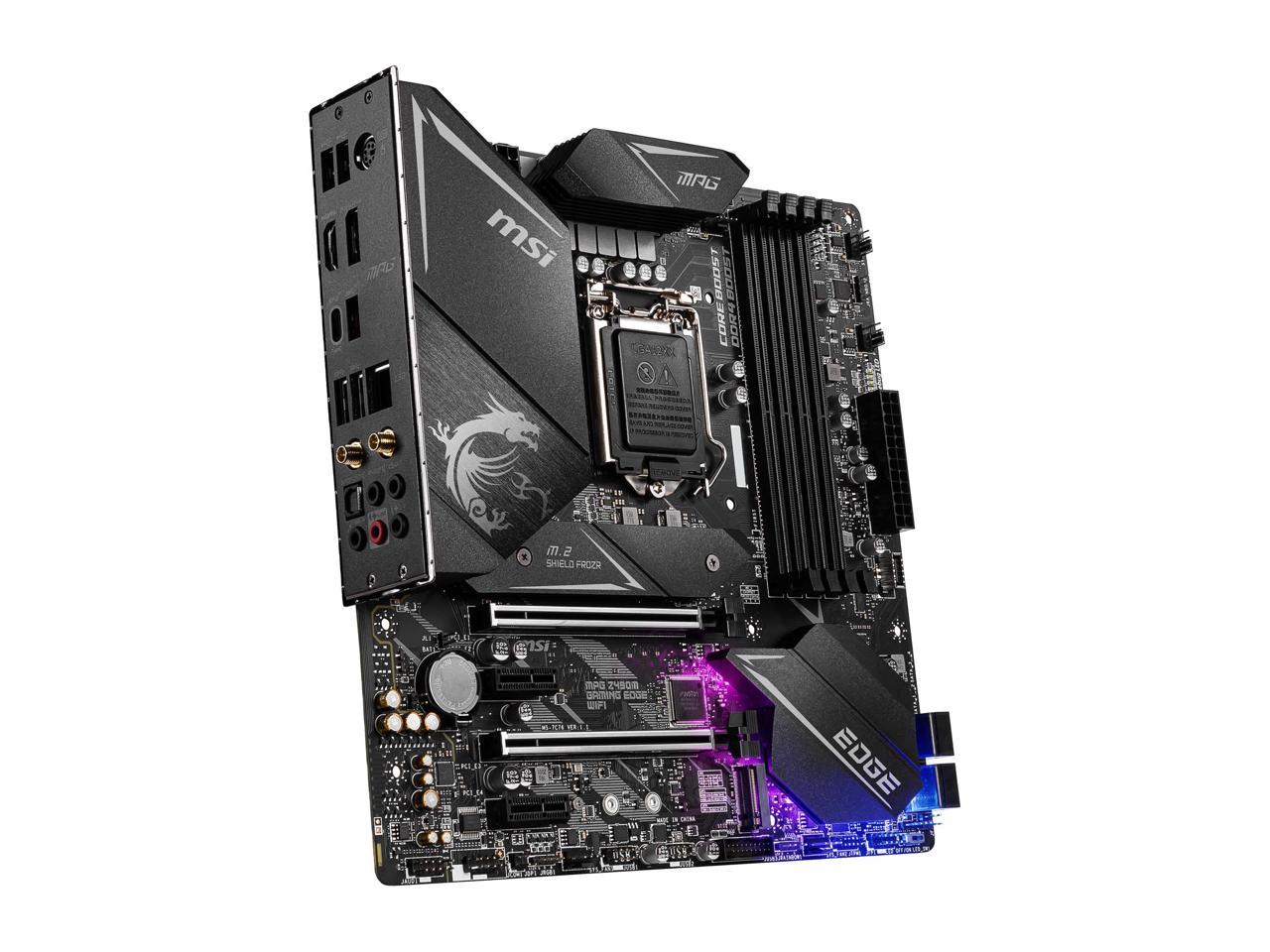

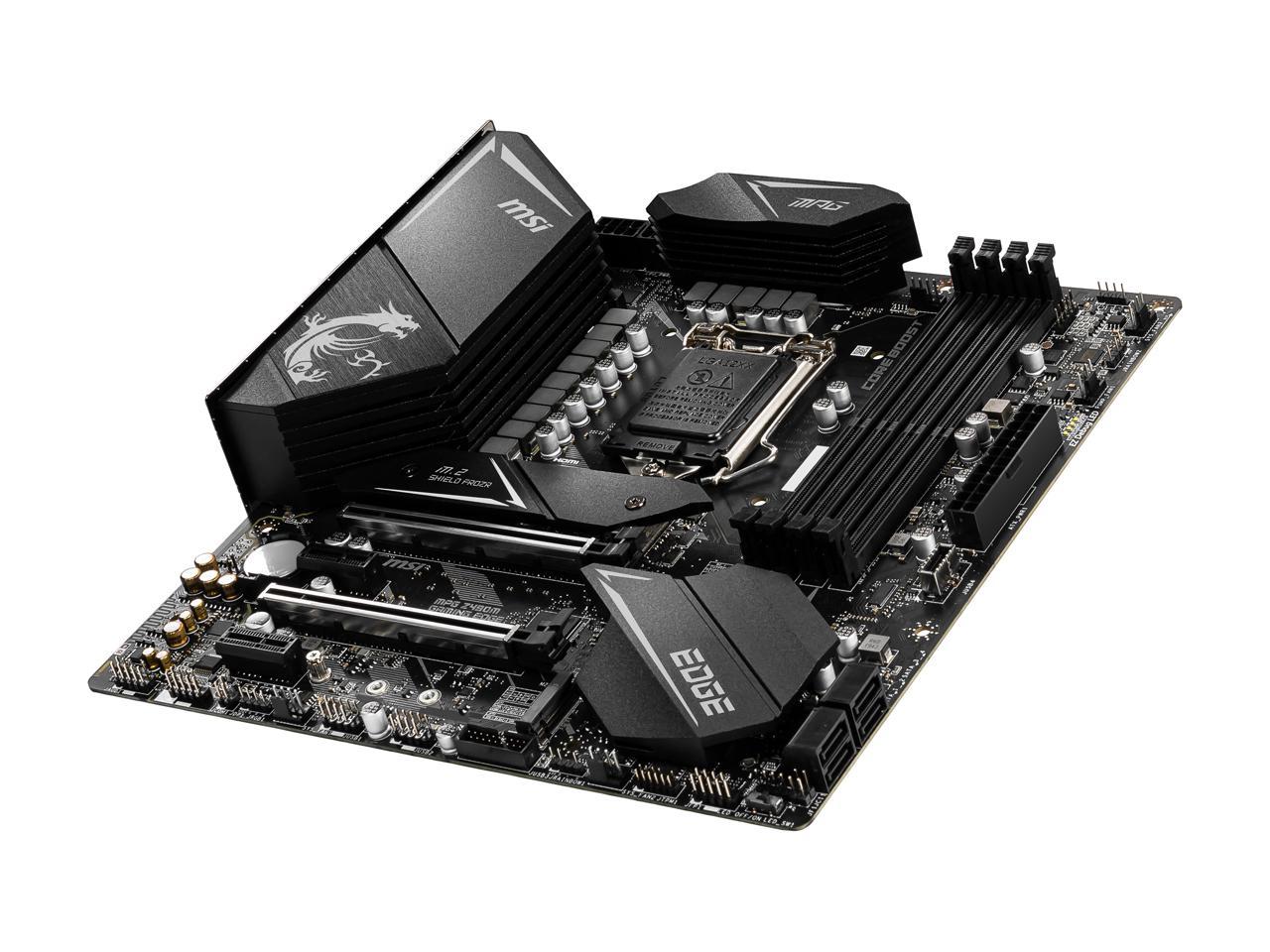

Name: Msi Mpg Z490M Gaming Edge Wifi Lga 1200 Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard
Brand: MSI
SKU: Z490M GAMING EDGE WI
Price: 583.00 CAD
Availability: InStock

Msi Mpg Z490M Gaming Edge Wifi Lga 1200 Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Intel Z490
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Supports 1R 2933/ 2666/ 2133 MHz
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz

**Model**
Brand	MSI
Model	MPG Z490M GAMING EDGE WIFI

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket 1 2 1. Please go to intel.com for compatibility information. 2. Onboard graphics output are disabled when using the F SKU processors.

**Chipsets**
Chipset	Intel Z490

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz Maximum shared memory is 1GB

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Supports 1R 2933/ 2666/ 2133 MHz* 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz * Please refer www.msi.com for more information on compatible memory
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	2 x PCIe 3.0 x16 slots, support x16/ x0 or x8/ x8 mode
PCI Express x1	2 x PCIe 3.0 x1 slots

**Storage Devices**
SATA 6Gb/s	4 x SATA 6Gb/s ports 1 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2	2 x M.2 slots (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1 slot supports 2242/2260/2280/22110 storage devices1 M2_2 slot supports 2242/2260/2280 storage devices 1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Intel Optane Ready	Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-Channel High Definition Audio Supports S/PDIF output

**Onboard LAN**
LAN Chipset	Realtek RTL8125B
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1, FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
Bluetooth	Yes

**Rear Panel Ports**

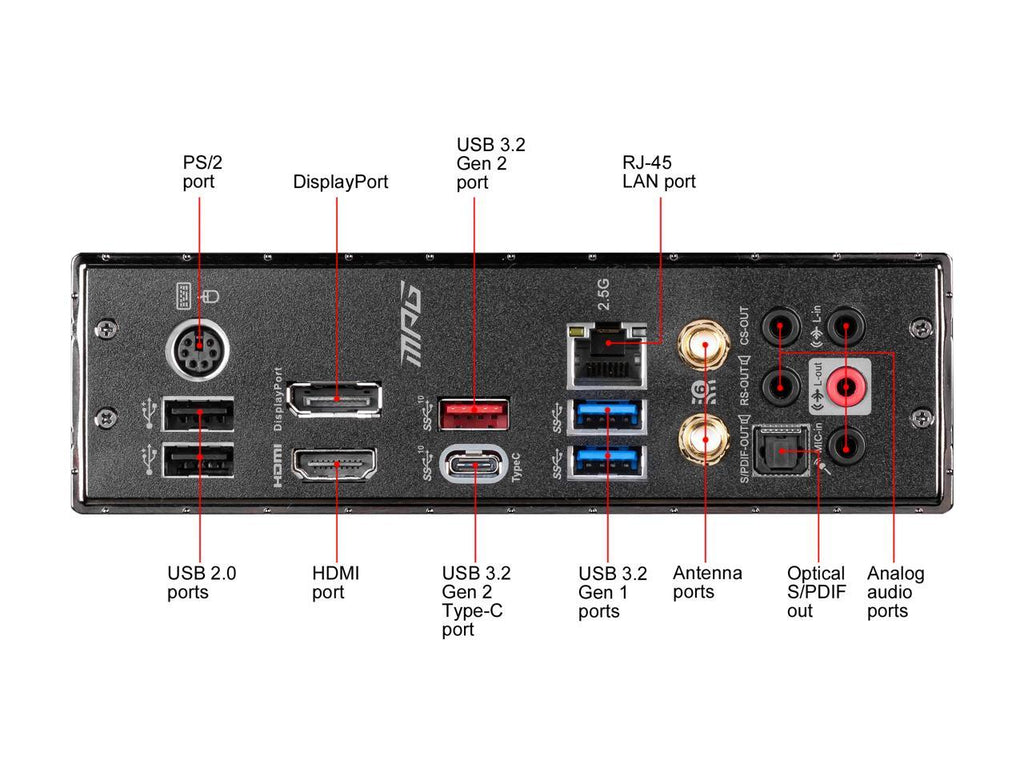

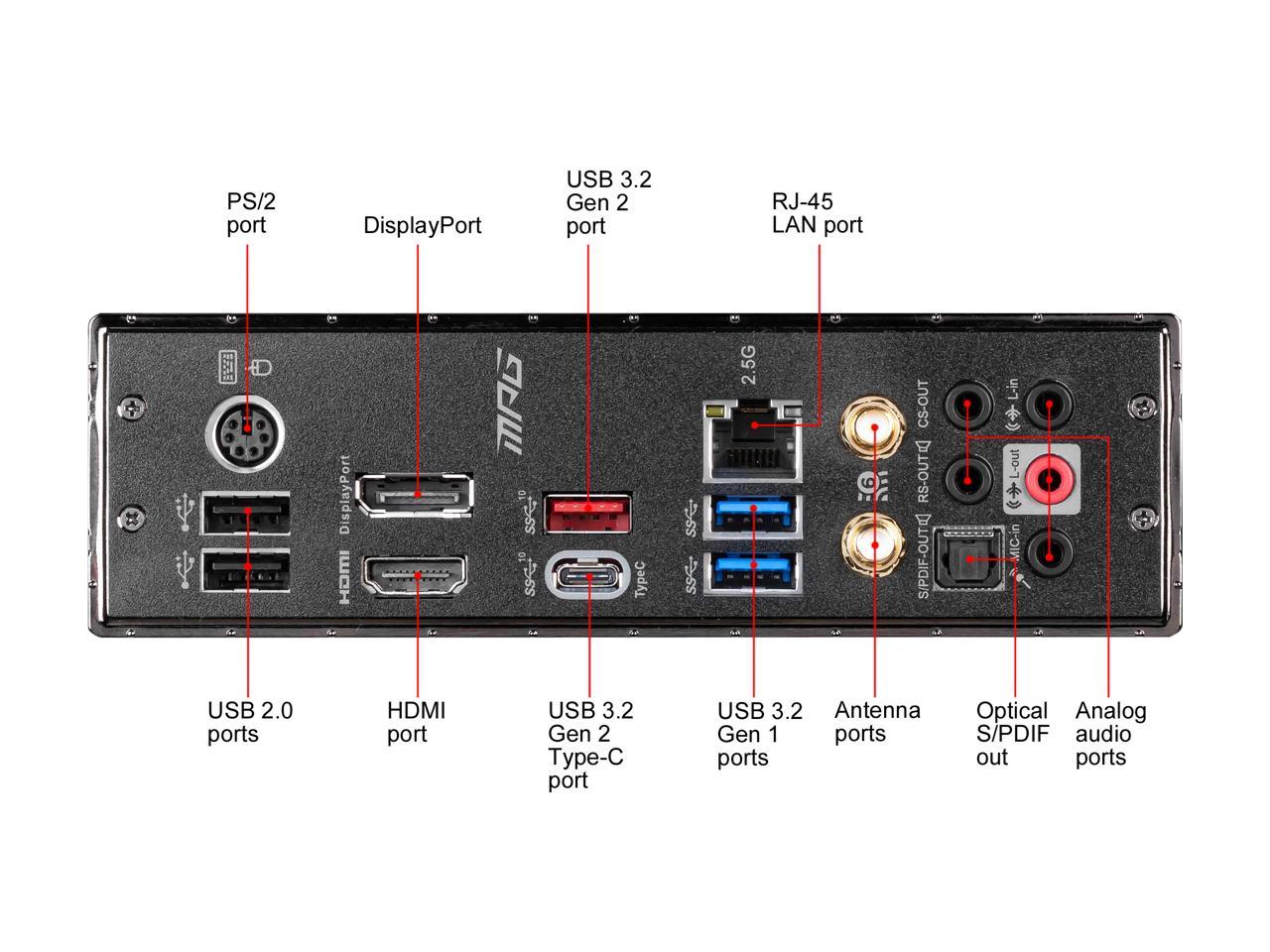

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x Serial port connector 1 x TPM module connector 1 x Clear CMOS jumper

**Physical Spec**
Form Factor	Micro ATX
LED Lighting	RGB

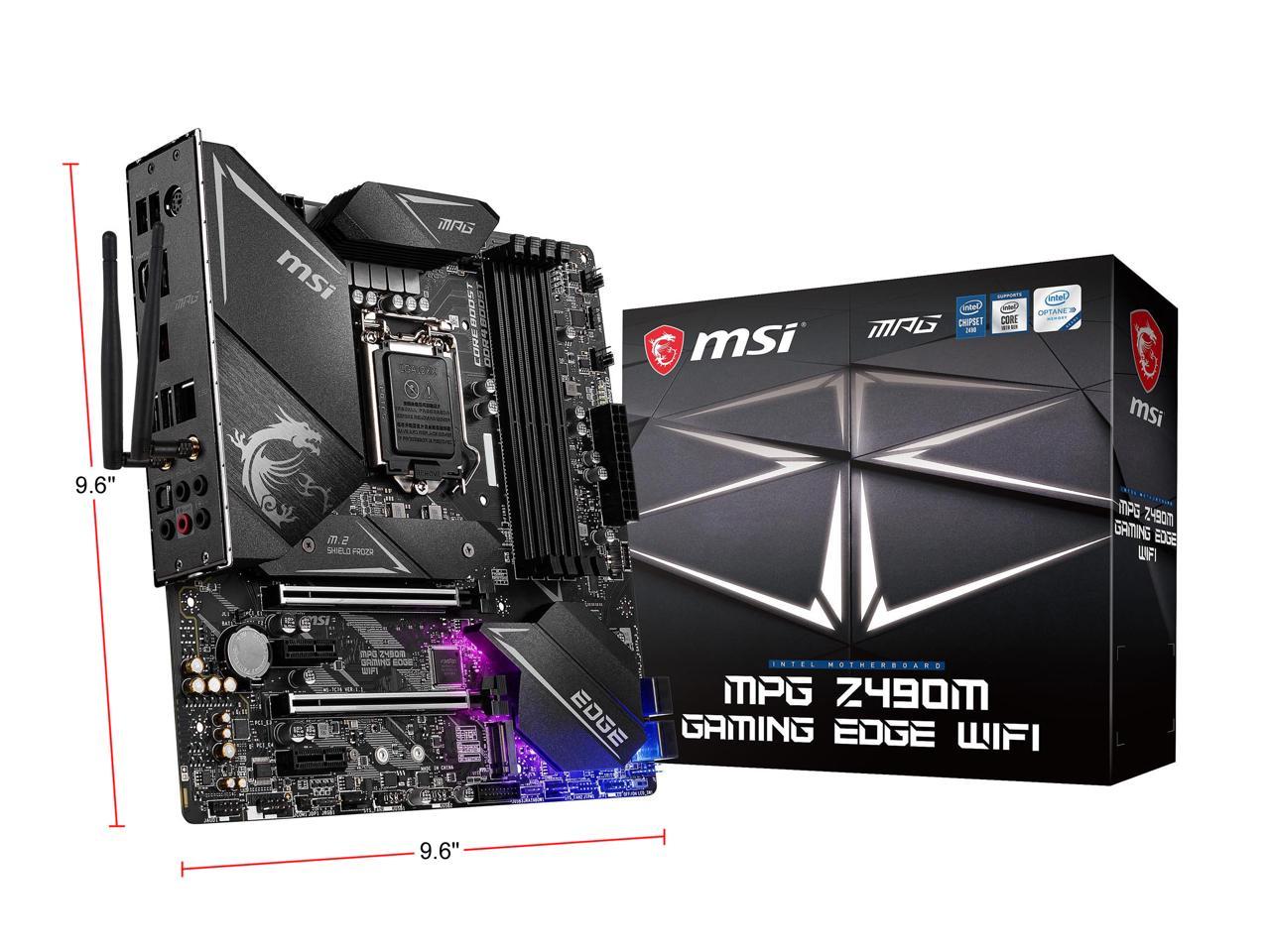

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

**Features**
Features	Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 4800(OC) MHz Ready 4 the Future: Support Lightning Gen 4 Solution for the future Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4-pin CPU power connectors, Core Boost, DDR4 Boost Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Audio Boost: Reward your ears with studio grade sound quality

General Information

UPC	824142213650

Msi Mpg Z490M Gaming Edge Wifi Lga 1200 Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard

Description

Msi Mpg Z490M Gaming Edge Wifi Lga 1200 Intel Z490 Sata 6Gb/S Micro Atx Intel Motherboard
