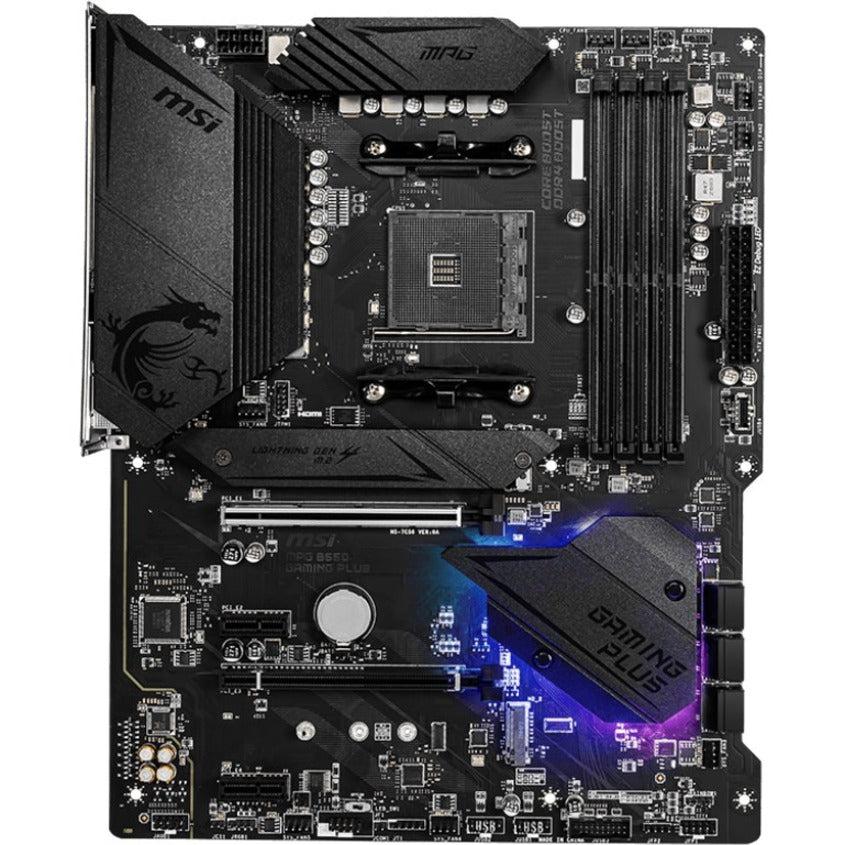

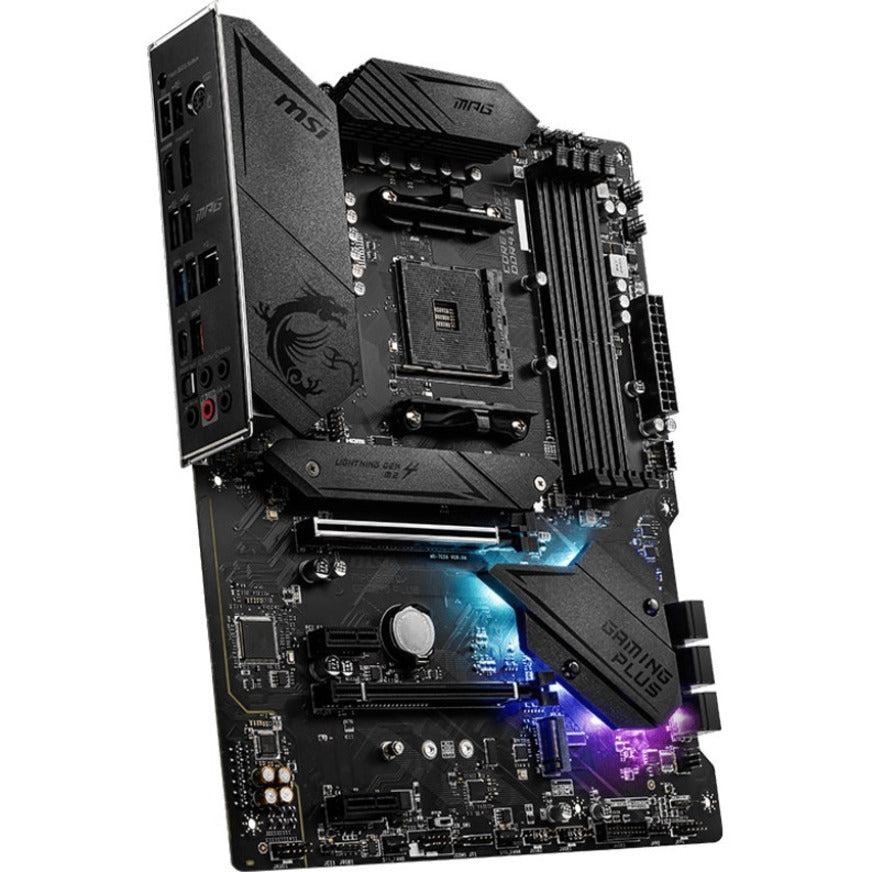

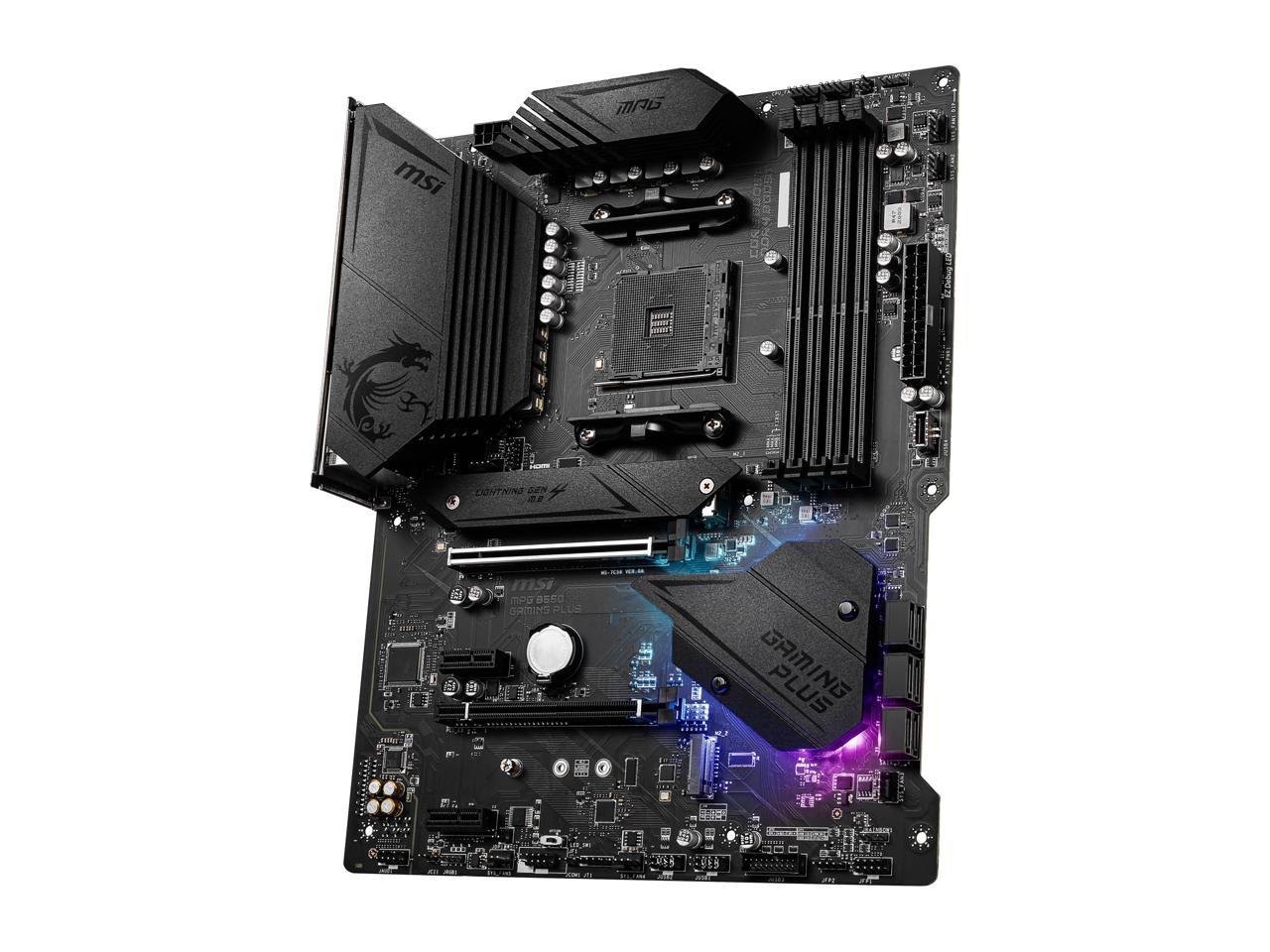

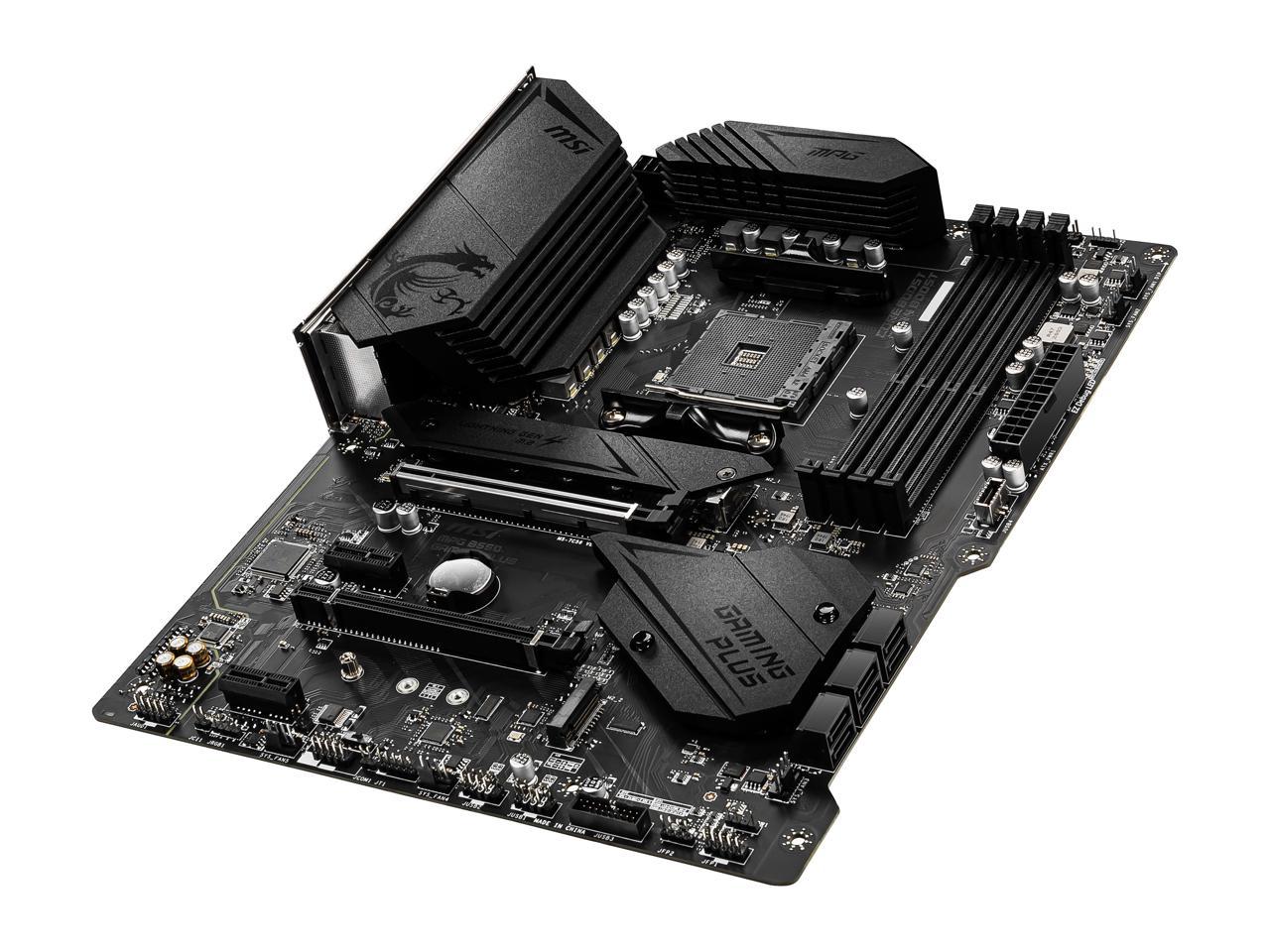

Name: Msi Mpg B550 Gaming Plus Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard
Brand: MSI
SKU: MPG B550 GAMING PLUS
Price: 302.00 CAD
Availability: InStock

Msi Mpg B550 Gaming Plus Am4 Amd B550 Sata 6Gb/S Atx Amd Motherboard

Roll over image to zoom in Click on image to zoom

AMD B550

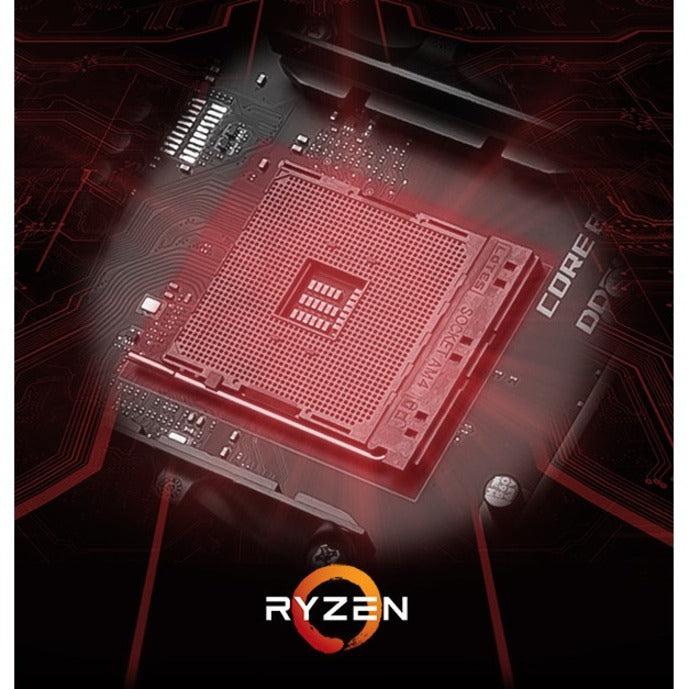

Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3866 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz

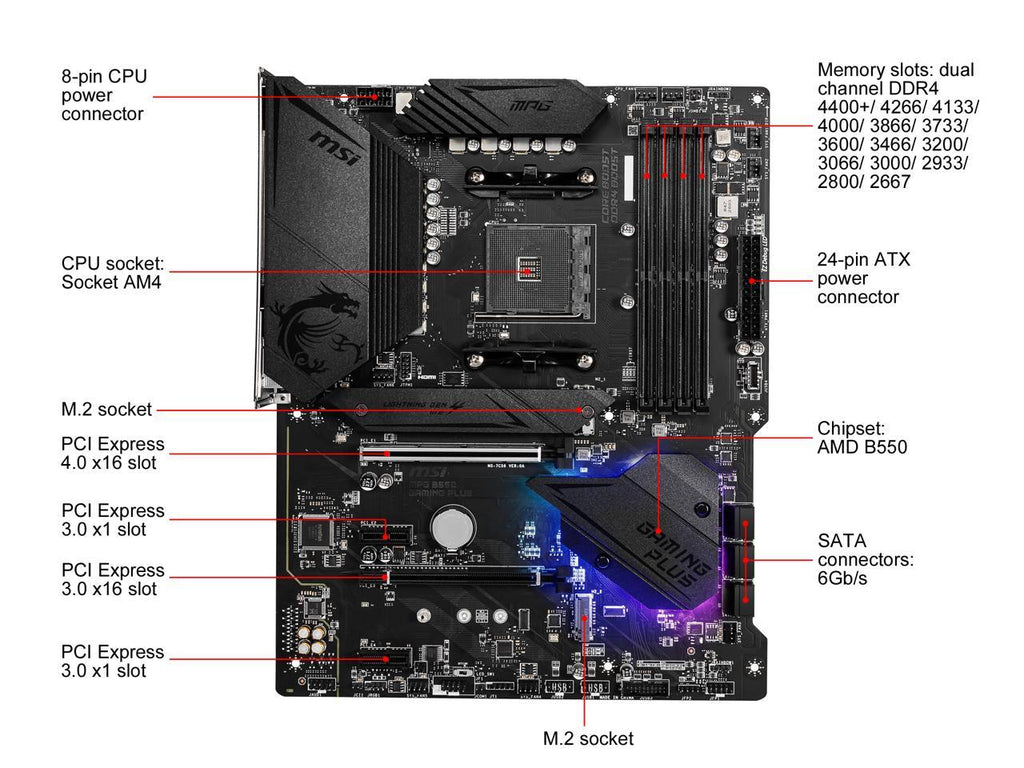

**Model**
Brand	MSI
Model	MPG B550 GAMING PLUS

**Supported CPU**

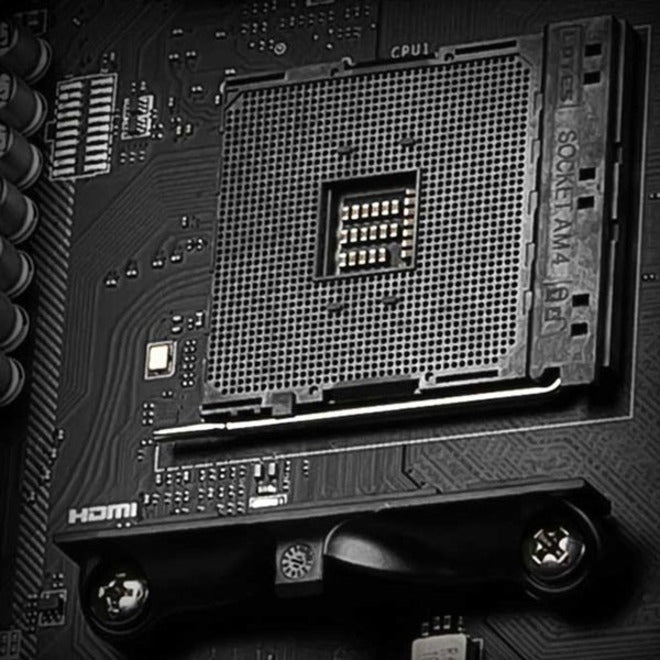

CPU Socket Type	AM4
CPU Type	Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update

**Chipsets**
Chipset	AMD B550

**Memory**
Number of Memory Slots	4×288pin
Memory Standard	Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot (PCI_E1) * * The supported specification depends on installed processor.
PCI Express 3.0 x16	1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
PCI Express x1	2 x PCIe 3.0 x1 slots

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/3.0 x4 * Supports SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0 x4 Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor.
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16GB * Available for the processor with integrated graphics.

**Onboard Audio**
Audio Chipset	Realtek ALC892
Audio Channels	7.1-Channel High Definition Audio Supports S/PDIF output

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

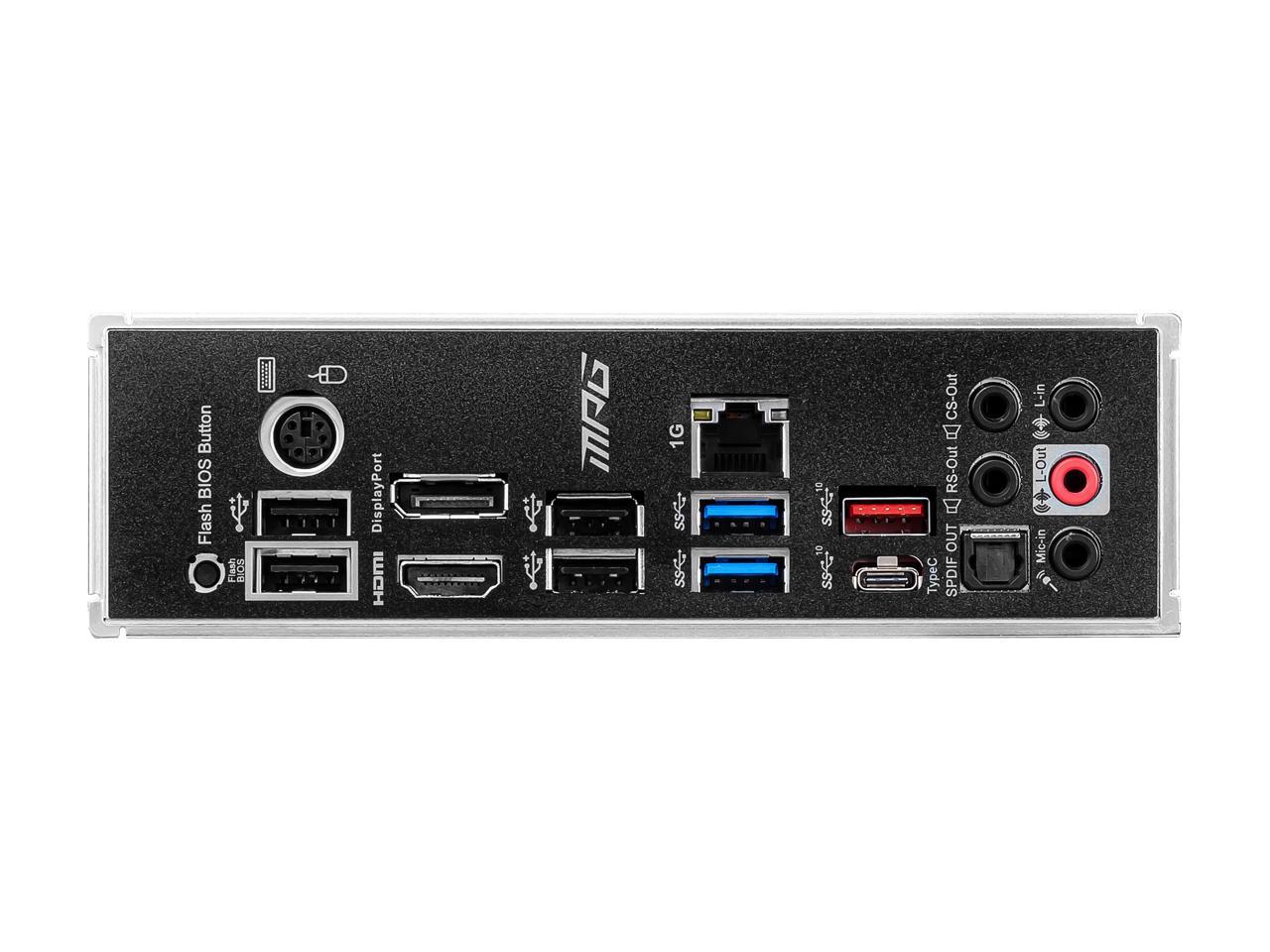

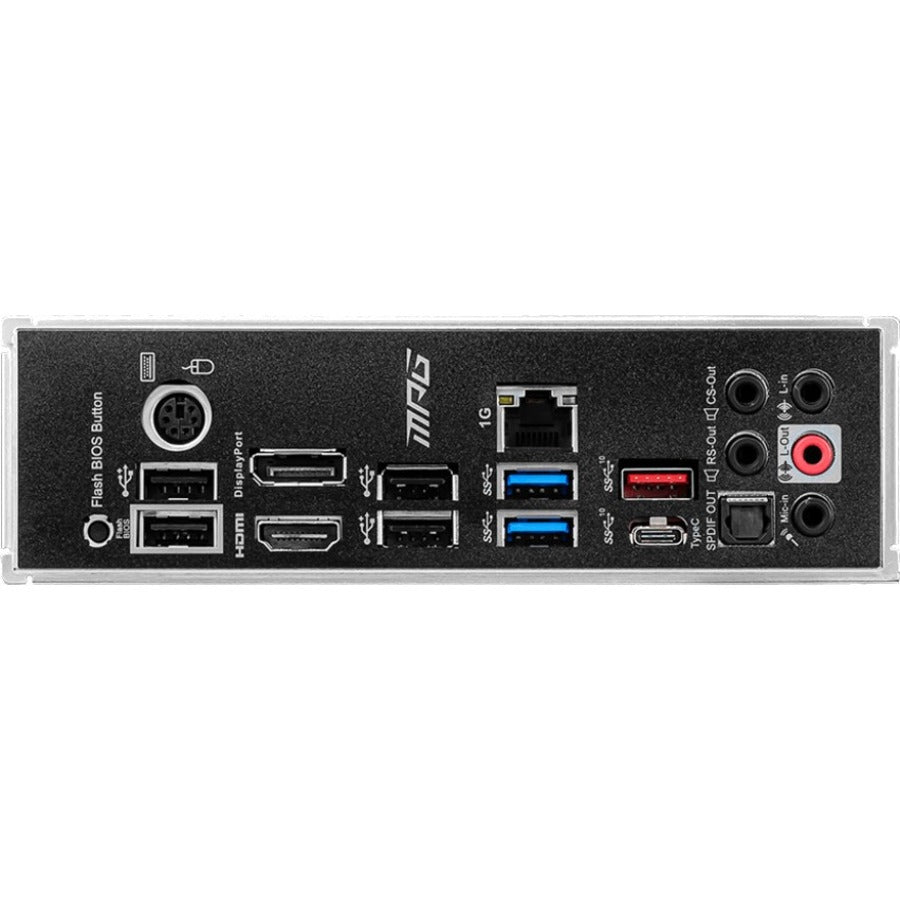

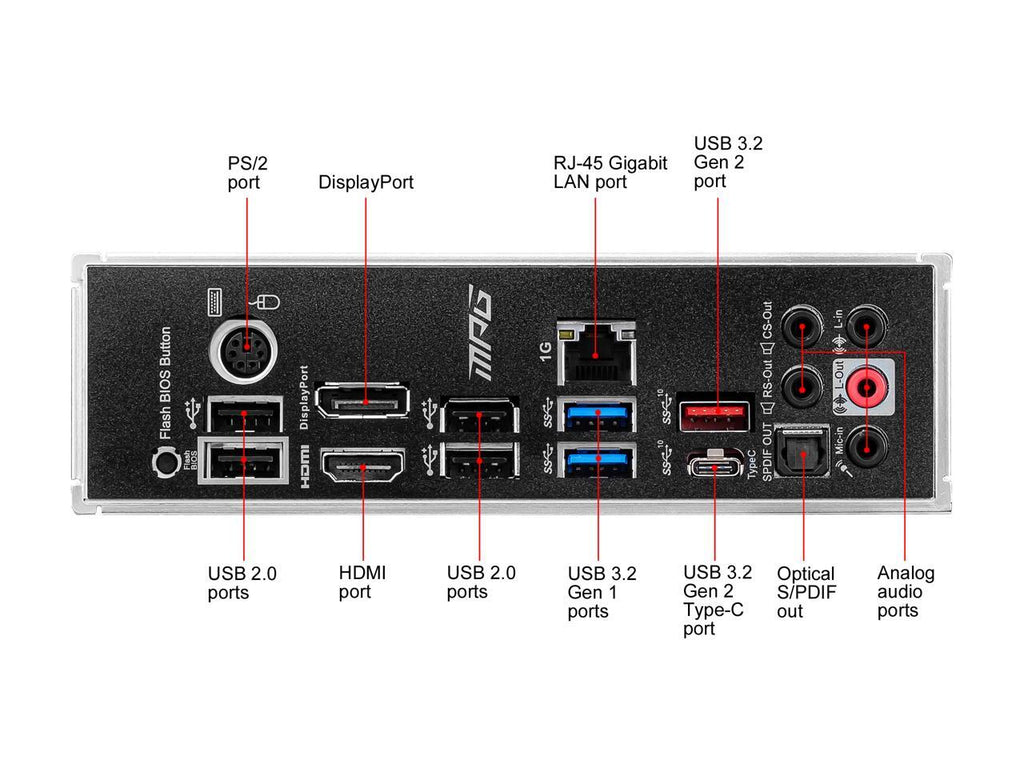

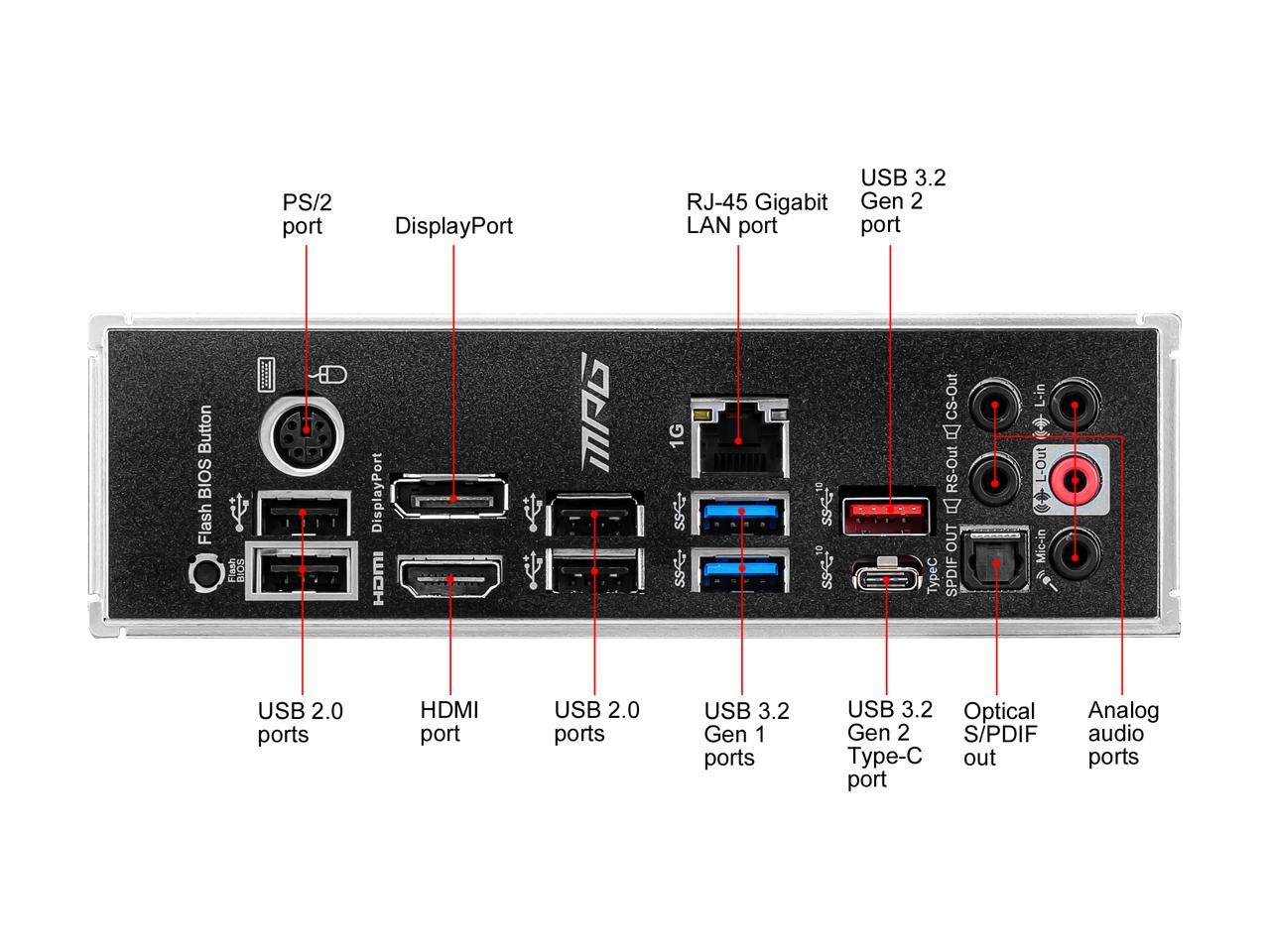

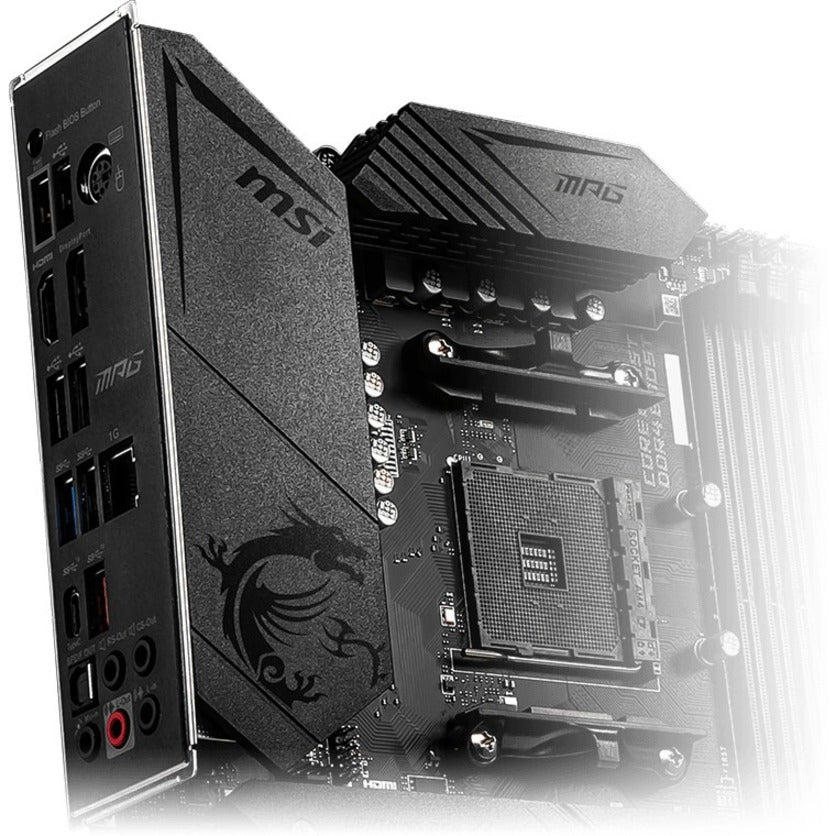

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 3.2 Gen 1 / 4 x USB 2.0/1.1 / 5 x Audio Jacks

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB

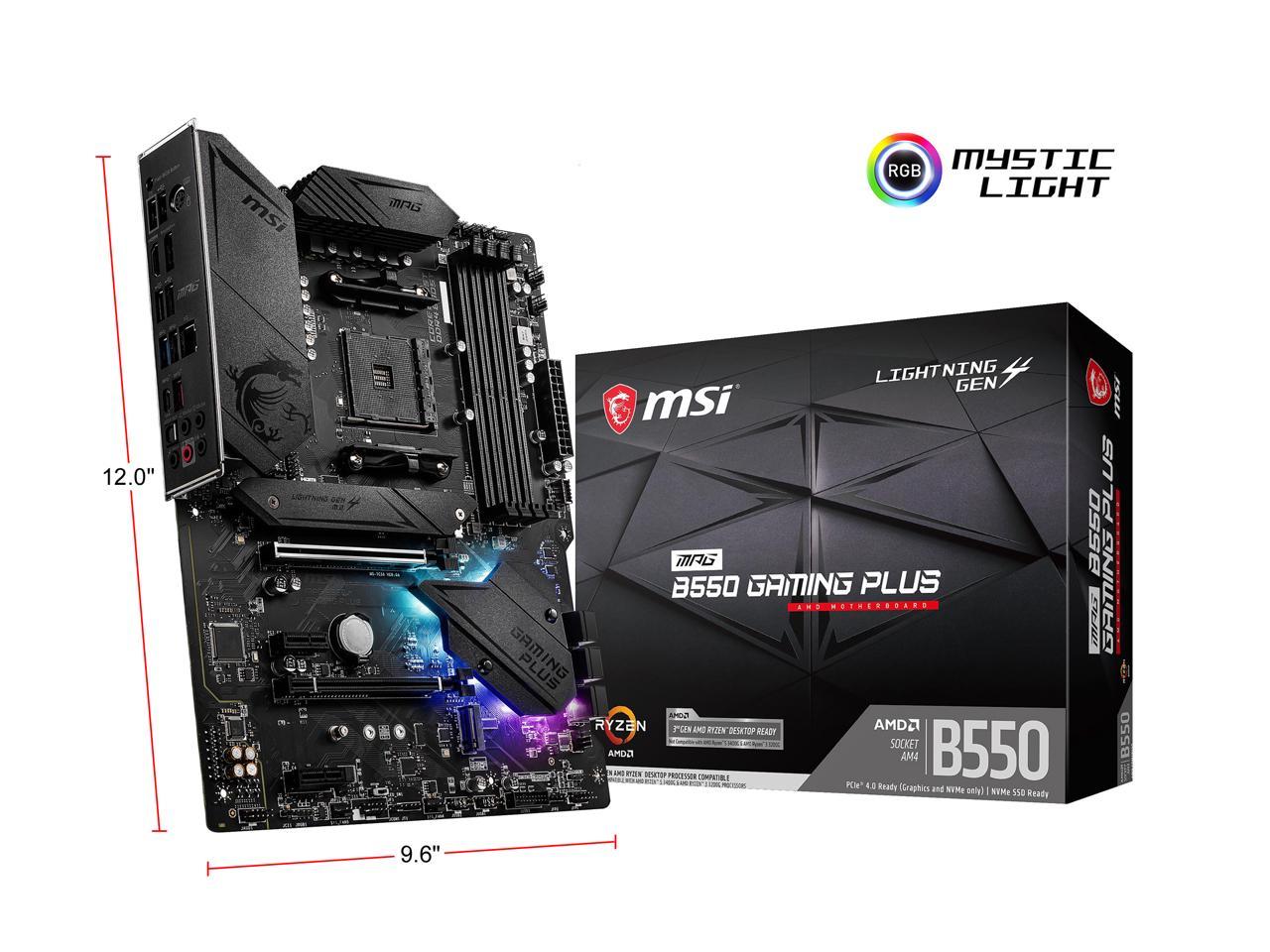

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

**Windows 11 Compatibility**
Windows 11	Supported

**Features**

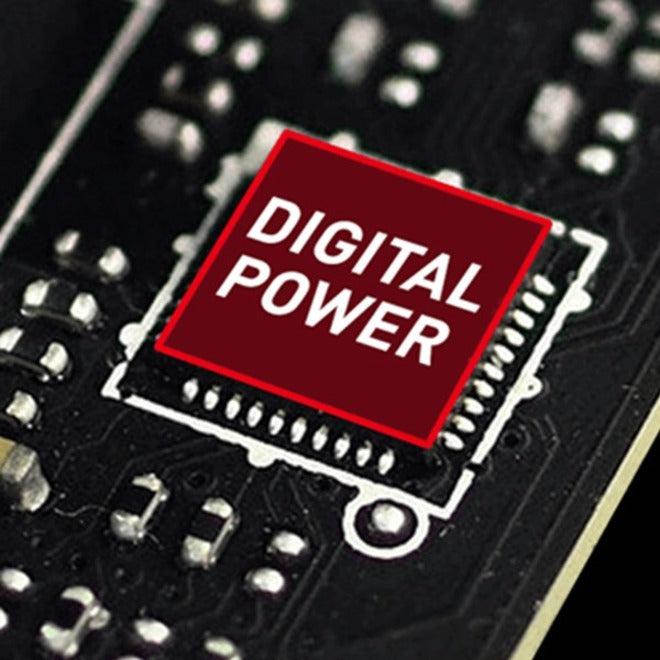

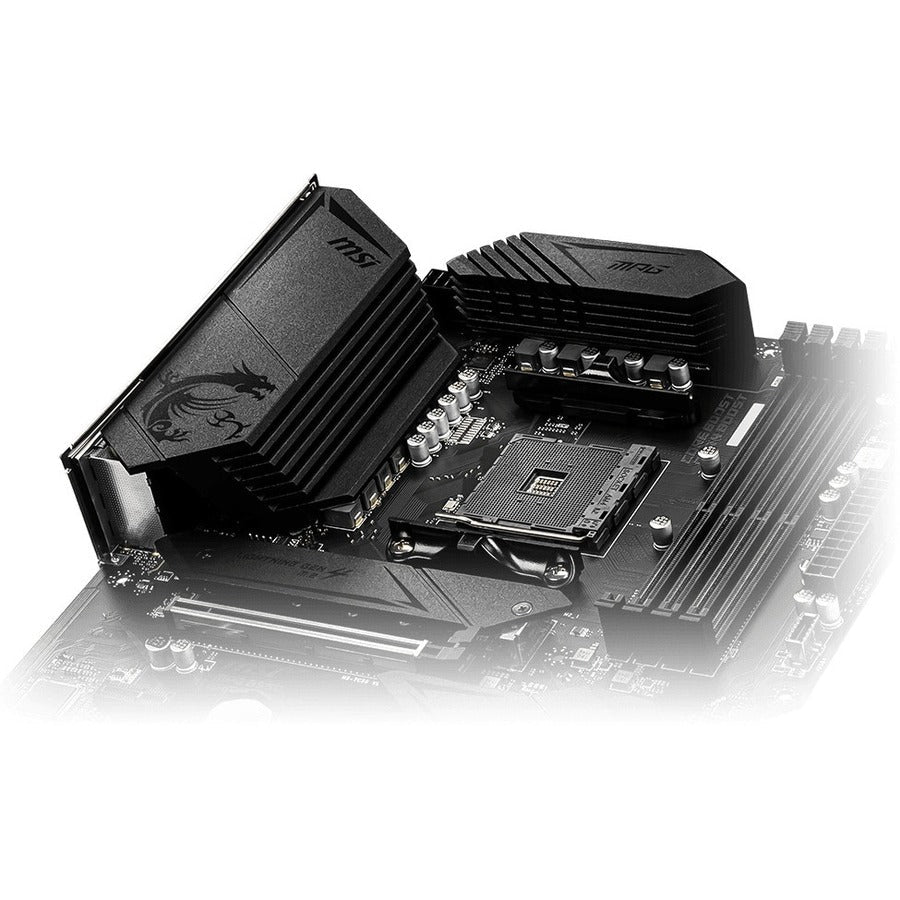

Features	Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update Supports DDR4 Memory, up to 4400(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2 Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience Pre-installed I/O Shielding: Better EMI protection and more convenience for installation Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions Audio Boost: Reward your ears with studio grade sound quality

General Information

Manufacturer	MSI
Manufacturer Part Number	MPG B550 GAMING PLUS
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	MPG
Product Model	B550 GAMING PLUS
Product Name	MPG B550 GAMING PLUS Desktop Motherboard
Product Type	Desktop Motherboard
UPC	824142218600

Chipset

Chipset Manufacturer	AMD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8

Width	12"
Depth	9.6"

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.
