Description
- Intel Z590
- Supports 11th / 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- Supports 1R 3200 / 2933 / 2666 / 2133 (11th Gen Intel CPU, by JEDEC & POR)
- Supports 1R 2933 / 2666 / 2133 (10th Gen Intel CPU, by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5600
- 1DPC 2R Max speed up to 4800+

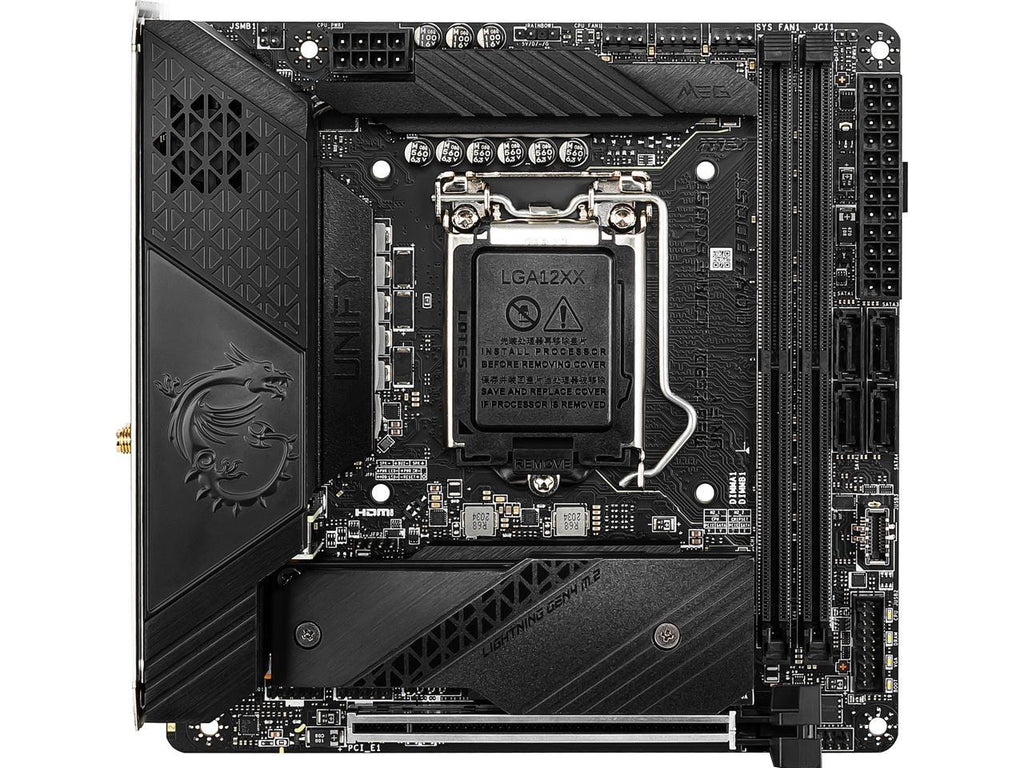

MEG Z590I UNIFY
OUTSTANDING COOLING SOLUTION
Frozr Heatsink Design with Zero Frozr Technology
An active cooling design is ready to spin up when the VRM is loaded with power.
M.2 Shield Frozr
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.
Aluminum Cover with 7W/mK Thermal Pad
All-metal extended heatsink IO cover enlarges the heat dissipation surface.
Heat-pipe
Connects the two MOS heatsinks to enlarge the heat dissipation surface.
MEG Z590I UNIFY
UNLIMITED CONNECTIVITY
Latest Wi-Fi 6E Solution
Featuring the latest wireless solution, delivering speeds up to 2400Mbps on the 6GHz spectrum and supports MU-MIMO and BSS color technology.
Dual Thunderbolt 4 ports
Connect Thunderbolt devices and displays via USB Type-C and transfer at speeds up to 40 Gb/s.
2.5G LAN
Onboard 2.5 Gigabit Ethernet LAN with LAN manager.
Twin M.2 Connectors
Two onboard M.2 connectors for high-speed storage performance.
MEG Z590I UNIFY
STABLE CORNERSTONE OF YOUR SYSTEM
10-Layer PCB Design
Multilayer printed circuit board design improves signal transmission for extreme performance capabilities across the motherboard.
PCIe Steel Armor
Reinforced and shielded PCIe slots for strength and stability.
ISL Digital PWM, Direct 8 Phases Design with 90A SPS
High quality components with ISL digital power, 90A Smart Power Stage and titanium choke III make sure the system runs smoothly under extreme conditions.
2oz Thickened Copper
An enhanced PCB material design improves heat dissipation and high-performance capabilities.
THERMAL SOLUTION FOR HIGH PERFORMANCE MULTI CORE PROCESSORS
MEG Z590I UNIFY features Aluminum Cover, Frozr Heatsink, Heat-pipe Design, 7W/mK thermal pads and MOSFET Baseplate keep temperatures in check and let the CPU power delivery system sustain extreme performance.
EXTREME POWER DESIGN
MEG Z590I UNIFY features INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage to unleash the true power of your processors.
ONBOARD THUNDERBOLT 4 PORTS
Two Thunderbolt 4 Type-C ports on UNIFY ITX each deliver unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices. Additionally, built in DisplayPort 1.4 output allows for compatible display devices to be attached.
- Maximum 8K display support
- Daisy Chain support
- Multi-Port Accessory Architecture
LIGHTNING GEN 4 SOLUTION
Strike fast with MSI Lightning Gen 4 PCI-E. Attach ultra fast PCI-E 4.0 devices and enjoy up to 64GB/s unidirectional transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications.
DUAL M.2 CONNECTORS
Two onboard M.2 connectors lets you use high-speed SSDs.
WI-FI 6E & BLUETOOTH
Connect to a high-speed Wi-Fi network with onboard Wi-Fi 6E. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.
MAXIMIUM DATA TRANSFER WITH 2.5G LAN
MEG Z590I UNIFY features onboard 2.5Gbps Ethernet LAN, for gamers and power users who demand high-bandwidth and low-latency network connectivity. Prioritize latency-sensitive applications with MSI LAN Manager for a superior online experience.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation and high-performance reliability.
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. The memory circuit layout has been optimized for reliability and tested extensively in partnership with major memory manufacturers for compatibility.
AMPLIFY YOUR GAME WITH AUDIO BOOST 4
Like a dedicated sound card, Audio Boost 4 offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
The PCI Express Steel Armor slot issecured to the motherboard with extra solder points and supports the weight of a heavy graphics card. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MEG Z590I UNIFY |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MEG |
| Product Model | Z590I UNIFY |
| Product Name | MEG Z590I UNIFY Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142241219 |
| Chipset Manufacturer | Intel |
|---|
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
|---|---|
| Bluetooth | Yes |
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Width | 6.7" |
|---|---|
| Depth | 6.7" |
