Description
- AMD B550
- Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
- * AMD B550 chipset is not compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G processors.
- Supports DDR4 4400+/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE
- Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ

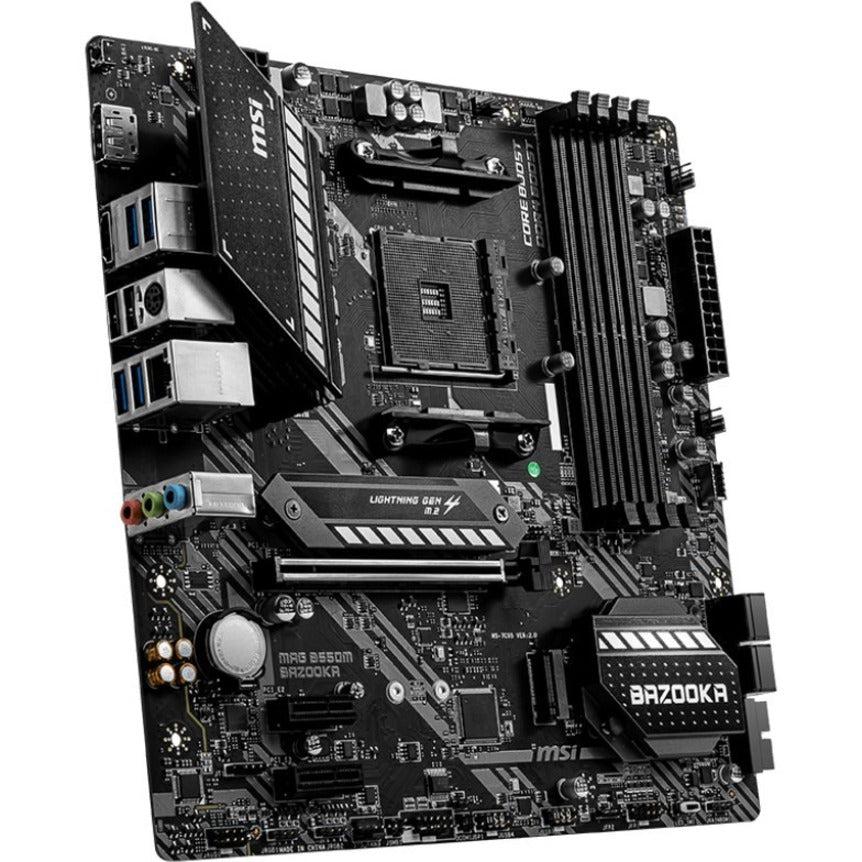

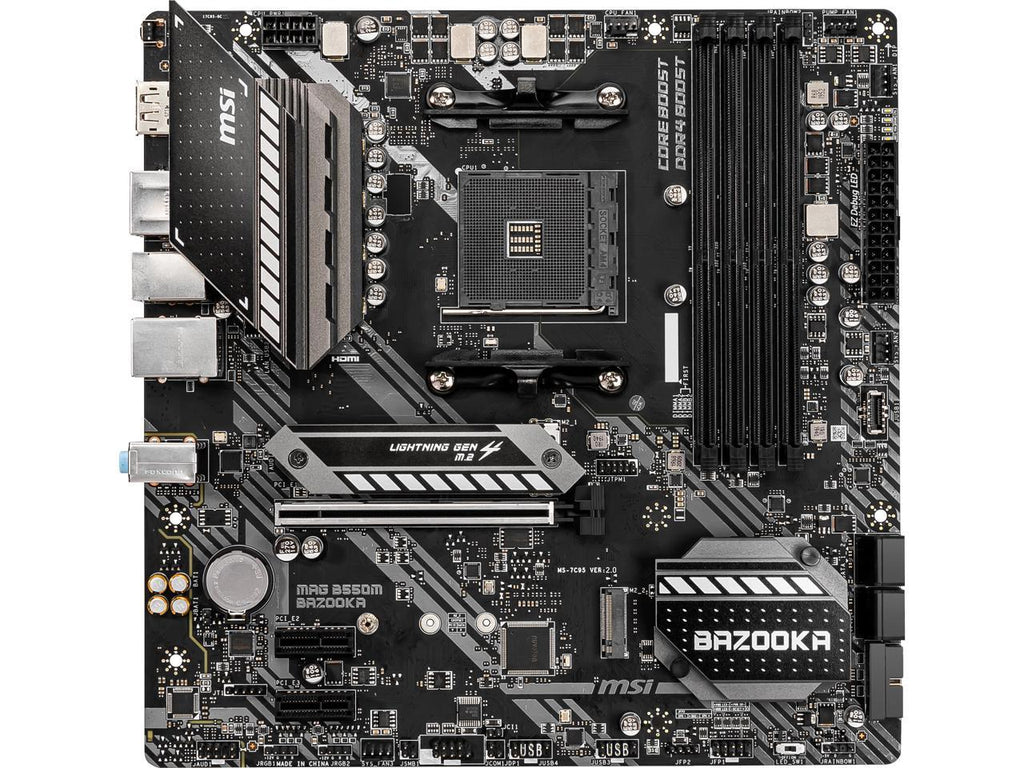

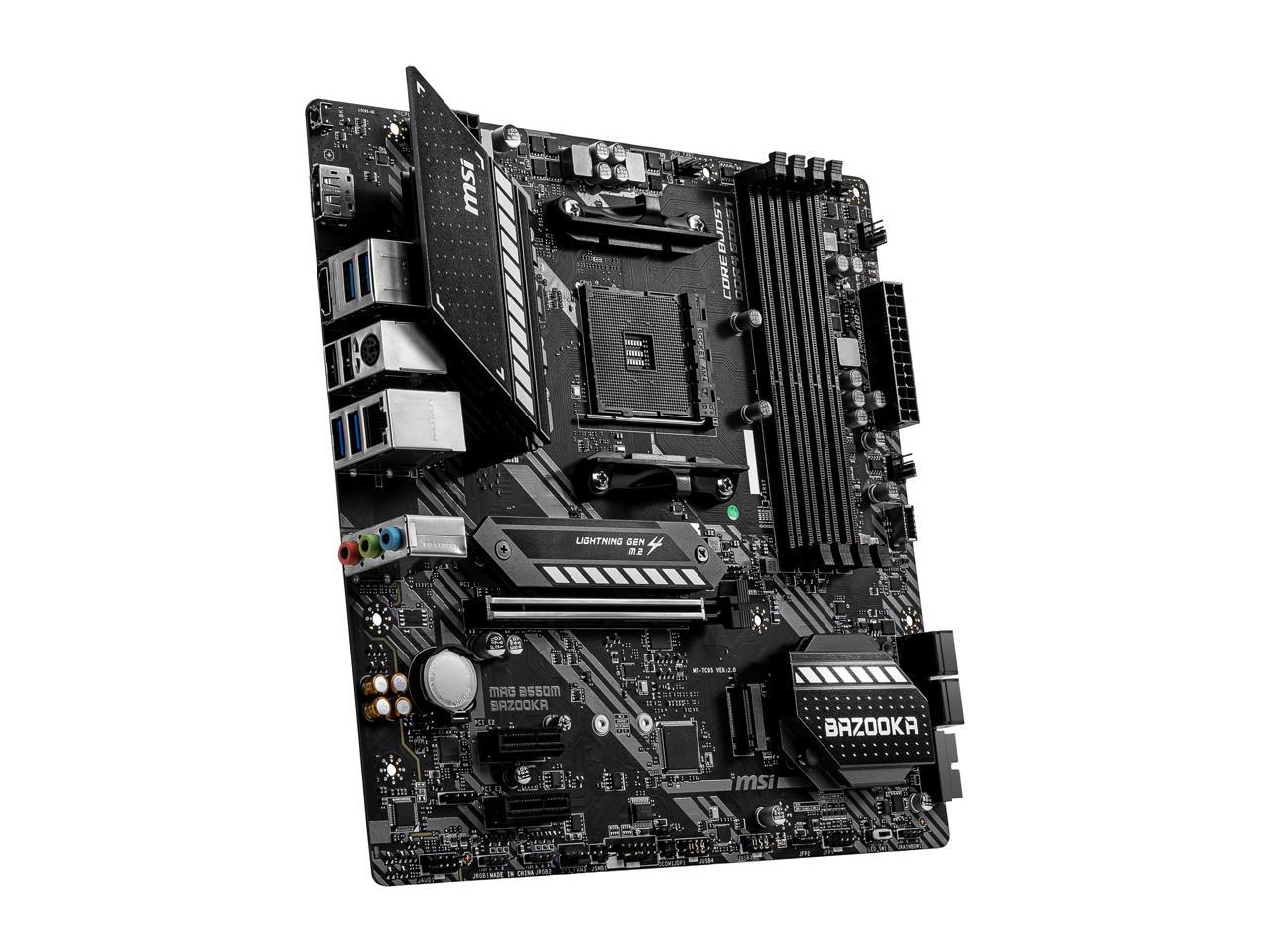

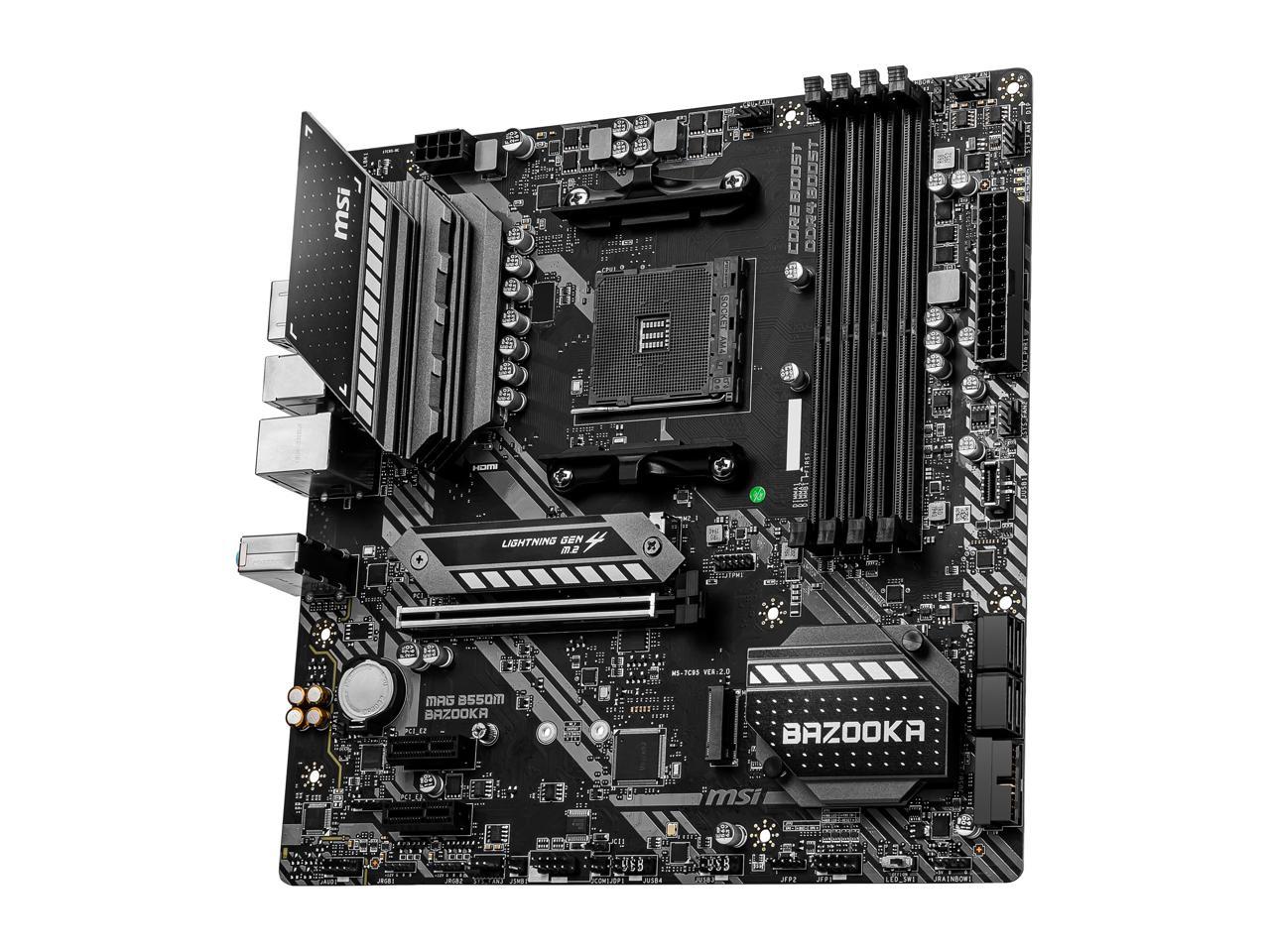

MAG B550M BAZOOKA AMD Motherboard by MSI is the cornerstone of your next powerhouse for gaming, multimedia and work. It supports 3rd Gen and future AMD Ryzen Processors and Lightning Gen 4 x4 M.2 SSD. When action heats up, it is ready to sustain smooth performance with Core Boost, DDR4 Boost and Audio Boost, as well as premium thermal solution. Quality components will never disappoint. With a host of DIY friendly features and a suite of utilities, MAG B550M BAZOOKA AMD Motherboard makes installation and tuning effortless.
Exclusive Feature
1. Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
2. 2oz Thickened Copper
2oz thickened copper PCB provides higher performance and long-lasting system stability without any compromise.
3. Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
4. PCIe Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Premium Thermal Solution
A. Extended Heatsink
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
B. M.2 Shield Frozr
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
C. Pump Fan Support
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
D. Heatsinks with 7W/mK Thermal Pad
Protecting VGA cards against bending and EMI for better performance, stability and strength.
High Speed Transmission
a. 4K Support

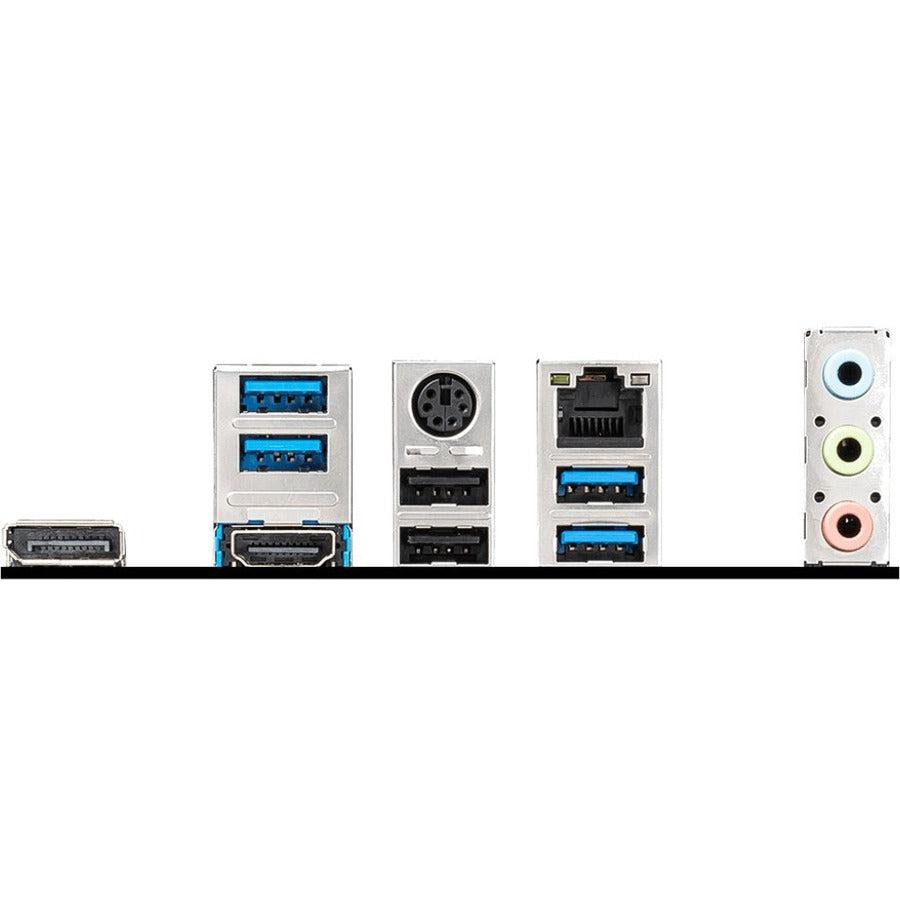

Onboard HDMI/DP support up to 4K UHD resolution.
b. Gigabit Network Solution
Featuring Gigabit LAN with LAN manager delivers better network experience.
c. DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
d. Lightning Gen 4 Solution
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
4 + 2 +1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power phases. Combining exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.
1-SECOND OVERCLOCKING!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
OVERVOLTAGE PROTECTION
Prevents potential short-circuit damage to the CPU and other critical components.
EASY BIOS RECOVERY WITH FLASH BIOS BUTTON
Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue gaming within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!
KEEP OUT ZONE
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard.
Please makes sure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
MORE USER FRIENDLY ENHANCEMENTS
XL CLIP
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
EZ LED CONTROL
A built-in LED button on the motherboard to control your light effect. Turn on/off your light in a second!
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
CERTIFIED FOR GAMING
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.
FAST AND FUTURE-READY STORAGE
MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.
DRAGON CENTER
MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
MSI APP PLAYER
Developed under an exclusive partnership with BlueStacks, the MSI APP Player brings seamless gaming experience between mobile games and PC platform, and leverages customized features as specific keyboard lighting and better graphics with multi-task works.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound.
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HIGH QUALITY AUDIO JACKS
Keep your sound perfect by transmit your audio with pure digital signal.
ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.
DE-POP PROTECTION
Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Build up a system with MSI PC case to have the most convenient experience.
General Information
| Manufacturer | MSI |
|---|---|
| Manufacturer Part Number | MAG B550M BAZOOKA |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | B550M BAZOOKA |
| Product Name | MAG B550M BAZOOKA Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 824142219386 |
| Chipset Manufacturer | AMD |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |

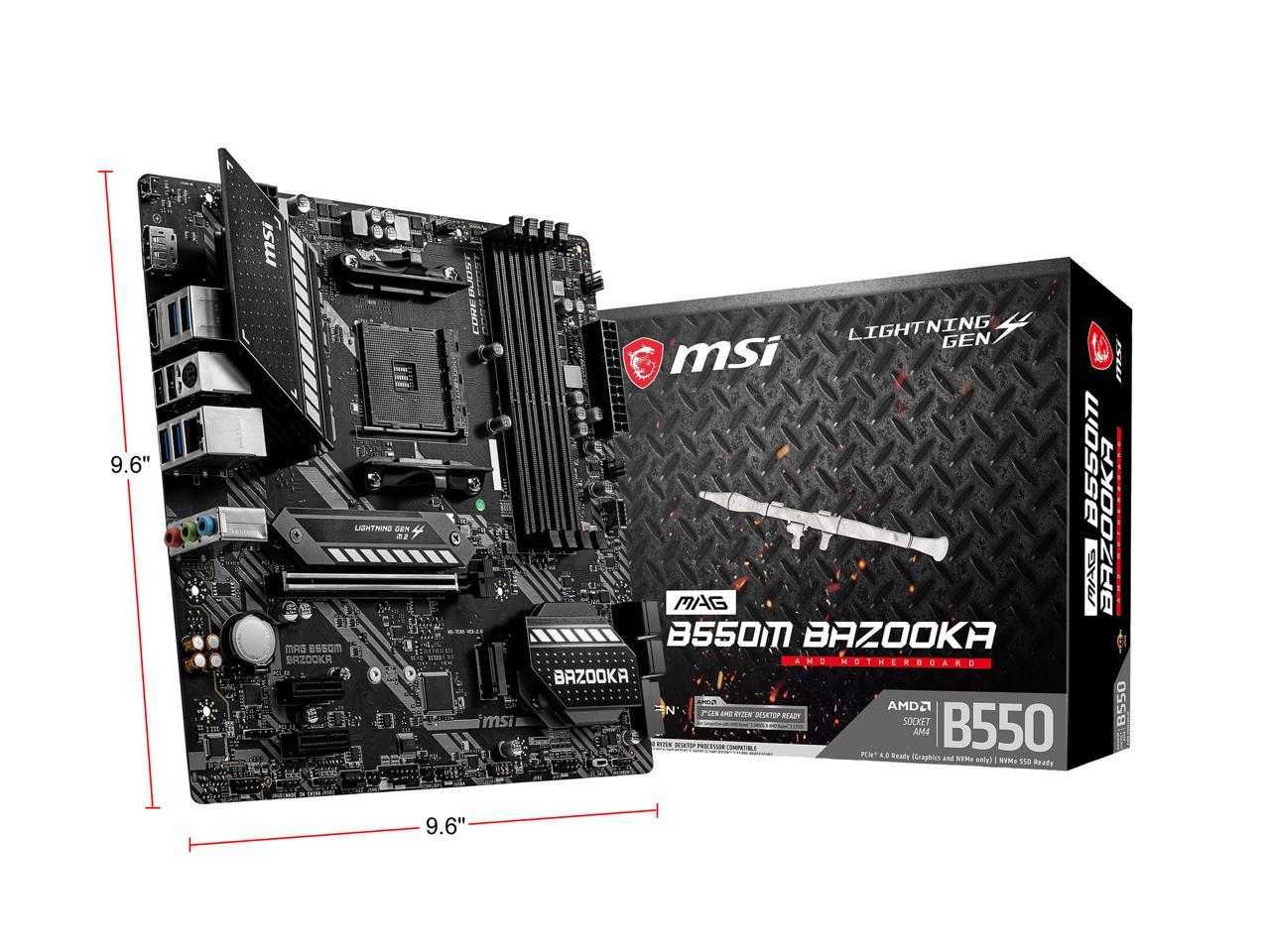

| Width | 9.6" |
|---|---|
| Depth | 9.6" |
