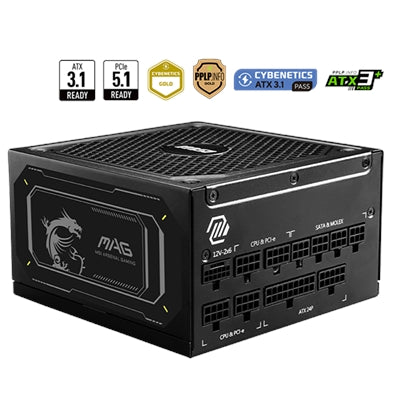

MSI MAG A1000GL PCIE5 II 1000W Fully Modular Power Supply
The MSI MAG A1000GL PCIE5 II is a premium 1000W fully modular ATX power supply engineered for high-performance gaming and workstation builds. Featuring a native dual-color PCIe CEM 5.1 16-pin connector, this unit delivers reliable power to NVIDIA GeForce RTX 40 and RTX 50 series graphics cards with exceptional efficiency. Built with 80 PLUS Gold certification, it combines modular cable management with advanced protection circuitry to ensure stable, clean power delivery for demanding systems.
Key Features
- 1000W capacity with fully modular cable design for flexible system builds
- Native dual-color PCIe CEM 5.1 16-pin connector for next-gen graphics cards
- 80 PLUS Gold efficiency rating for reduced power consumption and heat
- Active PFC (Power Factor Correction) for improved electrical efficiency
- 135mm fluid dynamic bearing fan for quiet, reliable cooling
- LLC half bridge topology with DC-to-DC module design for stable voltage regulation
- Comprehensive protection: OVP, OCP, OPP, OTP, SCP, and UVP circuits
- ATX 3.1 compliant for compatibility with latest motherboards and components
Technical Specifications
| Manufacturer |
MSI |
| Model |
MAG A1000GL PCIE5 II |
| Part Number |
MAGA1000GLPCIE5II |
| Power Output |
1000W |
| Form Factor |
ATX 3.1 |
| Efficiency Rating |
80 PLUS Gold |
| PCIe Connector |
Native PCIe CEM 5.1 16-pin (dual-color) |
| Cable Type |
Fully Modular |
| Fan Size |
135mm Fluid Dynamic Bearing |
| Topology |
LLC Half Bridge with DC-to-DC Module |
| Protection Features |
OVP, OCP, OPP, OTP, SCP, UVP |
| Warranty |
Manufacturer Standard |
Frequently Asked Questions
Is the MSI MAG A1000GL PCIE5 II compatible with RTX 40 and RTX 50 series graphics cards?
Yes, the native PCIe CEM 5.1 16-pin connector is specifically designed to support NVIDIA GeForce RTX 40 and RTX 50 series graphics cards, providing stable power delivery for high-performance gaming and professional applications.
What does 80 PLUS Gold certification mean for power efficiency?
80 PLUS Gold certification guarantees at least 90% efficiency at 50% load, reducing wasted energy as heat and lowering your electricity costs while keeping your system cooler and quieter.
Why is a fully modular power supply better than semi-modular?
Fully modular cables connect only to components you use, eliminating cable clutter, improving airflow, and making system builds and upgrades significantly easier compared to semi-modular designs.
What protection does the MSI MAG A1000GL PCIE5 II provide?
The unit includes comprehensive protection circuits: OVP (overvoltage), OCP (overcurrent), OPP (overpower), OTP (overtemperature), SCP (short circuit), and UVP (undervoltage) to safeguard your components from electrical faults.
