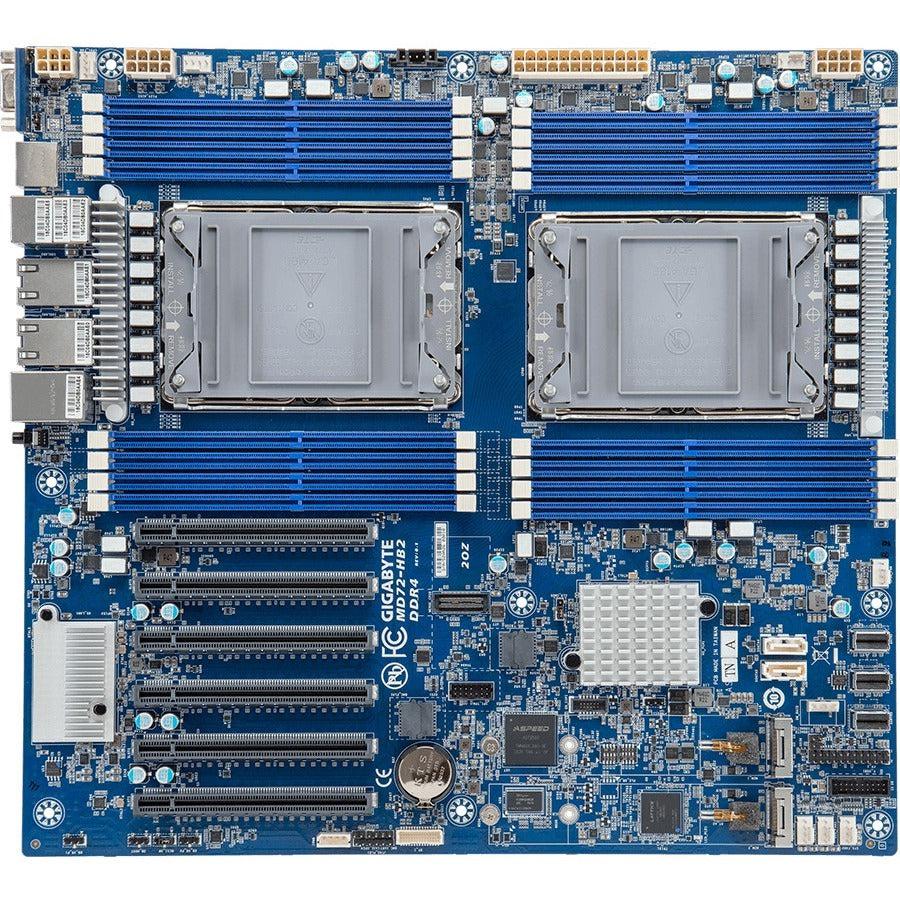

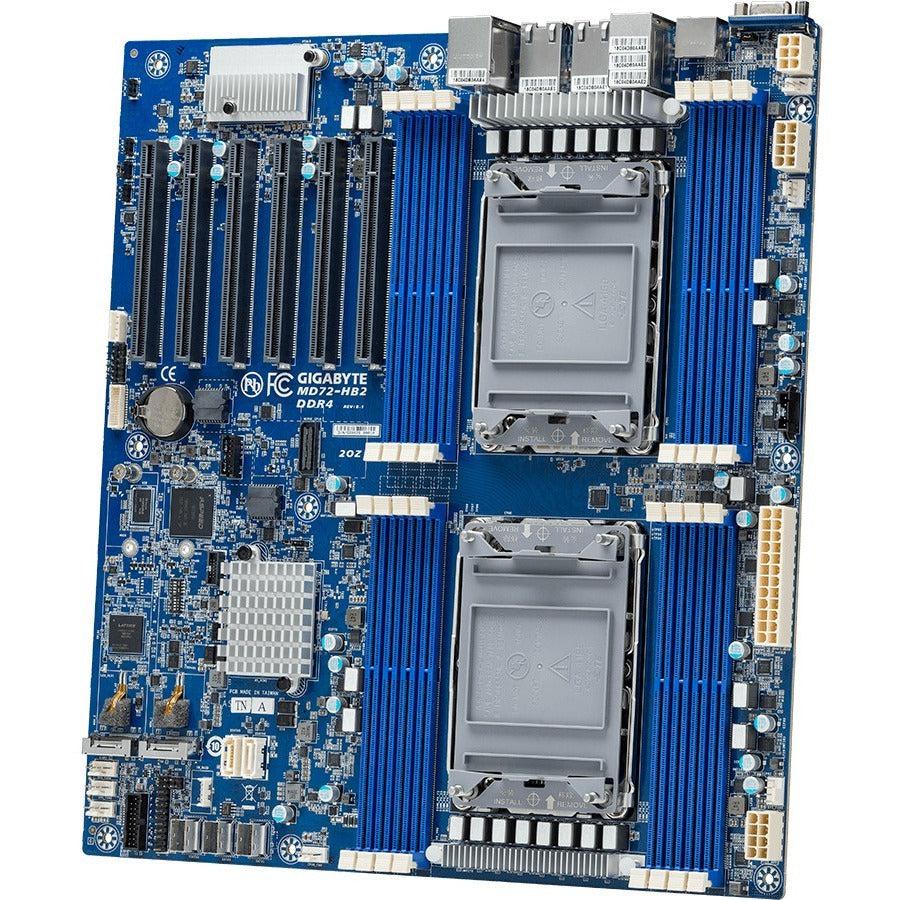

Gigabyte MD72-HB2 Server Motherboard - Intel C621A Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX

Gigabyte MD72-HB2 Server Motherboard - Intel C621A Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX

Where Compute Reigns | 3rd Gen Intel® Xeon® Scalable Processors - "Ice Lake"

GIGABYTE servers and Intel Xeon Scalable Processors deliver incredible 1P/2P performance from edge to data center with incredible gains in I/O throughput and workload demands that need high performing CPUs with large, yet optimized, memory configurations.

•
  Enhanced I/0: Support for PCIe 4.0 allows for double the throughput of PCIe 3.0 for fast and large data transfers. Also, 64 lanes per socket with up to 128 lanes in a 2P configuration for fast data transmission from CPU to GPU, accelerator or storage.
•
  CPU Performance Boost: Now up to 40 cores per socket with greatly improved IPC on Intel's 10nm architecture while operating CPUs at 105-270W. Also, an additional UPI lane is added for up to 11.2GT/s for a low latency interconnect between CPUs.
•
  Next Gen Memory: Each processor provides eight memory channels to support 8 or 16 DIMM slots with up to DDR4-3200. There are two sub-clustering modes, Sub NUMA (SNC) and Hemisphere (HEMI), available using balanced memory that results in performance improvements. Additionally, support for Intel Optane PMem 200 series provides two modes for greater memory capacity and data persistence to process large amounts of data faster.
•
  Next Level Security: New instructions and architecture deliver a high level of cryptographic operations for data privacy and protection. Cryptographic accelerators speed up encryption protocols as well as improvements in software guard extensions and memory encryption are added.
•
  AI Acceleration: AI inference and training are enhanced with DL Boost Technology for greater business, operational, and security insights. Applications include HPC, AI, and Media & Graphics.

Why GIGABYTE MD72-HB2 | Accelerator Computing | 3 dual-slot GPU supported in compact MB

Parallel processing with multiple GPUs are driving discoveries and powering AI and data analytics. Offering support for dual slot GPUs allows for the highest, dense GPU compute possible. Delivering the fastest throughput for data, PCIe Gen 4 lanes are all in x16 mode for a total bandwidth of 64GB/s per GPU.

Flexibility | Special one socket usage for early stage testing

For those that need to be able to adjust to new needs, GIGABYTE servers have incorporated a high level of flexibility. Scalable CPU usage allowing populating only one socket while maintaining function of 2 dual slot GPUs and all storage.

• 3rd Gen. Intel® Xeon® Scalable Processors


• 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs


• Supports Intel® Optane™ Persistent Memory 200 series


• Intel® C621A Express Chipset


• 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)


• 2 x 1Gb/s LAN ports (Intel® I210-AT)


• 1 x Dedicated management port


• 2 x 7-pin SATA 6Gb/s ports


• 3 x SlimSAS with 12 x SATA 6Gb/s ports


• 2 x Ultra-Fast M.2 with PCIe Gen4 x4 interface

Product Type: Server Motherboard
Environmentally Friendly: Yes
Country Of Origin: Taiwan
Brand Name: Gigabyte
Form Factor: Extended ATX
Manufacturer: GIGABYTE Technology, Inc
Product Model: MD72-HB2
Product Name: MD72-HB2 (rev. 1.x) Server Motherboard
Manufacturer Part Number: MD72-HB2
Manufacturer Website Address: http://www.gigabyte.us
Package Contents:

• MD72-HB2 (rev. 1.x) Server Motherboard
• I/O Shield
• SlimSAS for 4 x SATAIII 6Gb/s Cable
