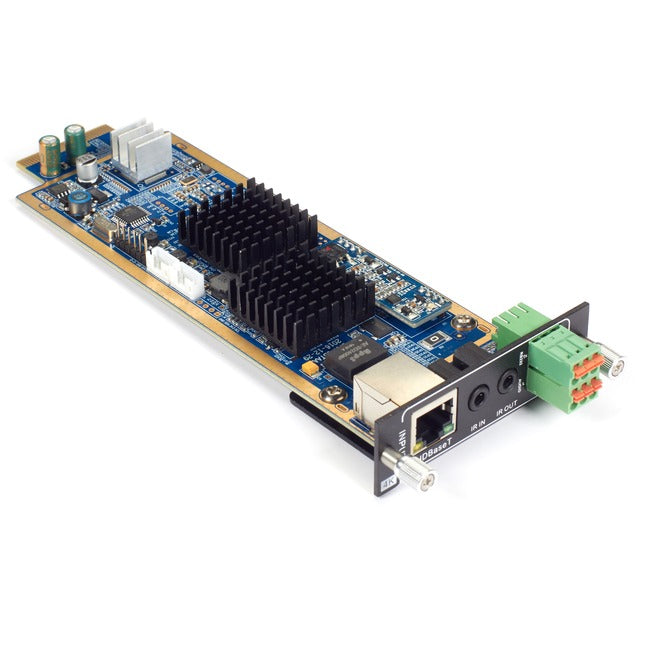

Black Box Modular Matrix Switcher Video Input Card CATx 4K Audio IR
These are Single 4K seamless HDB I/O signal cards
- Adaptive HDCP input and supports HDCP 22, the output signal supports HDCP 14
- Yellow LED blinks once powered on; green LED lights when the port is connected to CATx devices
- CATx port supports PoE
- Input audio source selectable via command or GUI, including HDMI embedded audio (default), and external analog audio
- The default output resolution is 4K 2K @ 30 Hz and it can be adjusted via commands or GUI, supports 4K 2K @ 60 Hz, 1024 768 @ 60 Hz, 1920 1080p @ 60 Hz, 1280 720 @ 60 Hz
Product Type: CATx Input Board
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Modular Matrix Switcher Video Input Card CATx 4K Audio IR
Product Line: Modular
Application/Usage: Matrix Switcher
Manufacturer Part Number: AVS-HDB-4KI
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 2 Year
Weight (Approximate): 3.47 oz
