Minuteman EXR Series Line Interactive Uninterruptible Power Supply
Backup Versatility Redefined: Line Interactive Technology with True-sinewave output
The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!
The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.
EXR® Key Features
Key Features Include:
-
0.9 power factor - increased capacity without migrating to larger models -
NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses -
UPS configuration options via front panel - make key adjustments utilizing the front panel LCD -
Load shedding - two power banks allow equipment prioritizing for increased runtime -
Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead. -
Auto-recognition of external battery packs - automatically recalculate runtimes -
Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand -
Flexible installation - rack or tower configurable; wall mount kits available - Simultaneous USB, RS232, and SNMP communications
-
Minuteman® SentryHD™ - UPS monitoring and control software included -
Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries) - Dedicated remote Emergency Power Off (EPO) port
-
120V & 208V - 208V models available (1500 & 3000VA models) -
cULus certification - NOM certification (Mexico) - RoHS 2 compliant
- Energy Star 2.0 certification

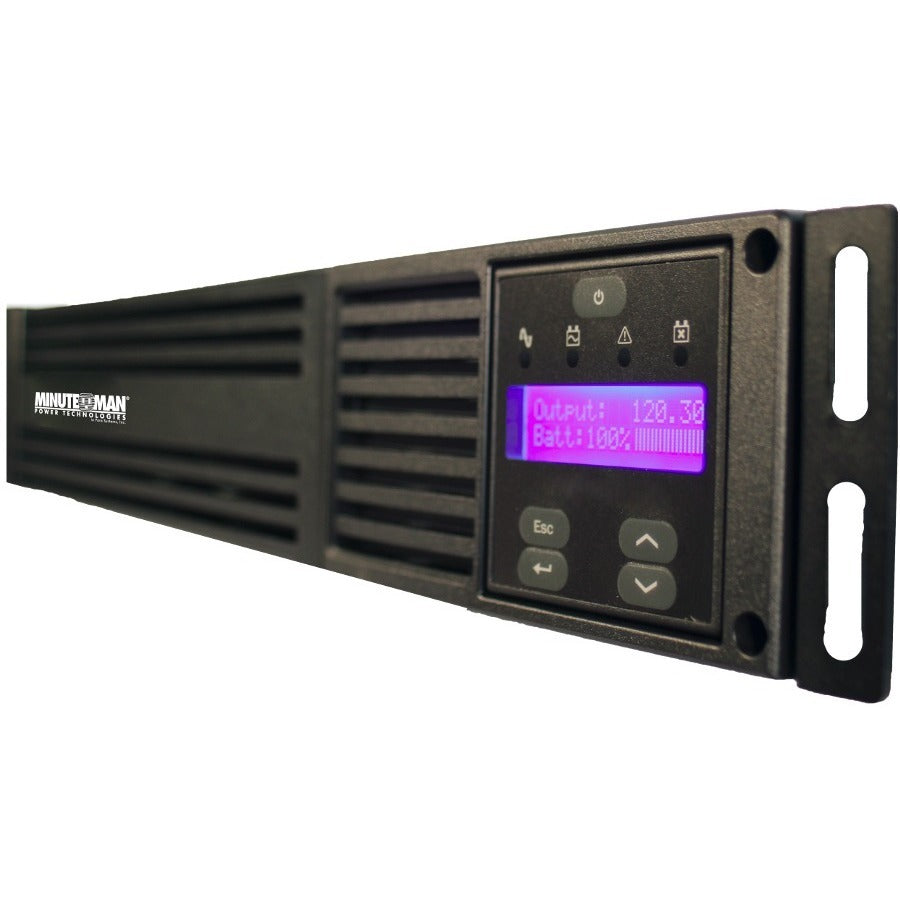

Front LCD Panel
The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:
- Input and Output Voltage
- Estimated runtime
- UPS Operating Mode
- UPS Self-test results
- Battery Condition
- Display model and serial number
- View load bank status and capacities
- Display battery module part number
- Replace Error Codes with descriptions
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 7 minute at full load
Product Type: Line-interactive UPS
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 2.0
Energy Star: Yes
Product Series: EXR
Rack Height: 2U
Brand Name: Minuteman
Form Factor: Tower/Rack/Wall Mountable
Manufacturer: Para Systems, Inc
Product Model: EXR750RT2U
Product Name: EXR Series Line Interactive Uninterruptible Power Supply
Manufacturer Part Number: EXR750RT2U
Manufacturer Website Address: http://www.minutemanups.com
Limited Warranty: 3 Year
Weight (Approximate): 41.70 lb
